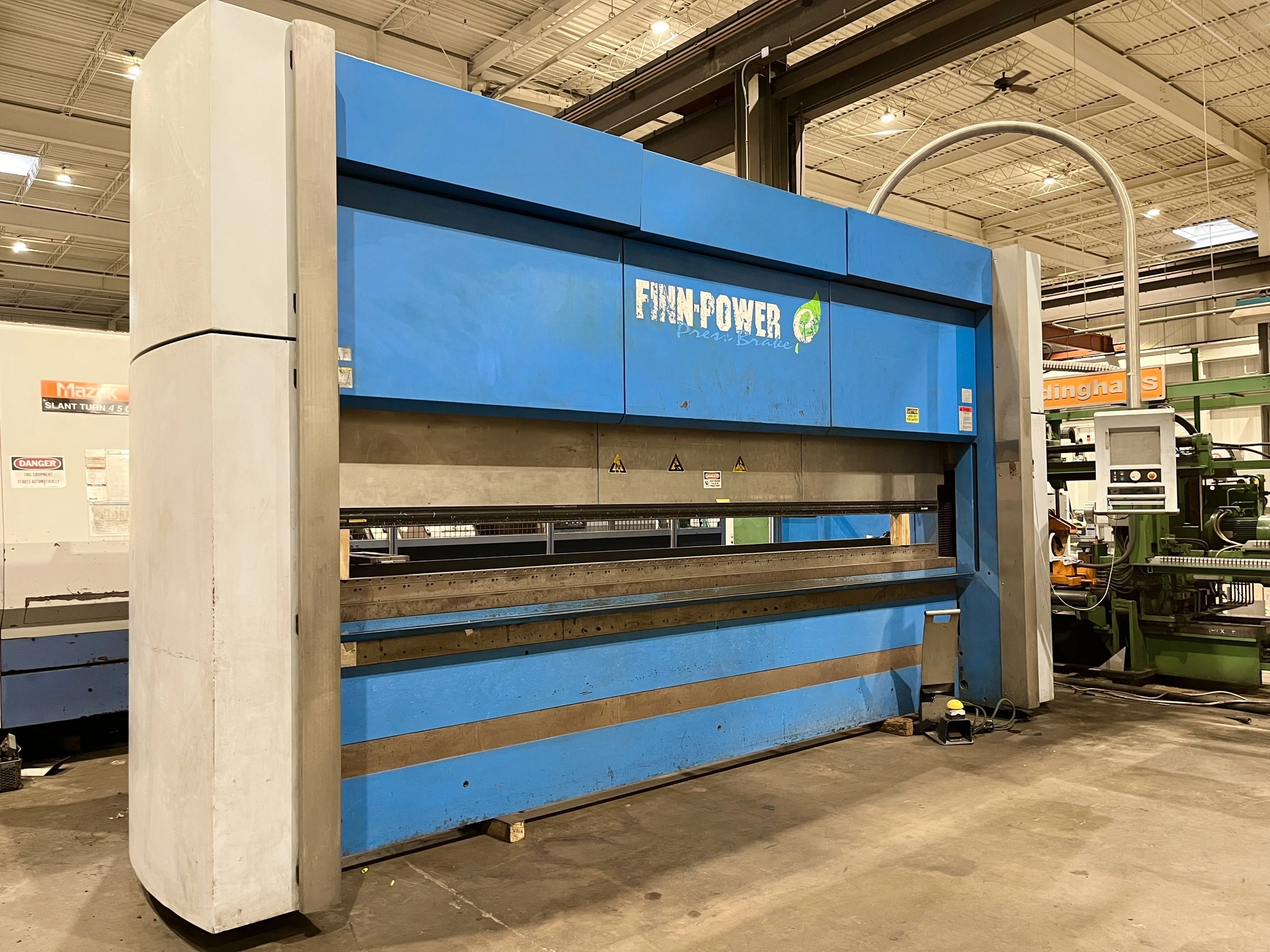

USED 2007 FINN POWER 200-4100 TS 3 F
Overview
Description
200 Ton, 4 axis, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1), Windows Based Controls, Hydraulic Clamping
Specifications
| size | 200 Ton x 14' | 200 Ton x 14' |
|---|---|---|
| Tonnage | 200 T | 181.437 t |
| Type | ELE | ELE |
| Overall Length | 161" | 4.1 m |
| Between Housings | 144" | 3.7 m |
| Stroke | 11.8" | 299.72 mm |
| # Axis | 4 | 4 |
| Control | CNC (Finn Power) | CNC (Finn Power) |
| Dimensions | 81” x 210” x 115” | 81” x 210” x 115” |
| Weight | 37000 | 37000 |
Finn-Power 200-4100 TS 3 F CNC Press Brake (2007)
Tonnage 200 T
Type ELE
Overall Length 161"
Between Housings 144"
Stroke 11.81"
Approach Speed 77MM/SEC
Bending Speed 10MM/SEC
# Axis 4
Equipped With
Windows Based Controls, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1), Hydraulic Clamping
The TS3 control has 2D and 3D programming capability. The bending order can be graphically programmed at the press brake along with all program preparation. A keyboard is included in the optional TS3 control for easy alpha-numeric input. This is a good combination with DELEM Vbend offline programming software.
Upper ram is set up for American style WILA dies.
