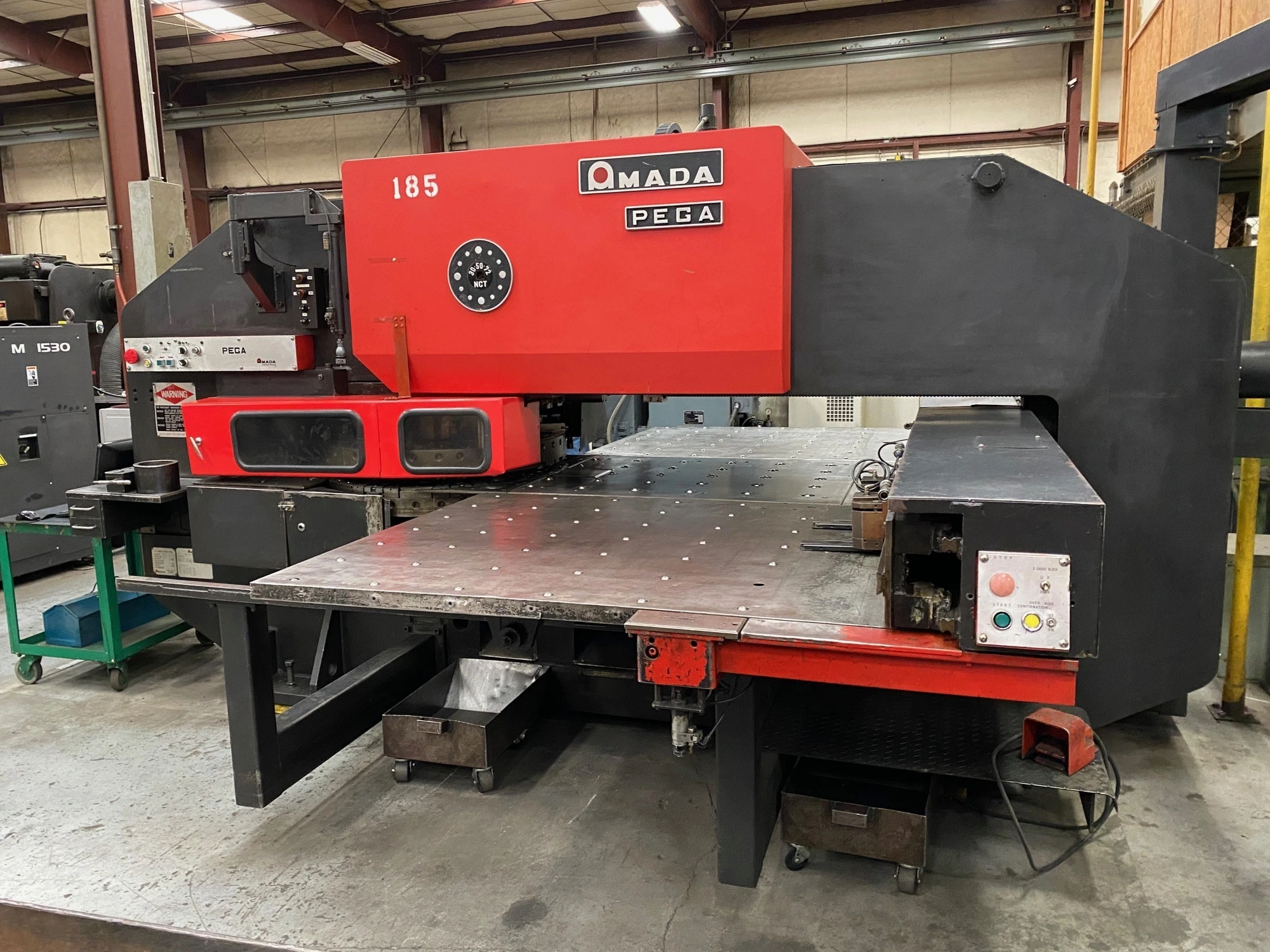

USED 1987 AMADA PEGA 357

Amada Pega 357 30 Ton CNC Turret Punch

Capacity: 30 Ton
Maximum Traverse: 50” X 72”
Maximum Sheet Size (With Repositioning): 50” X 144”
Maximum Punching Capacity (Mild Steel) : ¼”
Maximum Hits Per Minute : 350
Maximum Sheet Weight : 220 LBS
Maximum Positioning Speed : 2,795″ PER MINUTE
Total Tool Stations In Turret : 58
Turret Configuration: H-Type Thick Turret
36 @ 1/2″ DIA
12 @ 1-1/4″ DIA.
4  @ 2″ DIA.
2 @ 3-1/2″ DIA.
2 @ 4-1/2′ DIA.
2 @ AUTO ÍNDEX (1-1/4″ DIA.)
Auto Index Configuration
Angular Increment :                                            0.01 Degree
Maximum Nibbling Angle :                                     8 Degree
Indexing Station Drive :                                       Bi-Directional Rotation
Index Drive Type:                                              Ac Servo Drive
Index RPM:                                                     60 RPM
Turret Index Speed :                                           30 RPM
Air Requirement :                                              80 PSI
Main Motor Horsepower :                                        5.5 KW

Fanuc 6M

This machine has an X axis motor issue. We had the motor rebuilt but hasn’t cured the problem. We think that it is still the motor, but we have no way to test it properly.
