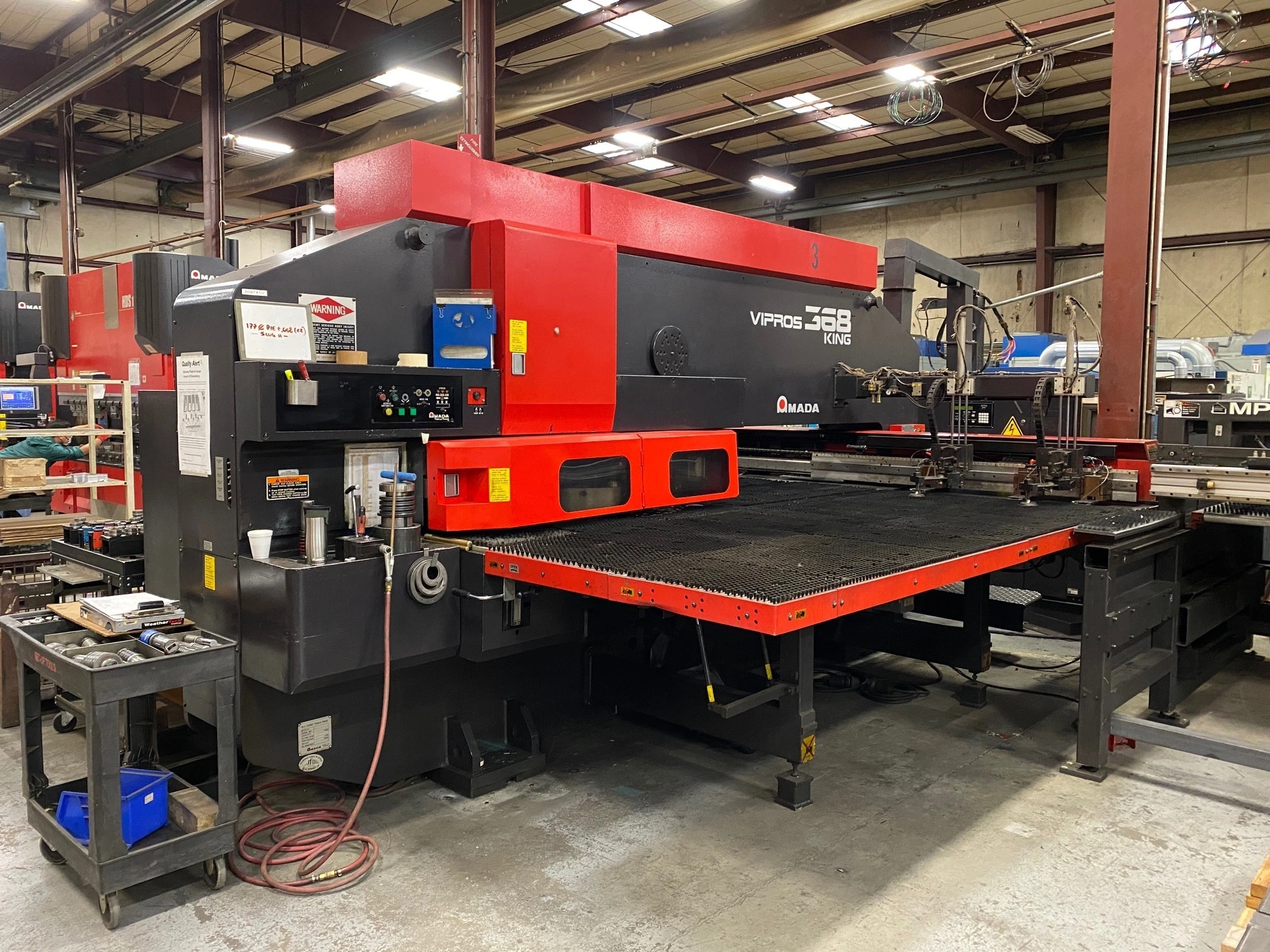

USED 1998 AMADA VIPROS 368 KING

Amada Vipros 368 King CNC Turret Punch

Amada Vipros 368 King CNC Turret Punch

Maximum Sheet Size: 60″ (Y) x 157.50″ (X) with one repositioning cycle
Maximum Axis Travel: 60″ (Y) x 78.74″ (X)
Max. Linear Table Speed: 3150″ per min.
Punching Accuracy: +/-0.004″ Hole to Hole
Maximum Sheet Thickness: 0.125″
Maximum Material Weight: 132 lb.
Repeatability: +/-0.001″
Press Capacity: 33 Tons
Press Stroke: 1.575″

Stroke Rate (X/Y)
Pitch Stroke Stroke Rate
1″ 0.315″ 340/290
1″ 0.118″ 460/360
0.315″ 0.315″ 410/380
0.315″ 0.118″ 580/515
0.079″ 0.118″ 810/700

Maximum Hole Diameter: 4.5″
Tool Type: Amada Thick Turret
Turret Rotation Speed: 30 RPM
Turret Capacity: 58 Stations (4 auto-index)
Control: Fanuc 18 (with PHNC)
Control Function: X, Y, T & C
Input Method: MDI, Floppy Disk Drive, RS-232
Minimum Command Unit: 0.001″ (X, Y)
Minimum Travel Unit: 0.001″ (X, Y)
Operating Modes: Automatic, MDI & Manual
Display Modes: Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics
Interlock Displays: Oil Temperature, Door Open

Amadan 04PC CNC
