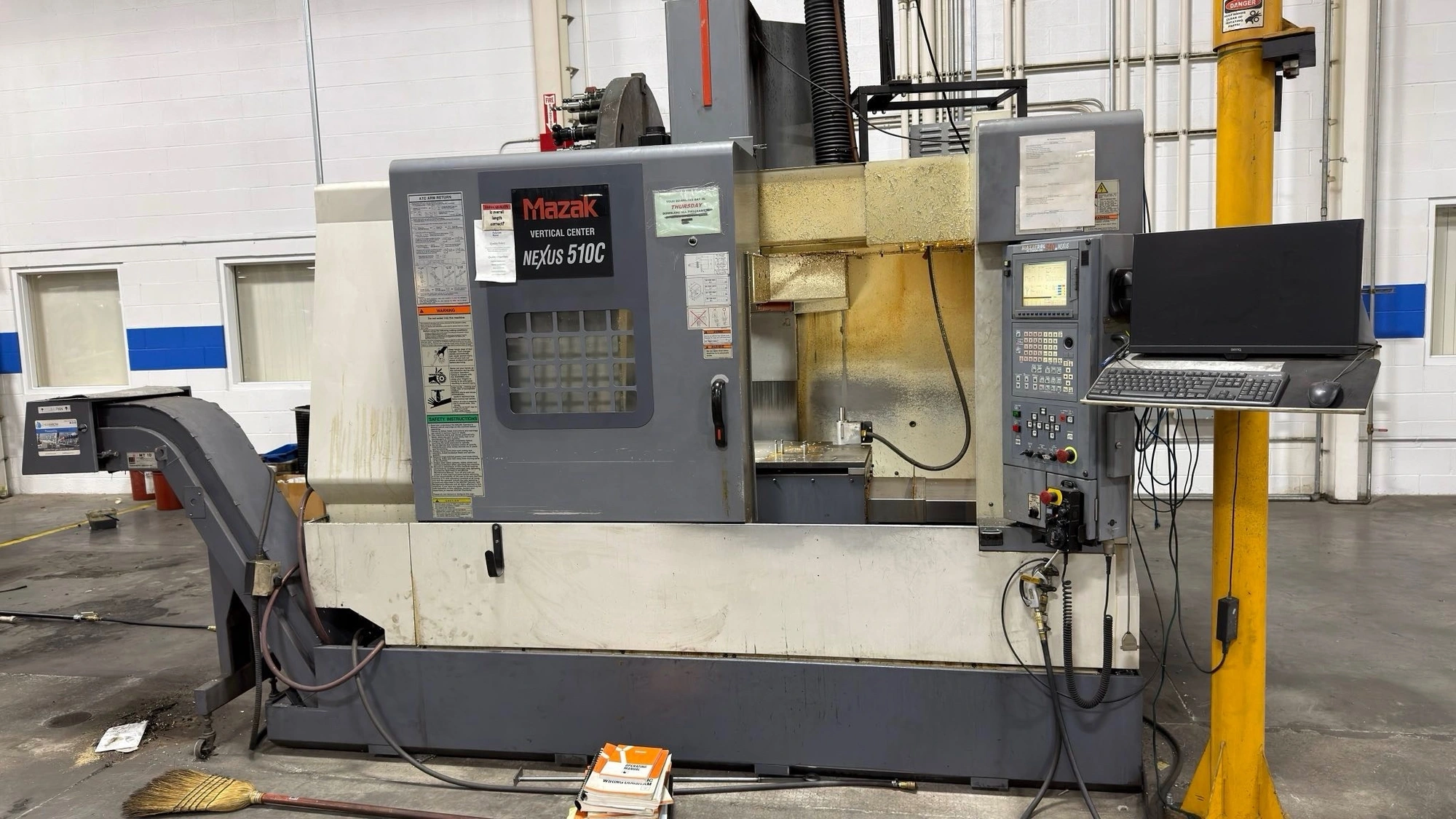

2003 MAZAK VERTICAL CENTER NEXUS 510C for sale. Features CNC control, 41.3" X-axis, 20.8" Y-axis, 25 hp motor, and 30-tool ATC. Equipped with MAZATROL FUSION 640M, coolant thru, chip conveyor, and more.
| X | 41.3" | 1,049 mm |
| Y | 20.8" | 528.32 mm |
| Z | 20.8" | 528.32 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 21.6" | 548.64 mm |
| Table-L | 51" | 1,295.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Fusion) | CNC (Mazatrol Fusion) |
WEIGHT ON TABLE 2,640 lb
SPINDLE NOSE TO TABLE TOP 5.9 ~ 25.98
RAPID TRAVERSE RATE - X 1,417 in/min.
RAPID TRAVERSE RATE - Y 1,417 in/min.
RAPID TRAVERSE RATE - Z 1,417 in/min.
SPINDLE SPEED 12,000 RPM
SPINDLE TAPER 40 CT
NUMBER OF GEAR RANGES 0
MAIN MOTOR 25 hp
VERTICAL TURNING TABLE SIZE, NUMBER OF TABLES 0"
AUTOMATIC TOOL CHANGER 30
TOOL DIAMETER 3.15, 4.92
TOOL LENGTH 13.78"
TOOL WEIGHT 17.6 lb
MACHINE WEIGHT 15,180 lb
CONTROL CNC (FUSION 640)
MAZATROL FUSION 640M CNC COLOR CONVERSATIONAL CONTROL
COOLANT THRU
SYNCHRONIZED TAPPING
NAVIGATION
MAZATROL HELICAL
MAZATROL CO-OR SHIFT
MAZATROL PLANET TAP
AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
MIST COLLECT SYSTEM
