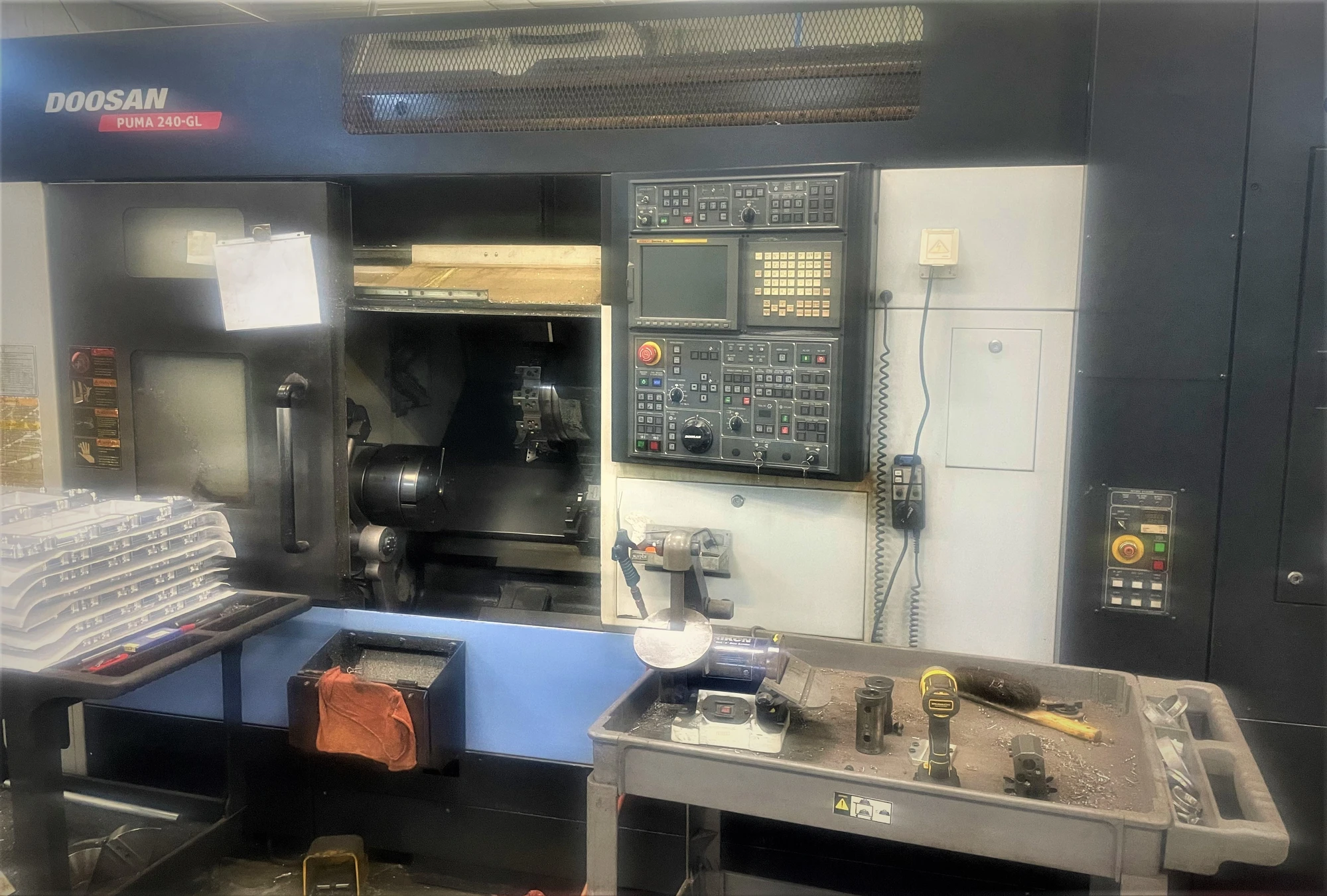

DOOSAN PUMA 240GL CNC Lathe With Gantry Loader
| size | 8" Chuck | 8" Chuck |
| Swing | 21" | 533.4 mm |
| Machining Length | 21.8" | 553.72 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.68" | 68.072 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Control | CNC (Fanuc 21iTB) | CNC (Fanuc 21iTB) |
Doosan Daewoo Puma 240-GL CNC Lathe
Specifications:
Swing Over Bed 21.7″
Swing Over Carriage 15.4”
Max Turing Diameter 13.8”
Max Turing Length 21.6”
Spindle Speed 45 – 4500 RPM
Draw Tube ID 2.6”
Spindle Bore 2.99”
Spindle Motor (30 Min) 25 HP
Max Spindle Torque 21iTB@227 ft-lbs
X-Axis Travel 9.5”
Z-Axis Travel 22.8”
Angle of Slant Bed 45 Degrees
Rapid Traverse Rate X / Z 945 IPM / 1200 IPM
Number of Tools 12
Machine Weight 9,470 lbs (21iTB) /
Floor Space 124” x 63” (21iTB) /
GL capacities:
Weight: max. 22 lbs
Work Length: max 5.9” min .6”
Work OD: max. 8.2” min. 2”
OD clamping Dia.: max. 8.2” min. 2” ID clamping Dia.: max 7.8” min. 2.”
Equipped With:
Fanuc Series 21iTB
Tool Presetter
8” 3-Jaw Hydraulic Chuck
Rear Discharge Chip Conveyor
Parts Catcher
