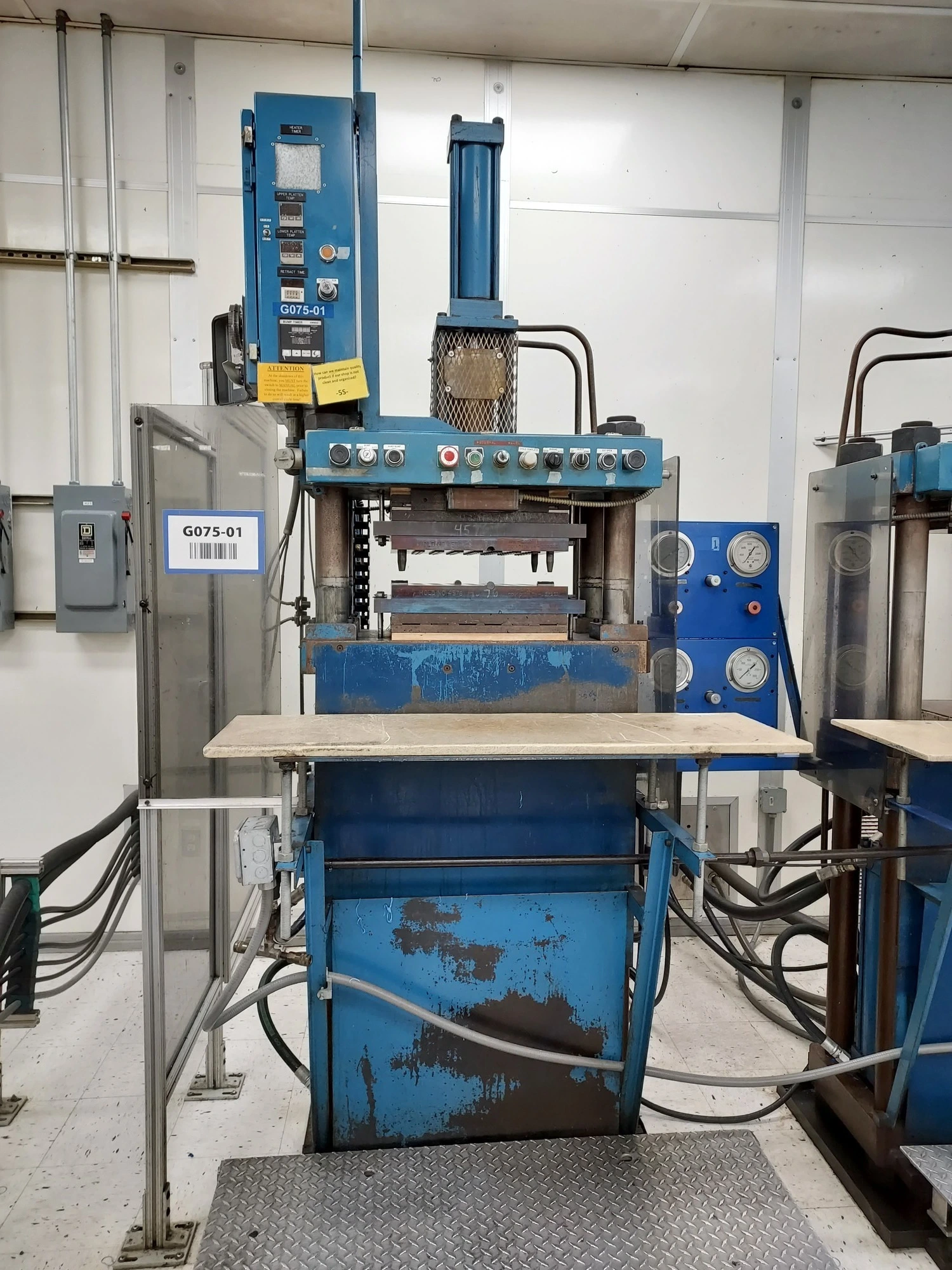

Aide 75 Ton Hydraulic Transfer Press Cell
| size | 75 Ton | 75 Ton |
Aide 75 Ton Hydraulic Transfer Press Cell
(2) Press Cell sharing the hydraulic system. can be purchased as a cell or a single unit. Currently set up they can be operated as a cell or independently.
Platen Size: 16" x 16"
Daylight: 20"
Clamping Stroke: 18"
Clamping Pressure: 75 Ton
Stroke: 12"
Transfer Pressure: 12.5 Ton
Top Platen Heat: 4500W, 240v
Bottom Platen Heat: 4500W, 240v
Individual Platen Heat Controls
Cure Timer Control: 0-999 sec
Bump Timer, 0-10 bumps
Bump Timer, 0-99 sec
Cycle Start, (2) push buttons, anti-tie-down
Manual Single Cycle Ram, Close/Open
Manual Single Transfer Cycle Stroke
Auto Cycle With Auto Ram Opening
Auto Cycle With Manual Ram Opening
Flashing Signal Light For Cycle Completion
Flow Control For Transfer / Inject Cylinder to Regulate Injection Speed
Transfer Pot Volume - 50 Cubic Inch
Two Hydraulic Power Supplies, 2000 PSI, 230/460/30
With Separate Valve Banks For Each Press, Two Presses Per Power Supply Operable Independently
