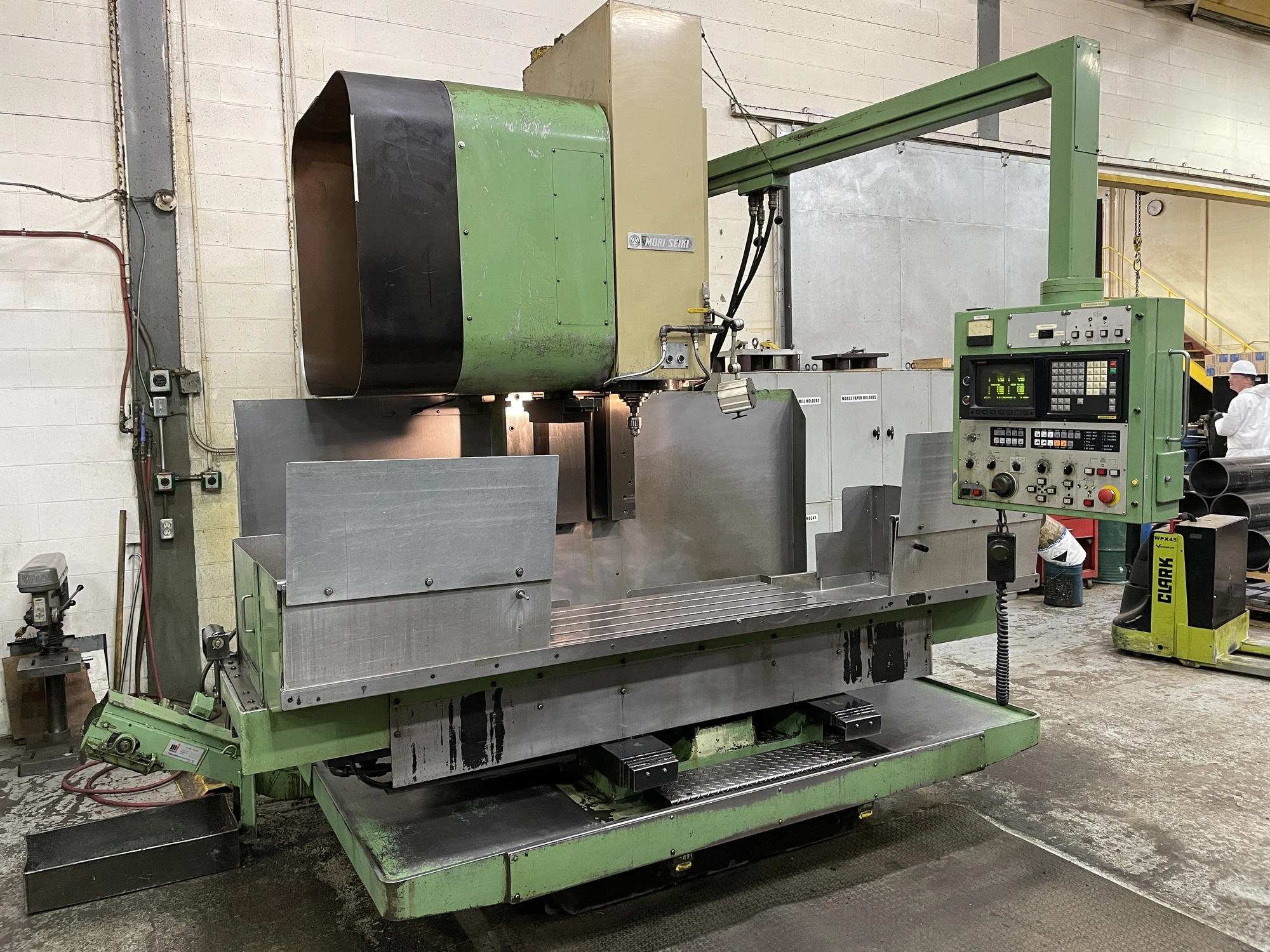

Mori Seiki MV55 4 Axis Vertical Machining Center
| size | 55" x 21" | 55" x 21" |
| X Travel | 41.3" | 1,049 mm |
| Y Travel | 21.6" | 548.64 mm |
| Z Travel | 22" | 558.8 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 21.7" | 551.18 mm |
| Table-L | 55.1" | 1,399.5 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 11M) | CNC (Fanuc 11M) |
15 HP Spindle motor
Table working area 550MM (21.7”) x 1400MM (55.1”)
40.197” X axis travel
21.693” Y axis travel
21.693” Z axis travel
Full 4th axis machining
24 tool magazine
Power requirements:
Voltage: 220V 3 phase 60hz
Load: 31 KVA
Control: Fanuc System 11M
First screen shown on powerup: 11M9A 2018F
