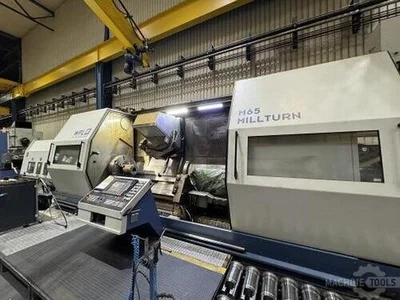

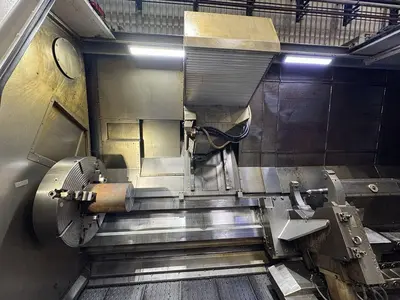

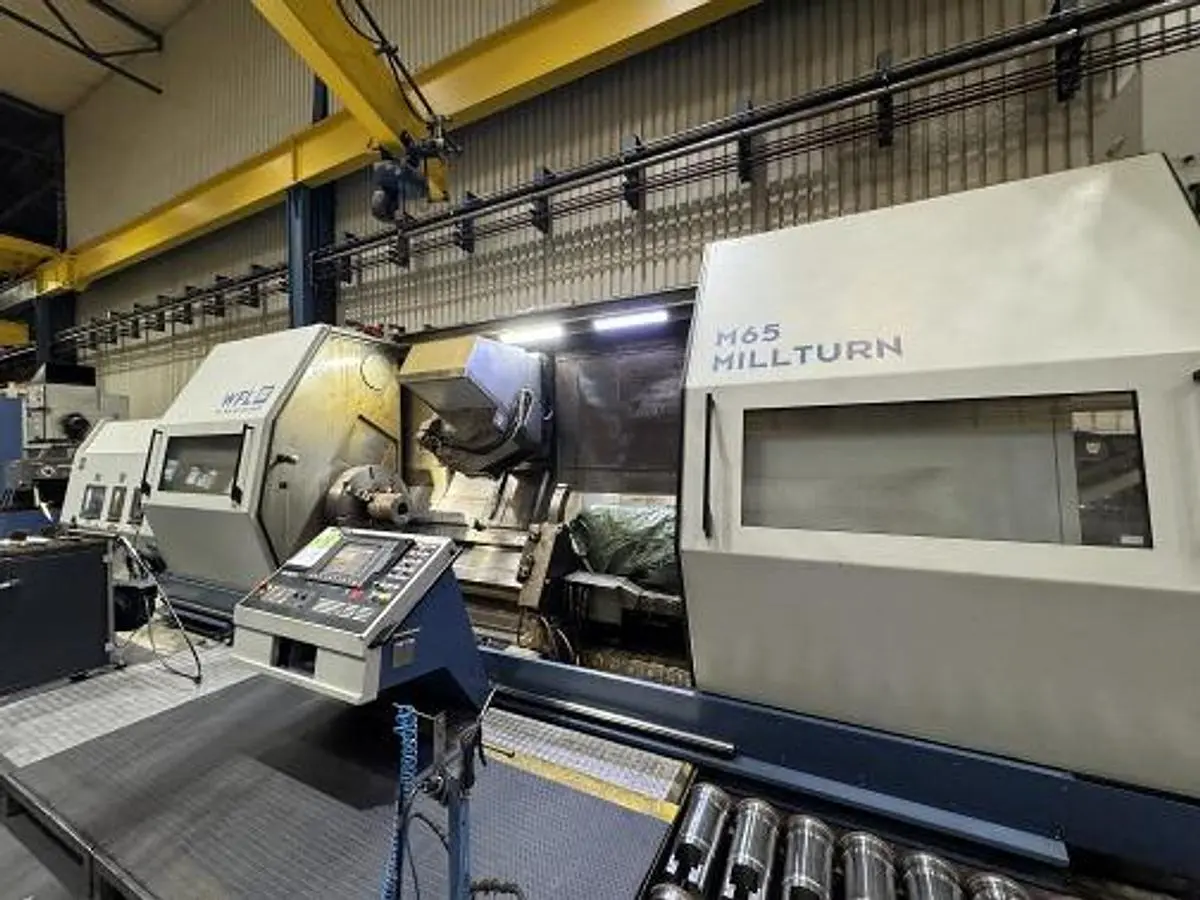

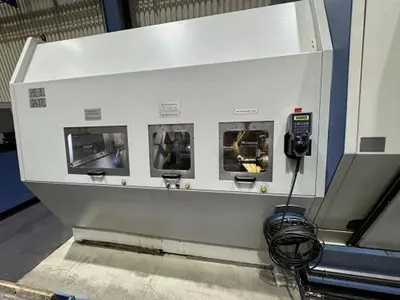

USED 2006 WFL MILLTURN M65-3000

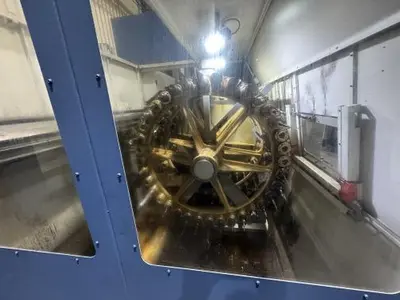

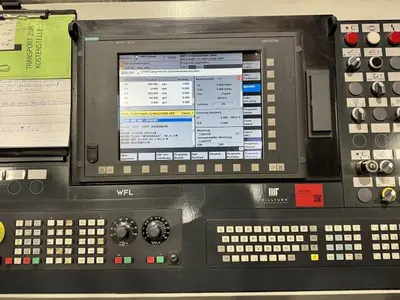

SIEMENS 840 D CNC Control108 Position Automatic Tool Changer

Manufacturer: WFL
Model: MillTurn M65-3000
Year: 2006
Condition: Used
Stock Number: 5654216
Turning length: 3,000 mm
Turning diameter: 680-830 mm
Main spindle speeds: 8 - 2,600 rpm
Z axis travel: 3,150 mm
X axis travel: 720 mm
Spindle drive: 60 kW
Drive power - drilling & milling device: 30 kW

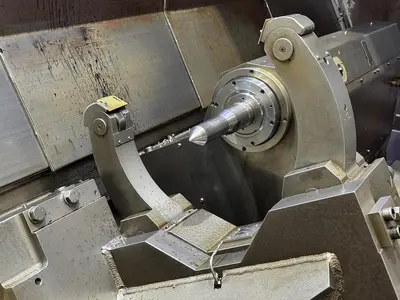

Tailstock quill diameter: 180 mm
Tailstock quill travel: 200 mm
Max torque on spindle: 2748/687 Nm
Max torque on milling spindle: 315 Nm
Tool taper: Capto C8
Spindle head: DIN 55026 / A15
Rapid traverse longitudinal: 20/15 m/min
Feed power x+z axis: 2,000/2,000 daN
Machine weight: 30 Ton
Machine dimensions: 12.5 x 5.5 x 3.5 m
