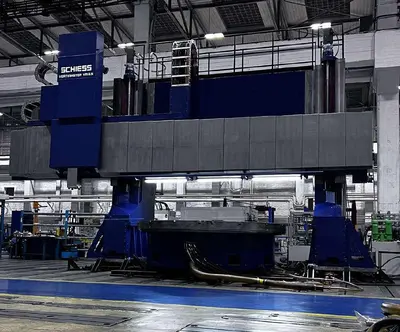

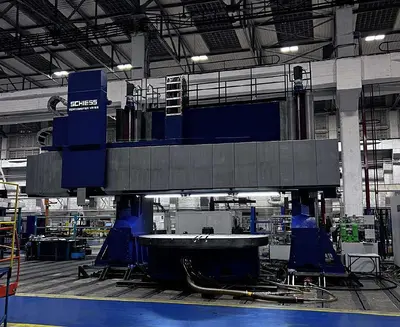

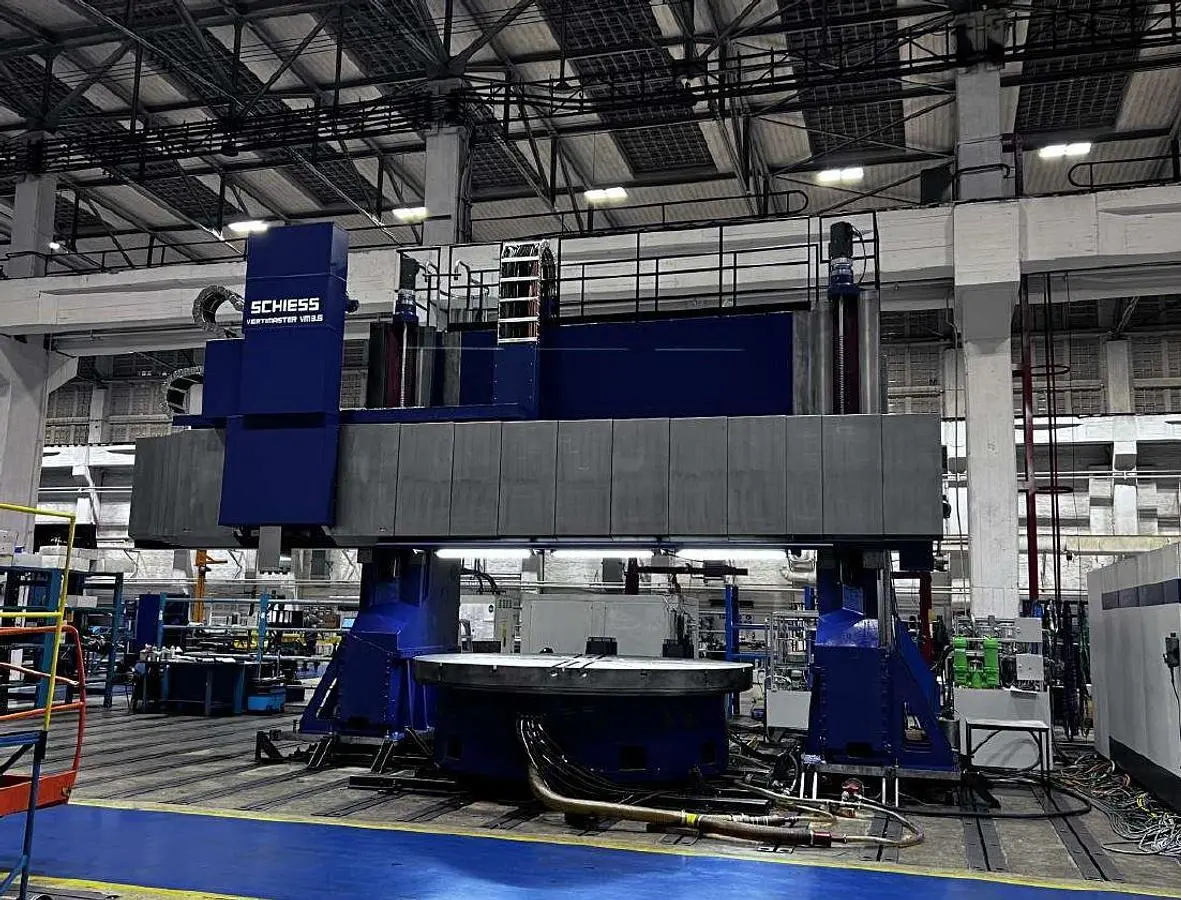

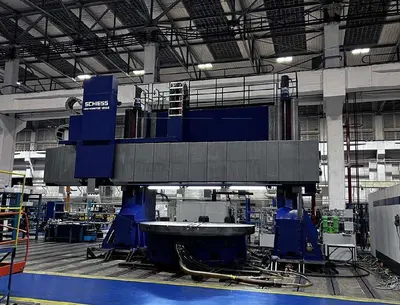

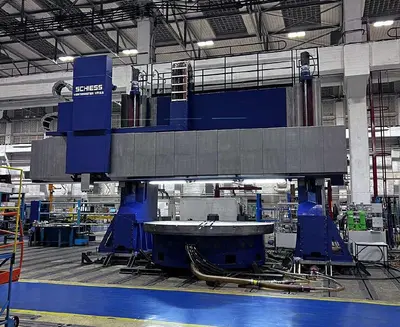

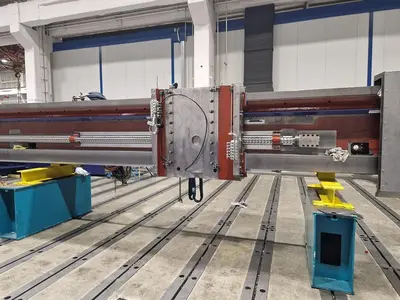

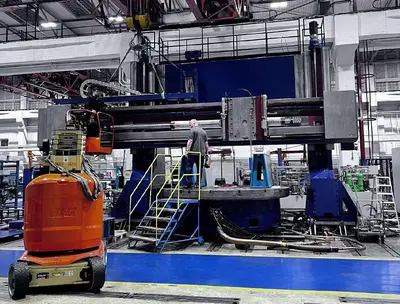

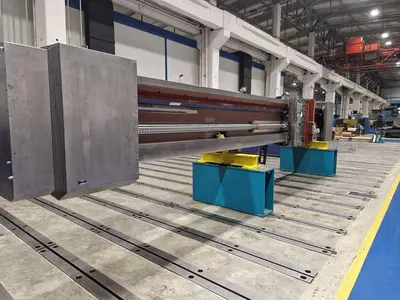

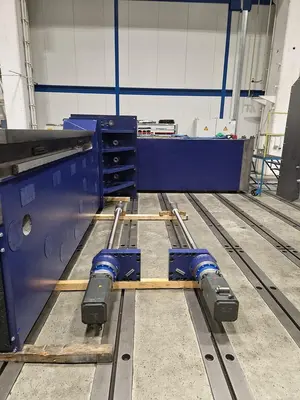

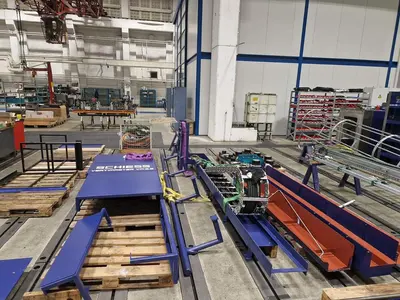

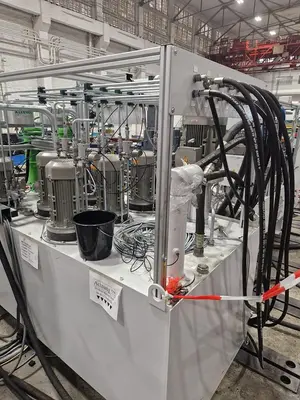

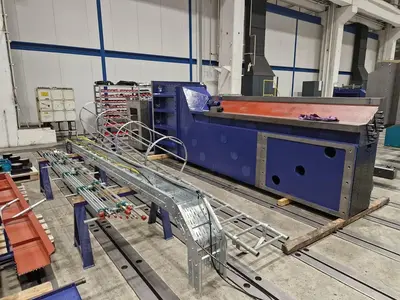

NEW 2025 SCHIESS VERTIMASTER VM 3.5

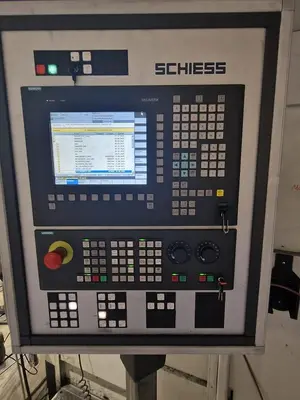

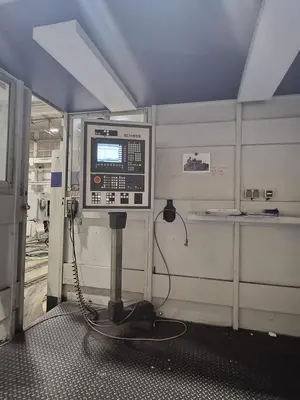

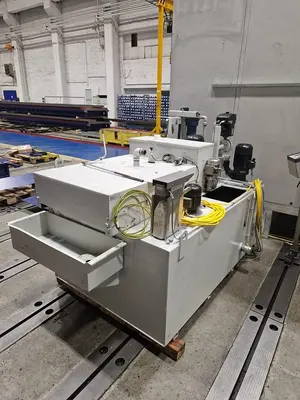

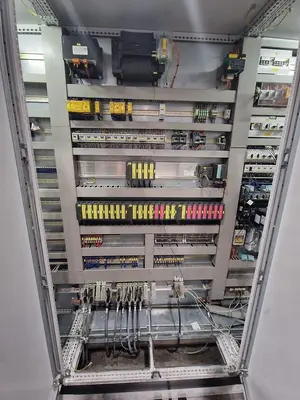

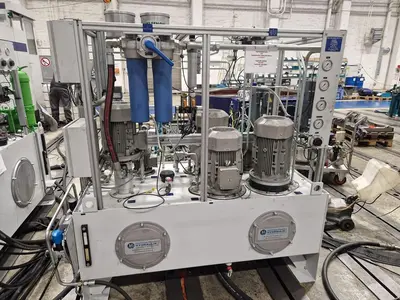

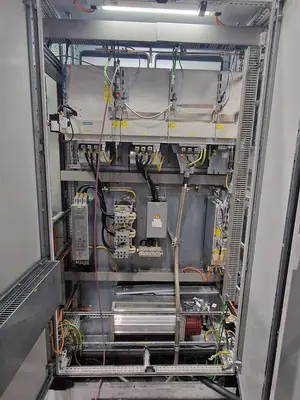

Siemens SINUMERIK 840D CNC Control60 Position Automatic Tool Changer6 Position Automatic Head Changer Straight Drilling & Milling Head GB 1 B 3,150 rpm - 52 kW - 2,400 Nm - SK50 - Internal/External Coolant Supply Angle Drilling & Milling Head WB 1 PB 3,150 rpm - 30 kW - 1,400 Nm - SK50 - Internal/External Coolant Supply Universal Drilling & Milling Head UB 05 B 4,000 rpm - 30 kW - 400 Nm - SK 50 - ±95° A-Axis Swiveling Range - Internal/External Coolant Supply Multiple Turning Tool Holders 2x3 Capto C8 Horizontal - 55 kN Cutting Force - Internal/External Coolant Supply Turning Tool Holder PA PM 2.5° Position Steps - 200 kN Automaatic Clamping Force - Internal/External Coolant SupplyChip ConveyorCoolant Equipment (1,200 L Tank) External Coolant Supply 40 l/min - 4 bar Internal Coolant Supply 15 - 25 l/min - 30 barMachine Accuracy 1) Positioning accuracies according to DIN VDI 3441 • Positioning uncertainty X-axis / Z-axis 0.01/1,000 mm• Positioning uncertainty W-axis 0.015/1,000 mm• Positional deviation X-axis / Z-axis 0.005/1,000 mm• Positional deviation W-axis 0.007/1,000 mm• Positioning uncertainty of face plate C1-axis 10 arcsec• Positional deviation of face plate C1-axis 5 arcsec2) Geometric Accuracies Acc. To DIN 8609 part 3 • Flatness of clamping surface 0.01 up to 1000mm Ø Plus 0.01 for each 1000mm Ø• Axial run of clamping surface 0.01 mm up to 1000 mm Ø Plus 0.01 mm for each 1000 mm Ø• Radial run of faceplate 0.01 mm up to 1000 mm Ø Plus 0.005 mm for each 1000 mm Ø• Rectangularity of crossrail movement in respect to faceplate a) in longitudinal direction 0.02/1,000 mm b) in cross direction 0.02/1,000 mm• Parallelism of cross movement of slide to faceplate 0.02/1,000 mm• Rectangularity of ram movement to faceplate a) in longitudinal direction 0.03/1,000 mm b) in cross direction 0.03/1,000 mm Working area Max. machining diameter 4,000 mm Max. workpiece height 2,800 mm (Distance between face plate surface and GB 1B head) Face plate Diameter 3,500 mm Number of clamping jaws 4 pcs. Max. clamping force each 120 kN Width of T-slots 36 H12 Center hole 110 H7 Drive power (2 x 40 kW) 80 kW/AC Speed stepless for turning operation 0 – 136 rpm Speed stepless for milling operation 0 – 6 rpm Max. torque 50 kNm Max. load 50 TonSaddle (X-axis) Travel from faceplate center to left 3,800 mm Travel from faceplate center to right 2,000 mm Max. positioning speed 0 – 16,000 mm/min Max. feed force 30 kNCross rail (W-axis) Travel stepless 1,200 mm Max. positioning speed 4,000 mm/minRam (Z-axis) Cross section 280x240 mm Travel 1,600 mm Min. bore to enter 390 mm Feed / rapid traverse rate 0 – 16,000 mm/min Max. cutting force to turning operationBoring and milling head (Masterhead-Principle) (ref. to standard head GB 1B) Drive power S1 (100% ED) 52 kW Number of gears 2 Spindle speed Range 1 0-180-520 rpm Range 2 0-1,100-3,150 rpm Spindle torque Range 1 2,400-2,400-850 Nm Range 2 450-450-160 Nm 75 kN

Manufacturer: Schiess
Model: Vertimaster VM 3.5
Year: 2025
Condition: New
Stock Number: 5654214

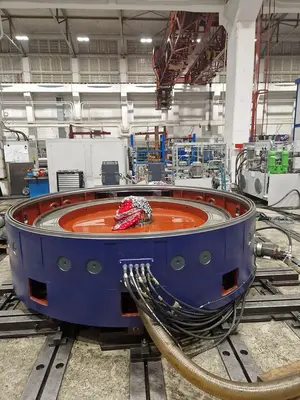

Table diameter: 3,500 mm
Swing: 4,000 mm
Turning height: 2,800 mm
Table capacity: 50 Ton
Table turn speed: 136 rpm
Live spindle speed: 3,150 rpm (2 ranges)
Z axis travel: 1,600 mm
W axis travel: 1,200 mm
Live spindle motor: 52 kW
Spindle taper: SK 50
Ram size: 280 x 240 mm
Electrics: 380V - 50 Hz - 24 V - 250 kVA
