USED HENSCHEL FM 350

Manufacturer Information

Manufacturers: Henschel / Zeppelin

Mixer Model: FM350 High-Intensity Mixer

Dust Collection: Donaldson Torit DCE

Application: PVC dry blend for piping production

Description

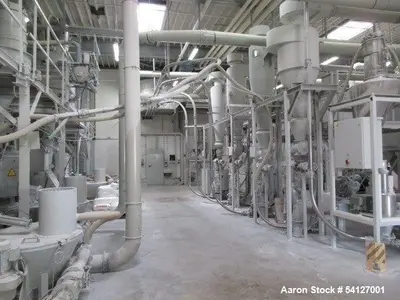

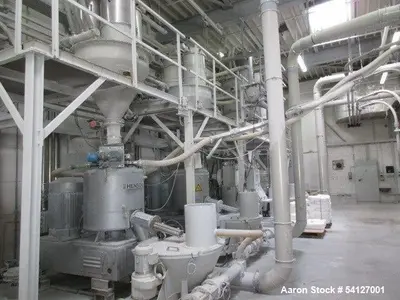

A used Henschel/Zeppelin PVC mixing plant designed for high-performance PVC dry blend compounding, with a rated output of 4000 tonnes/year (based on single-shift operation).

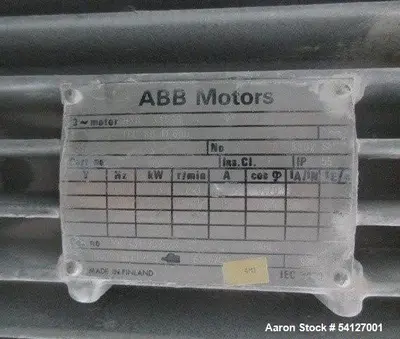

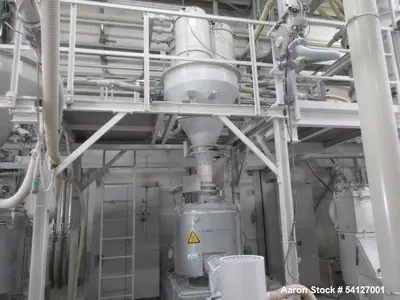

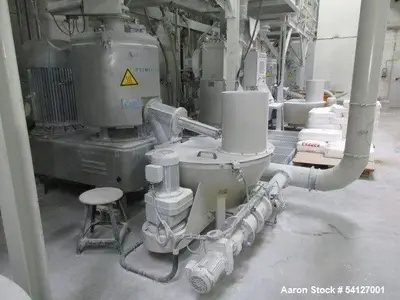

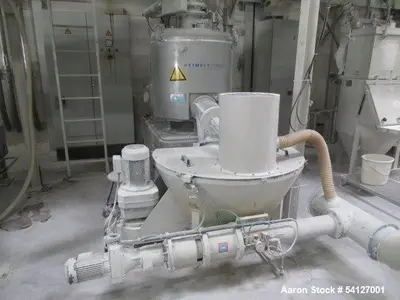

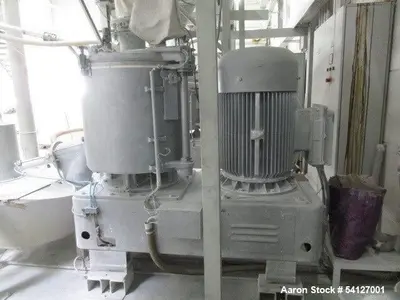

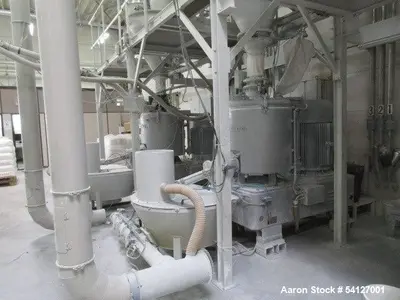

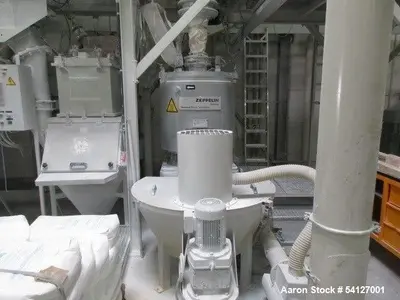

The plant is equipped with four Henschel/Zeppelin FM350 high-intensity mixers, each featuring a carbon steel jacketed bowl with stainless steel interior, 233 L working capacity, and 350 L total capacity. Each mixer is fitted with a hydraulic 200 mm (8") bottom outlet, a hydraulic hinged top cover, and is driven by an approx. 20 HP, 380V, 50 Hz, 3-phase motor.

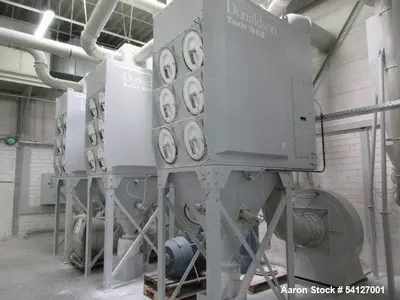

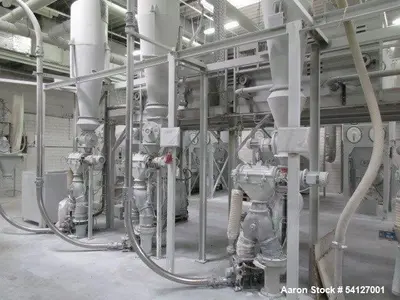

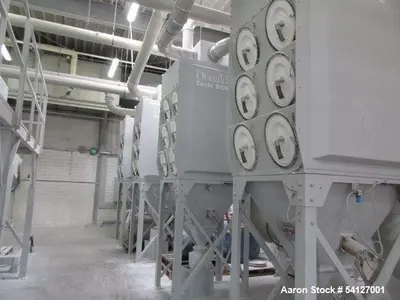

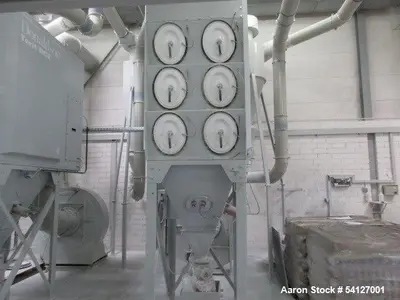

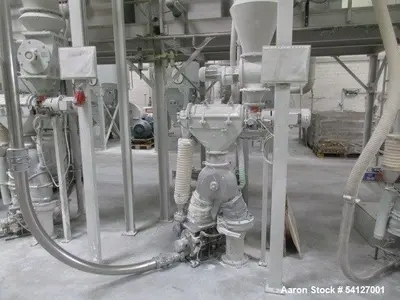

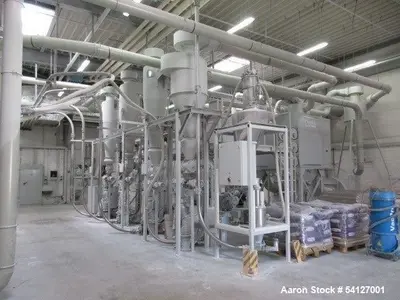

Supporting equipment includes 4 cyclones with valves on legs, 4 Donaldson Torit DCE dust collectors, 4 air blowers, and a complete control, feeding, and conveying system with piping, valves, and sensors. The system is frame-integrated and production ready, previously operating in PVC dry blend applications for pipe manufacturing.

Specifications

Specification
Details

Plant Capacity
4000 tonnes/year (1 shift)

Mixers
(4) Henschel/Zeppelin FM350

Working Capacity
~8.22 cu ft (233 L) each

Total Capacity
~12.3 cu ft (350 L) each

Bowl Construction
Carbon steel jacket with stainless steel interior

Bowl Features
Hydraulic 200 mm (8") bottom outlet; hinged hydraulic top cover

Motor Drive
~20 HP, 380V, 50 Hz, 3-phase

Cyclones
(4) with valves

Dust Collectors
(4) Donaldson Torit DCE (on legs)

Air Blowers
(4)

Controls
Integrated PLC/control panel

Ancillary Systems
Feeding, conveying, piping, valves, sensors

Previous Application
PVC dry blend for piping

Condition
Used – complete and operational

What Might This Be Used For

PVC dry blend compounding for pipe manufacturing

PVC powder mixing for fittings, profiles, or sheets

Plastic compounding in extrusion feed preparation

Rigid PVC blend preparation for window profiles

Specialty PVC compounding for building materials

Thermoplastic blending and pre-processing

Powder resin conditioning with additives and stabilizers

Pre-blending compounds for injection molding applications

Dust-controlled industrial mixing for polymers

High-capacity PVC powder production for downstream processing
