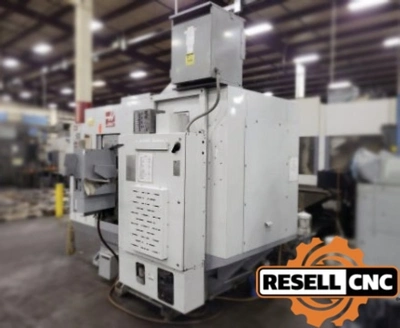

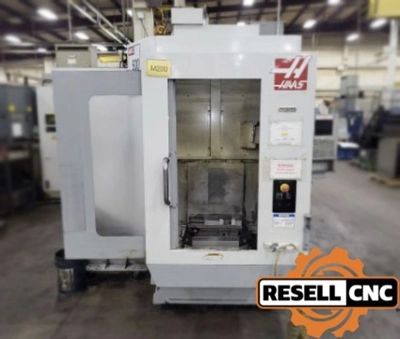

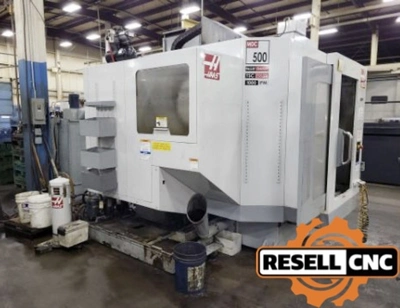

USED 2006 Haas MDC-500

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: 180° Dual Pallet Changer

Pallet Change Time: 8 Seconds

Max Torque: 70ft-lb @ 1400RPM

Air Required: 100 psi, 4 scfm

Coolant Tanks, Coolant System

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Haas CNC Control
Cutting Feed Rate: 710
Electrical: 480v
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Automatic Pallet Changer
Max Table Pallet Load: 700.0
Max Tool Diameter: 3.6
Max Tool Length: 16.0
Max Tool Weight: 12.0
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 1000
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Speed: 7500.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 2.1 - 4.7
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 20" x 12.75
X Travel: 20.0
Y Axis: false
Y Travel: 14.0
Z Travel: 20.0
