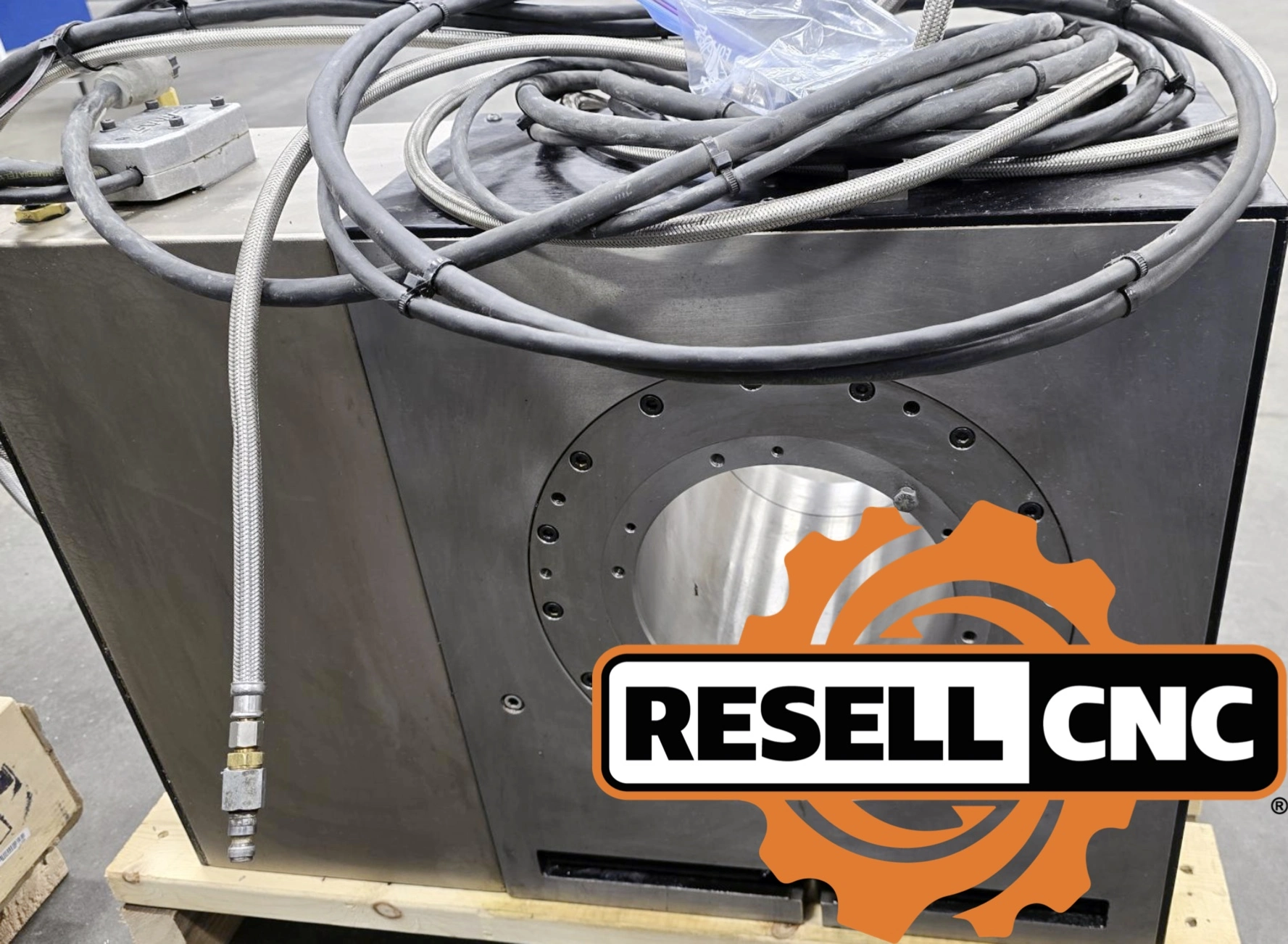

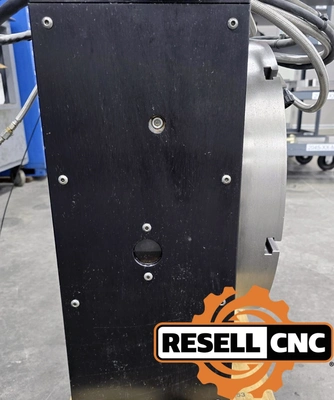

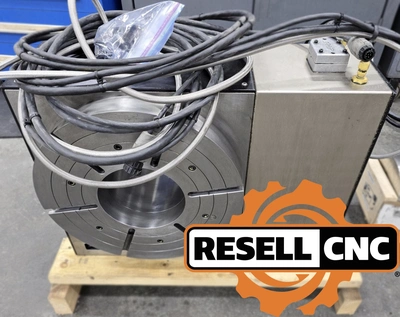

USED 2018 Haas HRT-450

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Platter:

- Platter Diameter: 17.7"

- Max Weight on Platter (w/ support): 850 lbs.

- Max Weight on Platter (unsupported): 425 lbs.

- Number of Std T-Slots: 6 @ 60°



Spindle:

- Max Speed: 50 °/sec

- Torque (Continuous): 400 ft-lbf

- Runout Max: 0.0015"

- Center Height: 11.500"

- Backlash: 30 arc-sec

- Brake Torque @ 100 psi/6.9 bar: 1350 ft-lbf

- Gear Ratio 72:1 72:1

- Timing 3:1 3:1



Indexing:

- Accuracy (±): ± 15 arc-sec

- Repeatability: 10 arc-sec

- Resolution: 0.001 °

- Worm Gear Dia: 13.5 in

- Max Rotation/Step (with rotary control): 999.999 °



Equipped With:

- Direct Control by Mill CNC

- Manual Collet Closer

- Sigma 5 Servomotor Drive

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
