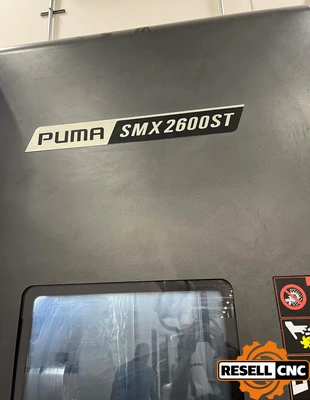

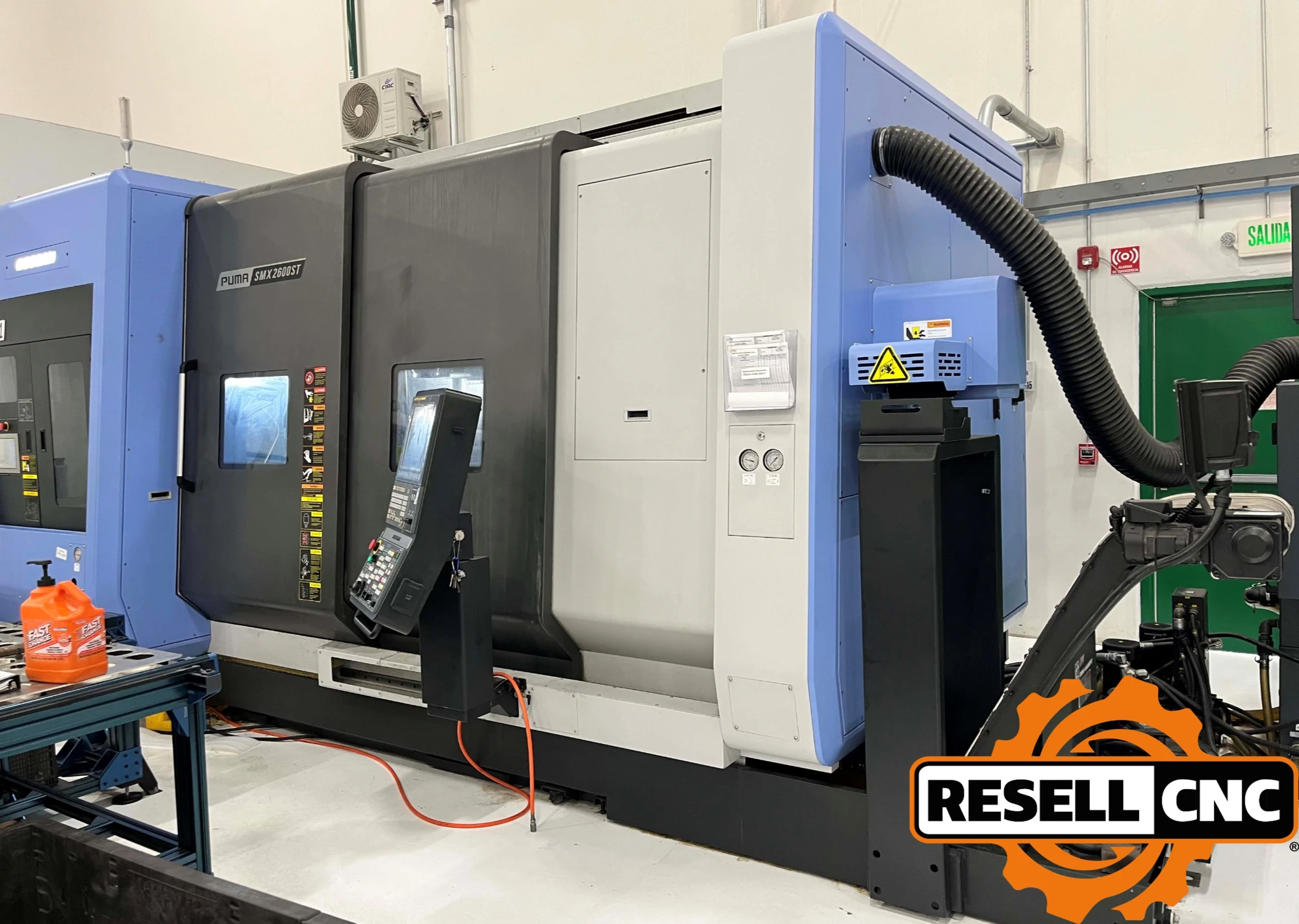

USED 2022 Doosan Puma SMX2600ST

X2nd Turret Live Tooling: false
X2nd Turret Max Rpm: 5000
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Chuck Work Weight (Including Chuck): 573.2 lbs.

Shaft Work Weight (Including Chuck): 1146.4 lbs.



Travels:

- Y-Axis: 11.8"

- A-Axis: 60.6"

- C1-Axis: 360 degrees

- C2-Axis: 360 degrees

- X2-Axis: 9.3"

- Z2-Axis: 60.6"



Rapid Traverse Rates:

- X-Axis: 1889.8 IPM

- Y-Axis: 1417.3 IPM

- Z-Axis: 1889.8 IPM

- A-Axis: 1181.1 IPM

- B-Axis: 40 RPM
- C1-Axis: 200 RPM

- C2-Axis: 200 RPM

- X2-Axis 944.9 IPM

- Z2-Axis: 1417.3 IPM



Left Spindle:

- Spindle Bearing Diameter (Front): 5.1"

- Spindle Through Hole: 3.6"

- Min. Spindle Indexing Angle (C1-Axis): 0.0001 deg



Right Spindle:

- Min. Spindle Indexing Angle (B-Axis): 0.0001 deg



Automatic Tool Changer:

Tool Storage Capacity: 40

Tool Shank: CAPTO C6

Max. Tool Diameter Continuous: 3.5"

Max. Tool Diameter Without Adjacent Tools: 5.1"

Max. Tool Length: 17.7"

Max. Tool Weight: 26.5"

Max. Tool Moment: 7.2 ft-lbs

Tool-To-Tool Change Time: 1.8 sec

Chip-To-Chip Change Time: 7.8 sec

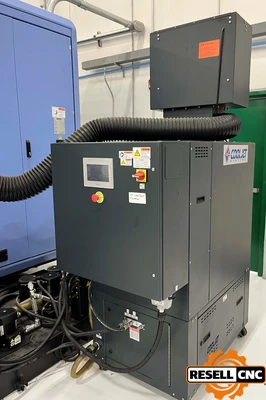

Cooljet High Pressure Coolant

High-Pressure Mist Collection System

Cobot Integration

Bar Capacity: 3.2
B Axis: true
B Axis Travel: 240 degrees
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 10.0

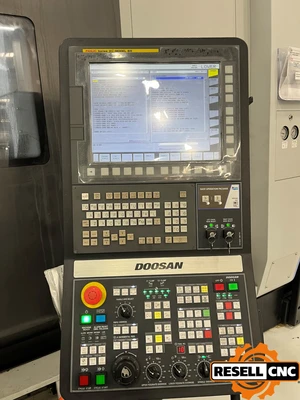

Control Make Model: Fanuc Series 31i-Model B5 CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 60.6
Live Milling Max Rpm: 12000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door
Max Cutting Turning Diameter: 26.0
Max Swing Over Bed: 26.0
Max Turning Cutting Length: 60.6
Programmable Tailstock: false
Second Chuck Size: 10.0
Second Spindle Nose: A2-8
Second Spindle Speed: 4000
Single Turret: false
Single Turret Live Tooling: false
Spindle Nose: A2-8
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Options: Lower Turret:

- OD Tool Size: 1.0"

- Max Boring Bar Size: 1.6"

- Turret Index Time: 0.2 sec

Twin Turret: false
X Travel: 27.4
Y Axis: true
Z Travel: 62.4
