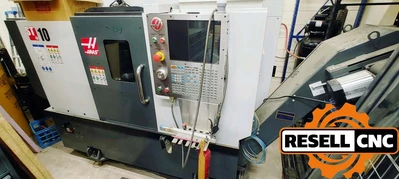

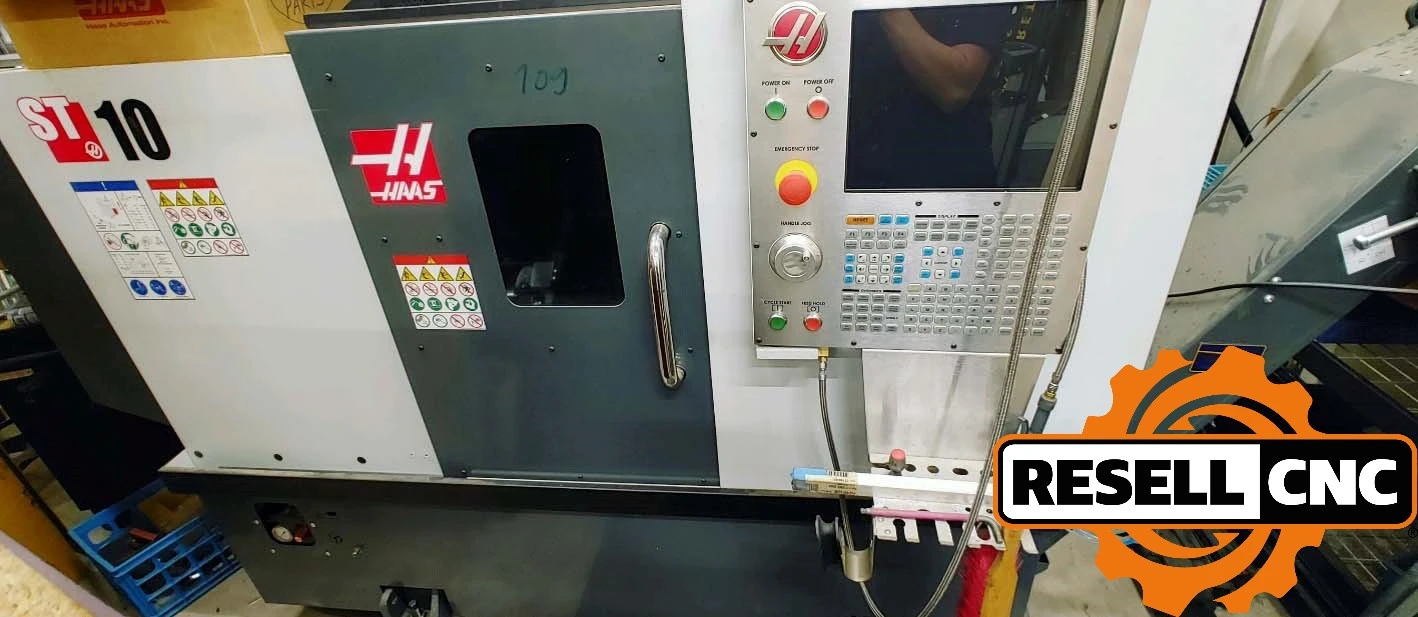

USED 2017 Haas ST-10

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: 30-Gallon Integrated Coolant Tank with 3/4 HP Pump

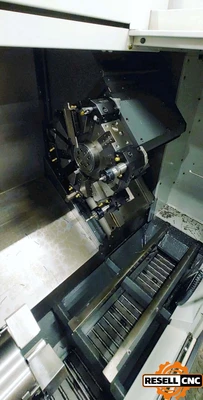

12-Station Bolt-On Tool Turret

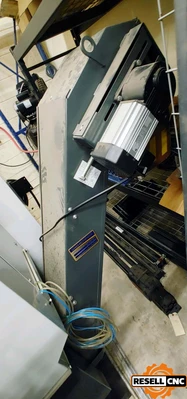

Belt-Type Chip Conveyor

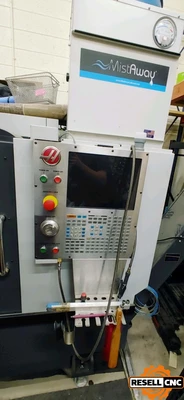

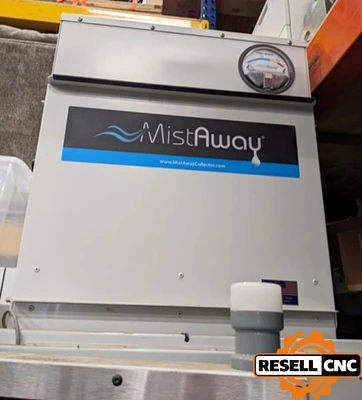

Mist Away Coolant Mist Filter System

Assortment of Coolant Nozzles



Tooling:

(2) Bolt-On 1.25" ID Boring Bar Holders

Bolt-On 1" ID Boring Bar Holder

Bolt-On 0.75" ID Boring Bar Holder

Bolt-On Facing Holder

Aluminum Extended Capacity Coolant Caps for ID Boring Bar Holders

(4) Sets of Wedges for OD Tools

Several Sets of Steel and Aluminum Soft Jaws, including Pie/ Full Circle Jaws

ER-20 Collet Holders

Bar Capacity: 1.75
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Size: 6.5
Chuck Type: Hydraulic
Control Make Model: Haas CNC Control
Control Options: Rigid Tapping
Distance Between Centers: 16.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, Mist Collector
Max Cutting Turning Diameter: 12.0
Max Swing Over Bed: 16.5
Max Turning Cutting Length: 16.0
Programmable Tailstock: false
Rapid Traverse: 1200/1200
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 2.31
Spindle Motor: 15
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 12.0
Total Spindles: 1
Twin Turret: false
X Travel: 7.88
Y Axis: false
Z Travel: 16.0
