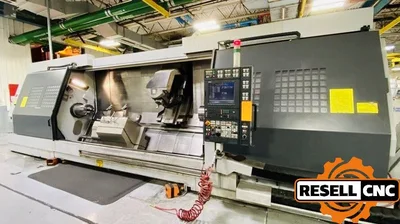

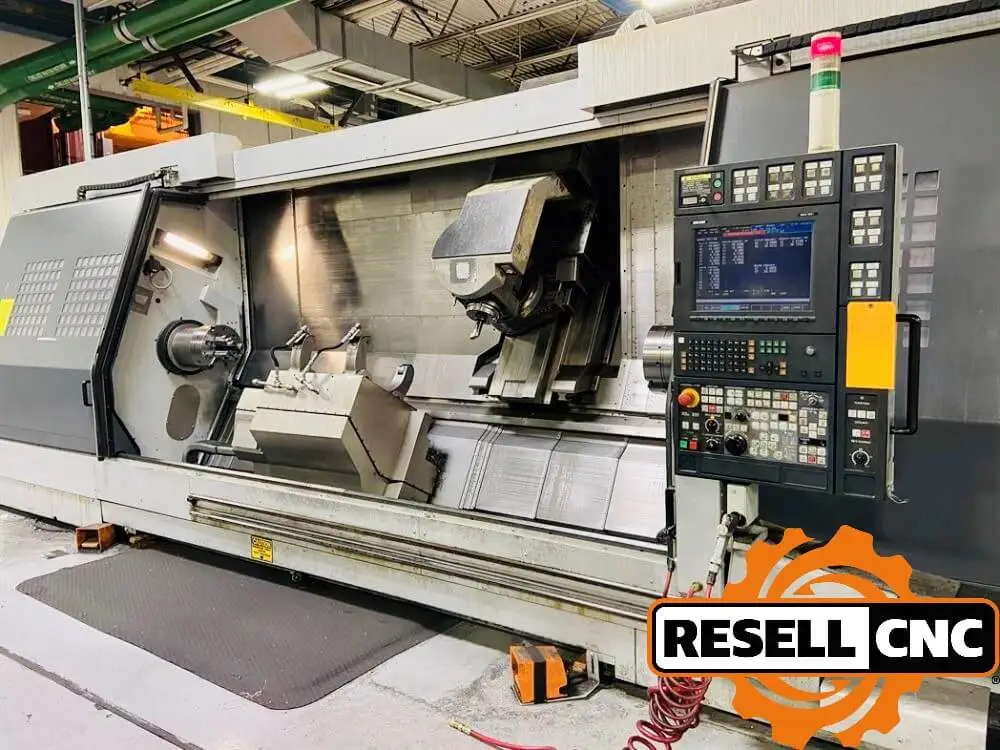

USED 2006 Mori Seiki MT-3500S/3500

X2nd Chuck Description: 3-Jaw Chuck

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: Fanuc 18i-TB Control

MAPPS Software

Additional Machine Specs: Travels:

- Y-Axis : +/- 4.3"

- B-Axis: 180°

- C1-Axis: 0.001°

- C2-Axis: 0.001°



C-Axis Synchronize Function

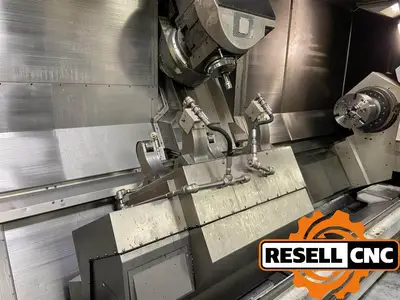

(2) 12" Programmable Turn Thru-Steady Rest

CoolJet High Pressure Coolant System

Hydraulic Unit

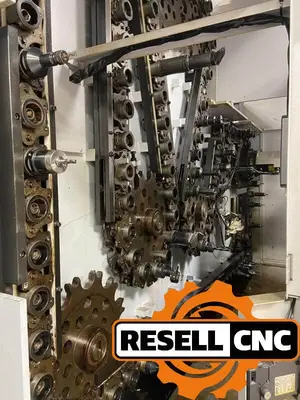

(25) Tool Holders Included

Bar Capacity: 4.0

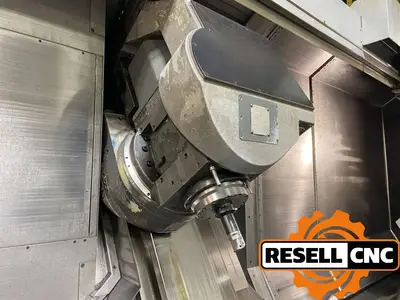

B Axis: true
B Axis Travel: 180° Travel

C Axis: true
Chip Removal: Chip Conveyor

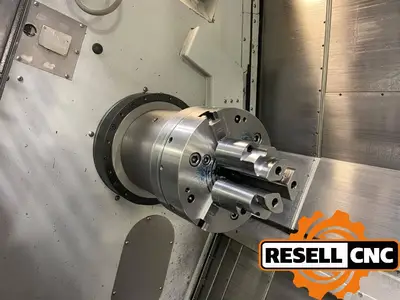

Chuck Description: 3-Jaw Chuck

Chuck Size: 12.0
Control Make Model: Mori Seiki MSX-501 CNC Control
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
Distance Between Centers: 125.0

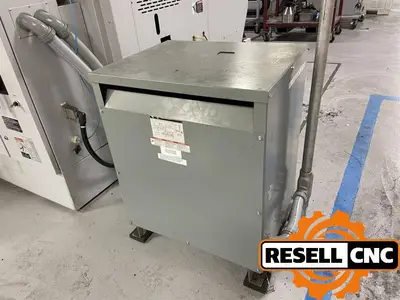

Electrical: 480/3/60
High Pressure Coolant Psi: 1000.0
Live Milling Max Rpm: 8,000 RPM
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door
Max Cutting Turning Diameter: 22.4
Max Swing Over Bed: 31.5
Max Turning Cutting Length: 125.0
Programmable Tailstock: false
Rapid Traverse: 944/1181
Second Chuck Size: 12.0
Second Spindle Bore: 4.1
Second Spindle Motor: 20
Second Spindle Nose: A2-8
Second Spindle Speed: 4,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.1
Spindle Motor: 40
Spindle Nose: A2-8
Spindle Speed: 3000.0
Steadyrest Capacity: 12.0
Sub Spindle: true
Tailstock: false
Tool Positions: 120.0
Total Spindles: 2
Turret Max Rpm: 15 HP
Turret Options: Capto C6
Twin Turret: false
X Travel: 25.0
Y Axis: true
Z Travel: 125.0
