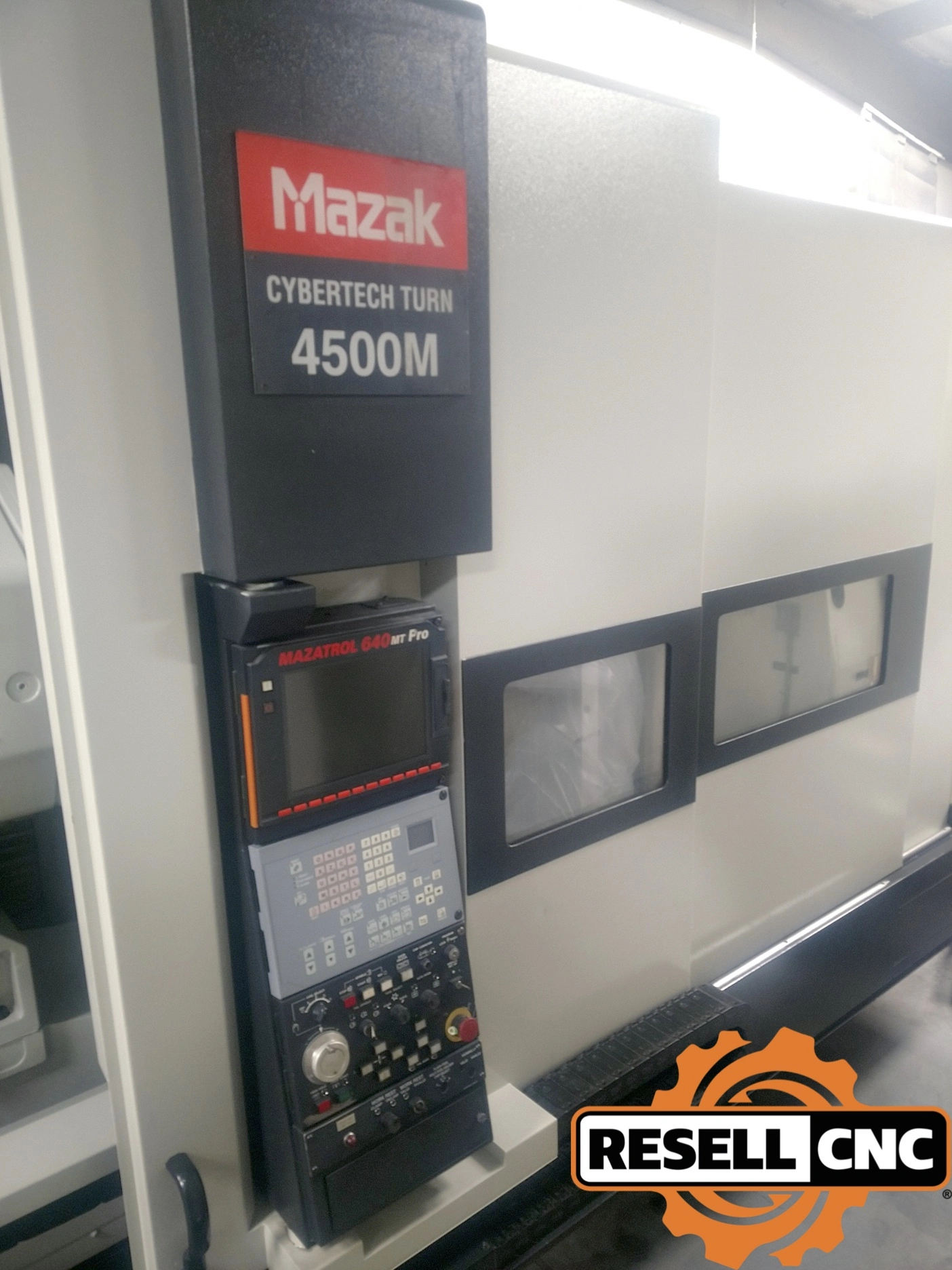

USED 2006 Mazak Cybertech 4500M

X2nd Chuck Description: SCA 4-Jaw with 7.5” Bore

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Conversational or G-Code Programming

N-EIA/ISO Option Package

Windows 2000 Operating System

Thread Start Point Compensation

Re-Threading Function

Optimizer Technical Library

Digital Documentation

Additional Machine Specs: Travels:

- C-Axis: 0.001" Increments

- W-Axis: 120.08"

Multi-Tap Transformer

211 Gallon Coolant

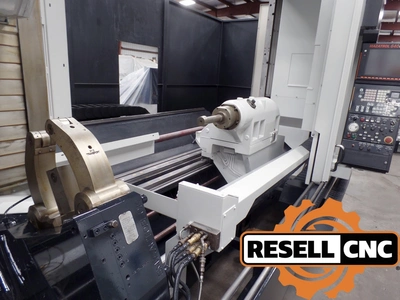

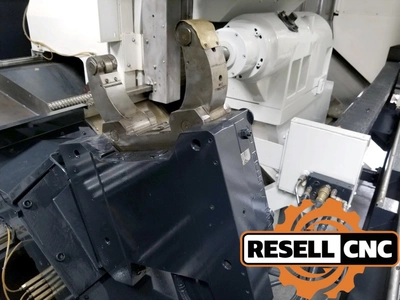

SMW SLU-Z4 Hydraulic Steady Rest: 1.18" - 9.65"

Absolute Positioning System

Prep for Rear Chuck

Auto Lube System

Bar Capacity: 7.2
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

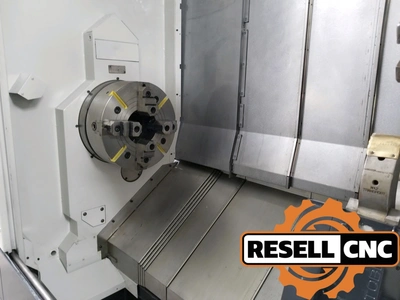

Chuck Description: SCA 4-Jaw with 7.5” Bore

Chuck Size: 18.0
Chuck Type: Hydraulic

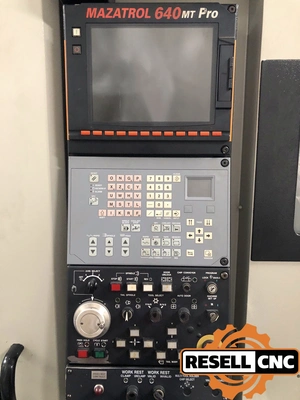

Control Make Model: Mazatrol PC-Fusion 640MT PRO Control
Control Options: G-Code, Conversational Programming, EIA/ISO Code Input Function
Coolant Type S: High Pressure Coolant
Distance Between Centers: 120.0
High Pressure Coolant Psi: 213.0
Live Milling Hp: 15
Live Milling Max Rpm: 3000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: All Available Manuals, Transformer, Tool Eye
Max Cutting Turning Diameter: 31.89
Max Swing Over Bed: 33.86
Max Turning Cutting Length: 120.0
Programmable Tailstock: true
Second Chuck Size: 18.0
Second Spindle Bore: 7.5
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 7.23
Spindle Motor: 50
Spindle Speed: 2400.0
Steadyrest Capacity: 9.65
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true

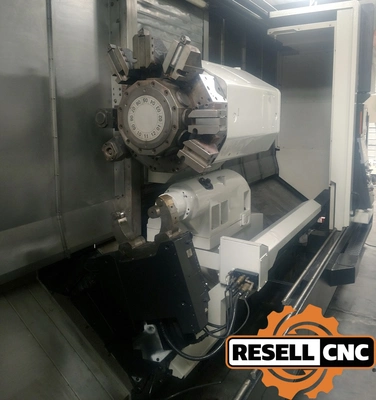

Tool Positions: 12.0
Total Spindles: 1
Twin Turret: false
X Travel: 21.26
Y Axis: false
Z Travel: 123.23
