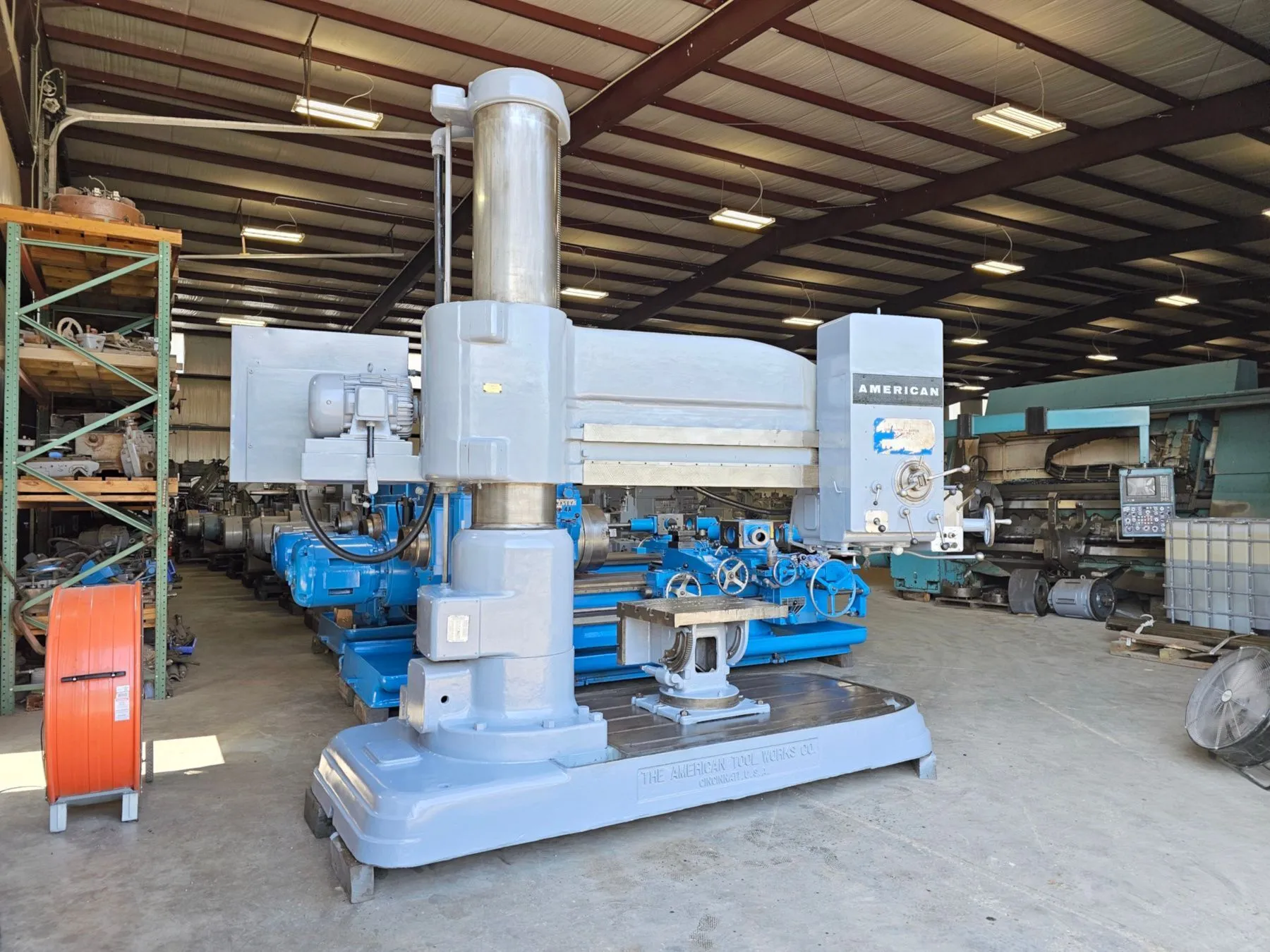

6' X 17" Used American Hole Wizard Radial Drill Year 1970 Serial Number
| Arm Length | 6' | 1.8 m |
| Column Dia. | 17" | 431.8 mm |
| RPM | 1,600 RPM | 1,600 RPM |
| Power | 15 hp | 11.2 kW |
| Dimensions | R-L 12'6" X F-B 60" X Height 12'6" | R-L 12'6" X F-B 60" X Height 12'6" |
| Weight | 25,000 Lbs. | 25,000 Lbs. |
Arm Size.........................................6'
Column Diameter..................................17"
Maximum Height Under Spindle.....................96"
Minimum Height Under Spindle.....................45"
Spindle Speeds...................................20 To 1,600 Rpm's
Spindle Taper....................................# 5
Spindle Travel...................................22-1/2"
Spindle Diameter.................................3-1/2"
Spindle Feeds....................................0.003 To .125 I.P.R.
Main Motor.......................................15 Hp. 220 /440/3
Floor Space......................................R-L 11'6" X F-B 60"
Height...........................................120'6"
Weight...........................................25,000 Lbs.
Box Table........................................22" X 28" X 25 High
Power Clamp......................................Yes
Power Elevation..................................Yes
Power Traverse To Head...........................Yes
Coolant..........................................Yes
Note:
Machine will be cleaned, painted and cycled.
