Wired for 4th Axis, 50 Taper, 6000 RPM, Fanuc 0iMD CNC
| size | 43" x 25" x 23" | 43" x 25" x 23" |
| X Travel | 43" | 1,092.2 mm |
| Y Travel | 25" | 635 mm |
| Z Travel | 23" | 584.2 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 25.6" | 650.24 mm |
| Table-L | 51.2" | 1,300.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oimd Cnc Control) | CNC (Fanuc Oimd Cnc Control) |

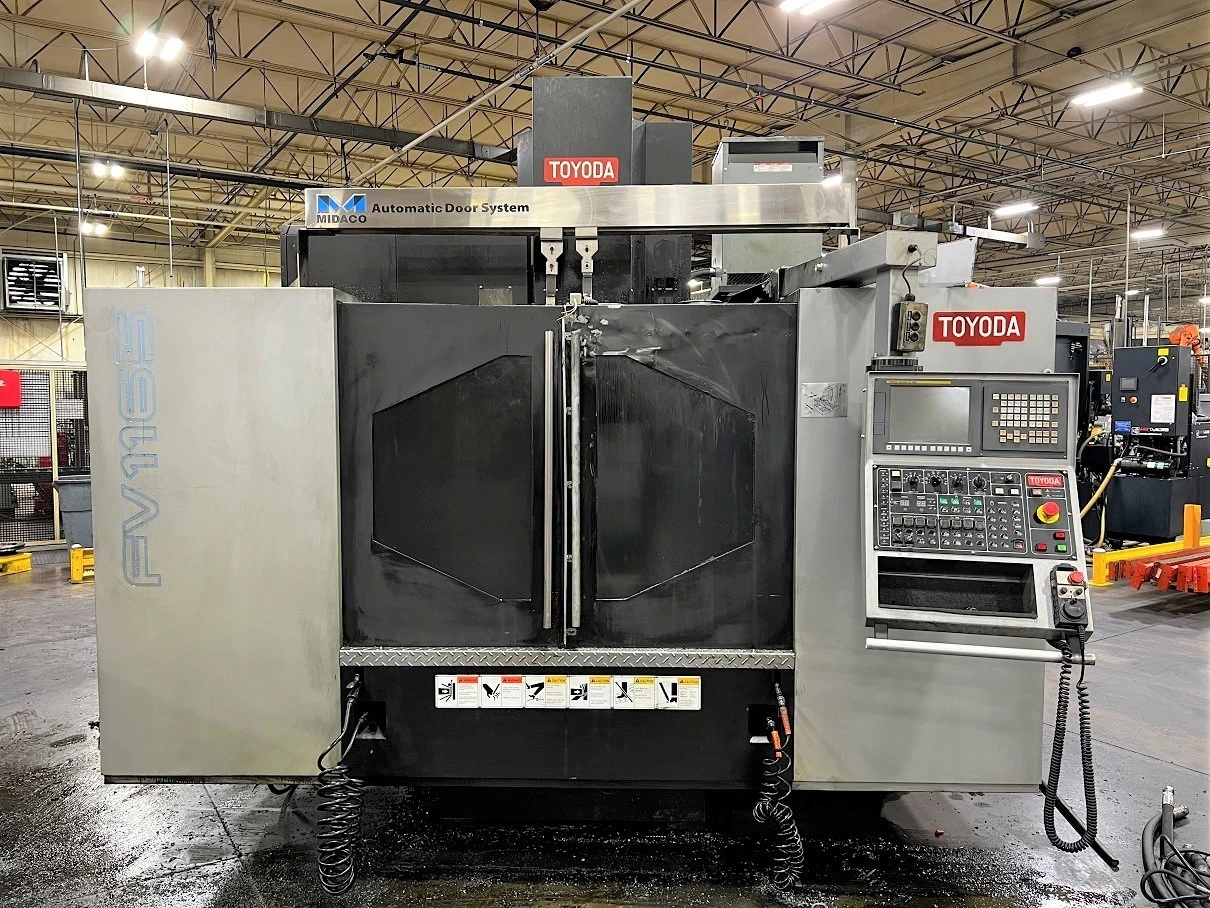

TOYODA FV1165 Vertical Machining Center
Specifications:
Table Size 51.2" x 25.6"
Travels: X-Axis 43.3"
Y-Axis 25.6"
Z-Axis 23.6"
Spindle Taper Cat #50
Spindle Speeds Up to 6,000 Rpm
Motor 20 Hp
Tool Storage Capacity 30
Maximum nTable Load 2,425 Lbs.
Rapid Traverse Rate: X & Y Axis 1,181 Ipm
Z-Axis 945 Ipm
Weight, Approx. 15, 900 Lbs.
Fanuc Oimd Cnc Control
Geared Head
1,000 PSI Coolant Thru Spindle
Wired for 4th Axis
Midaco Automatic Door System
Manual Pulse Generator
Chip Conveyor
Rigid Tapping
Coolant
