Machine is in Excellent Condition & Ready For Inspection.
| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 120" | 3,048 mm |
| Wattage | 2000 w | 2,000 W |
| X | 120" | 3,048 mm |
| Y | 61" | 1,549.4 mm |
| Z | 6" | 152.4 mm |
| Control | CNC (Ermak Power Automation) | CNC (Ermak Power Automation) |
| Dimensions | 402"L x 146"W x 105"H | 402"L x 146"W x 105"H |
| Weight | 32,500 Lbs | 32,500 Lbs |
Specifications:

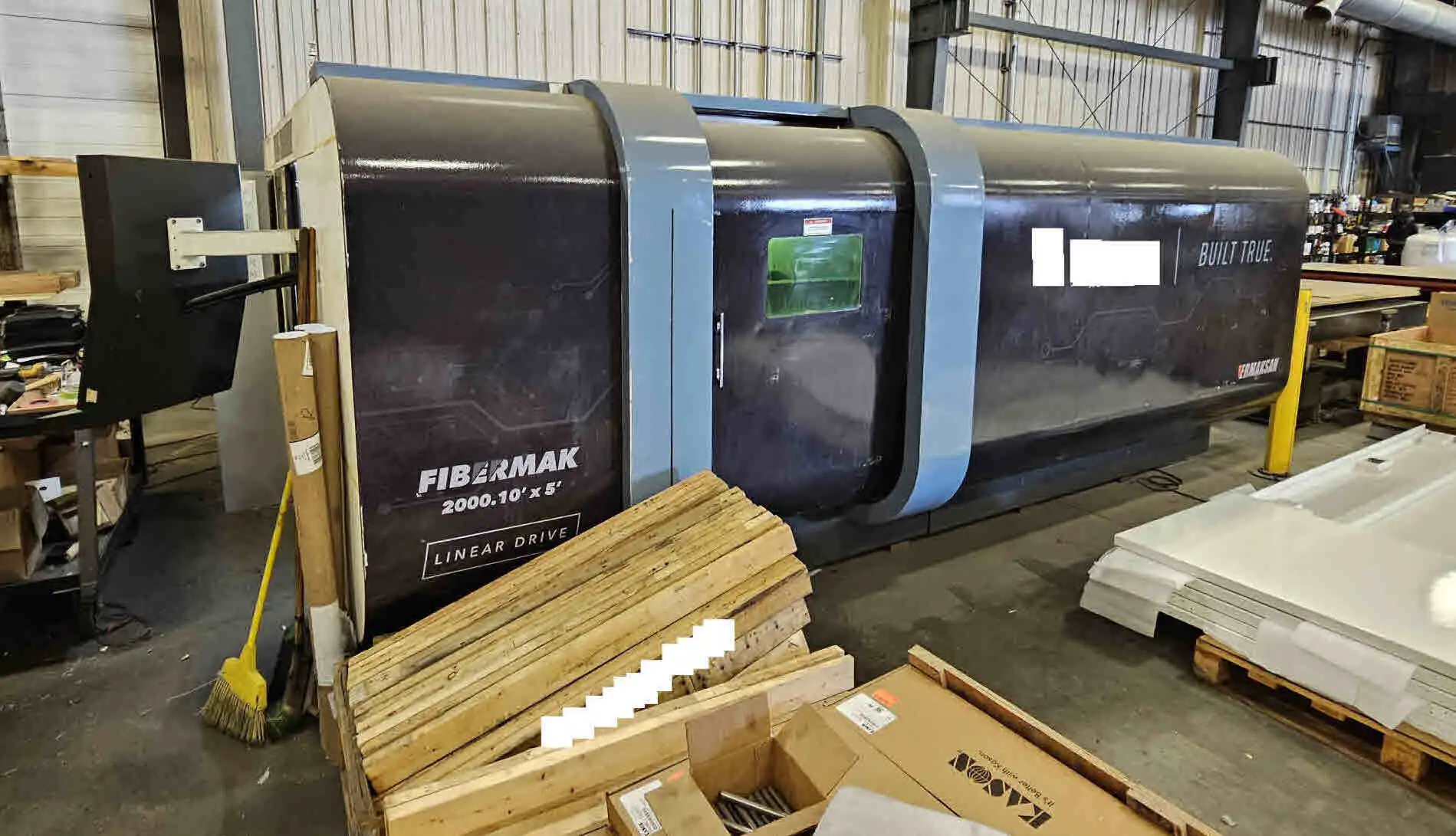

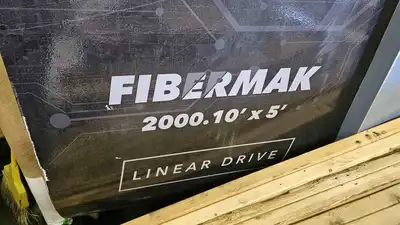

Model - Fibermak 2000
Year - 2012
Watts - 2000 W
Pallet Size - 60” x 120”
X Axis Travel - 120”
Y Axis Travel - 61”
Z Axis Travel - 6”
Max Positioning Speed - 5,551 IPM
Laser Cut Time Hours - 864 H
Laser On Time Hours - 820 H
Electrics - 460V/3PH/60HZ
Made In - Turkey
Approximate Weight - 32,500 Lbs
Overall Dimension (Chillier) - 36”L x 32”W x 61”H
Overall Dimension (Dust Collector) - 72”L x 51”W x 99”H
Overall Dimension (Resonator) - 42”L x 32”W x 27”H
Approximate Overall Dimension (Machine) - 402"L x 146"W x 105"H
Equipped With:
Ermak Power Automation Touch Screen CNC Control

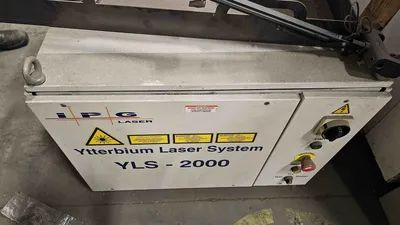

IPG Laser System YLS-2000-TR Resonator

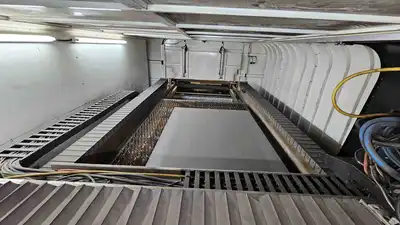

Automatic Dual Shuttle Table (60” x 120”)
Inside Work Camera With Screen
Ermak ER4000 Dust Collector
Safety Light Curtains

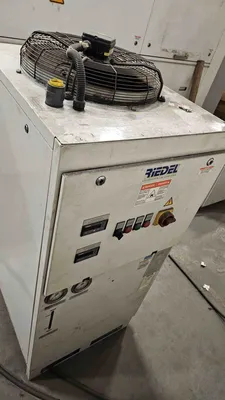

Riedel Chillier
Linear Drive
Cutting Capacity:
Mild Steel 5/8”
Stainless Steel 3/8”
Aluminum 5/16"
Brass 3/16”
