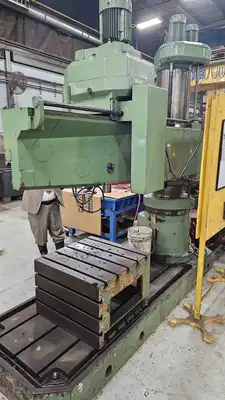

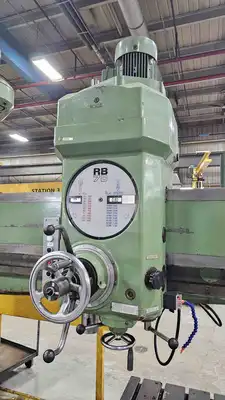

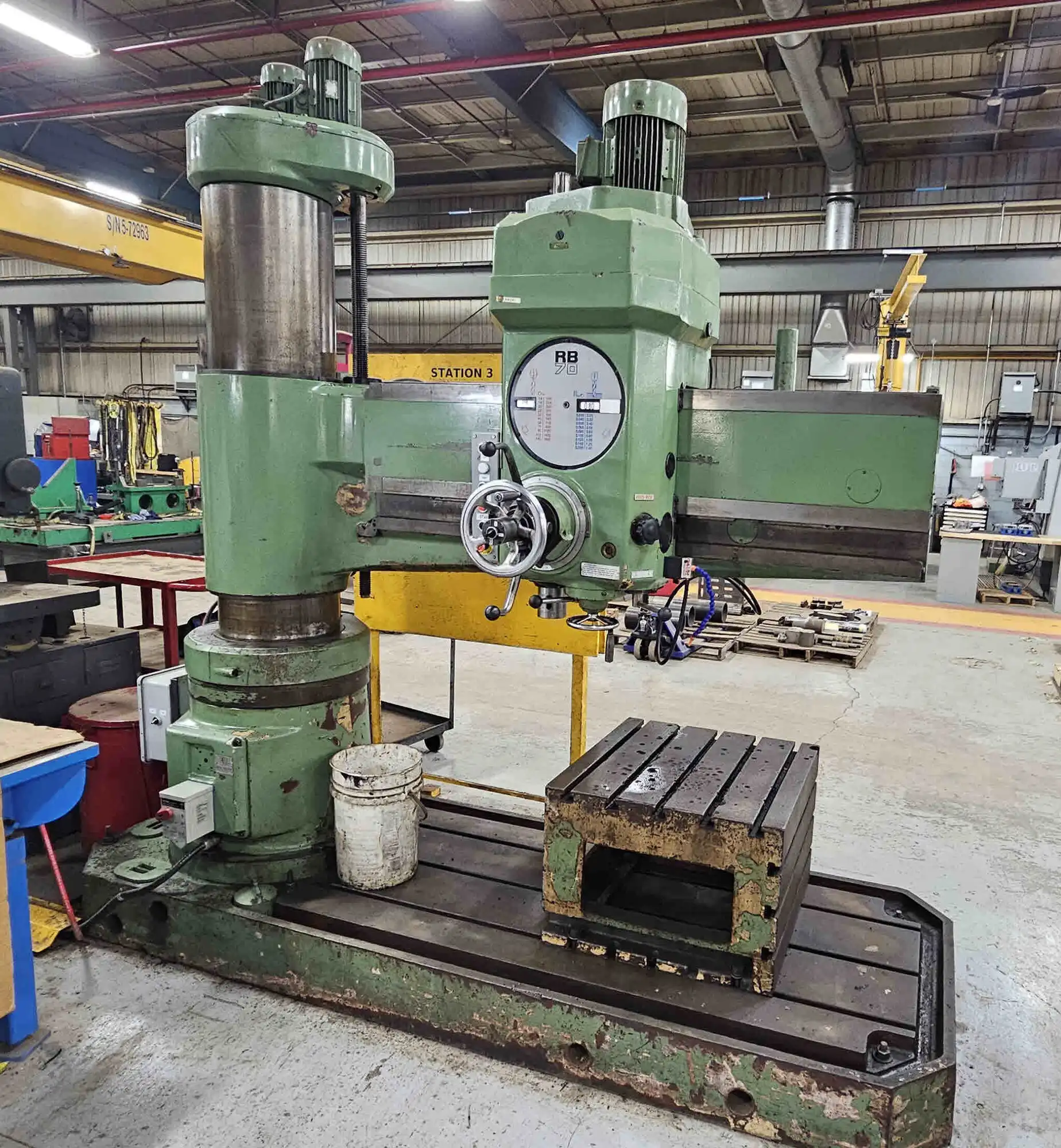

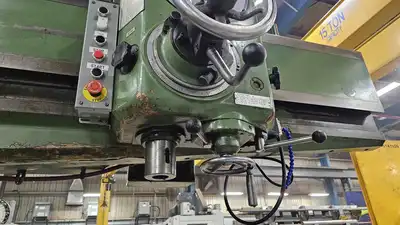

USED 1998 POBEDA RB-70-1600
Overview
Description
Machine is in Excellent Condition & Ready For Inspection.
Specifications
| Arm Length | 63" | 1.6 m |
|---|---|---|
| Column Dia. | 16" | 406.4 mm |
| Power | 7.5 kW | 10.1 hp |
| RPM | 1,800 RPM | 1,800 RPM |
| Dimensions | 116”L x 40”W x 119”H | 116”L x 40”W x 119”H |
| Weight | 10,500 Lbs | 10,500 Lbs |
Specifications:
Model - RB70-1600
Year - 1998
Arm Length - 63”
Drilling Capacity (Mild Steel) - 3.14”
Vertical Arm Travel - 43.3”
Spindle Travel - 15”
Spindle Diameter - 3”
Column Diameter - 16”
Distance From Spindle To Table - 19” to 63”
Spindle Taper - MT#5

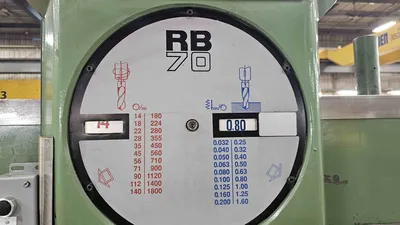

Spindle Speeds - 14 to 1800 RPM
Feed Rates - 0.032 to 1.60 IPR
Main Motor - 7.5 KW
Electrics - 550V/3PH/60HZ
Made In - Yugoslavia
Approximate Weight - 10,500 LBS
Approximate Overall Dimension - 116”L x 40”W x 119”H
Equipped With:
Heavy Duty Box Table (28”x28”x20”)
Power Elevation
Coolant System
