ADD OPTIONAL NITROGEN GENERATOR REQUEST A QUOTE

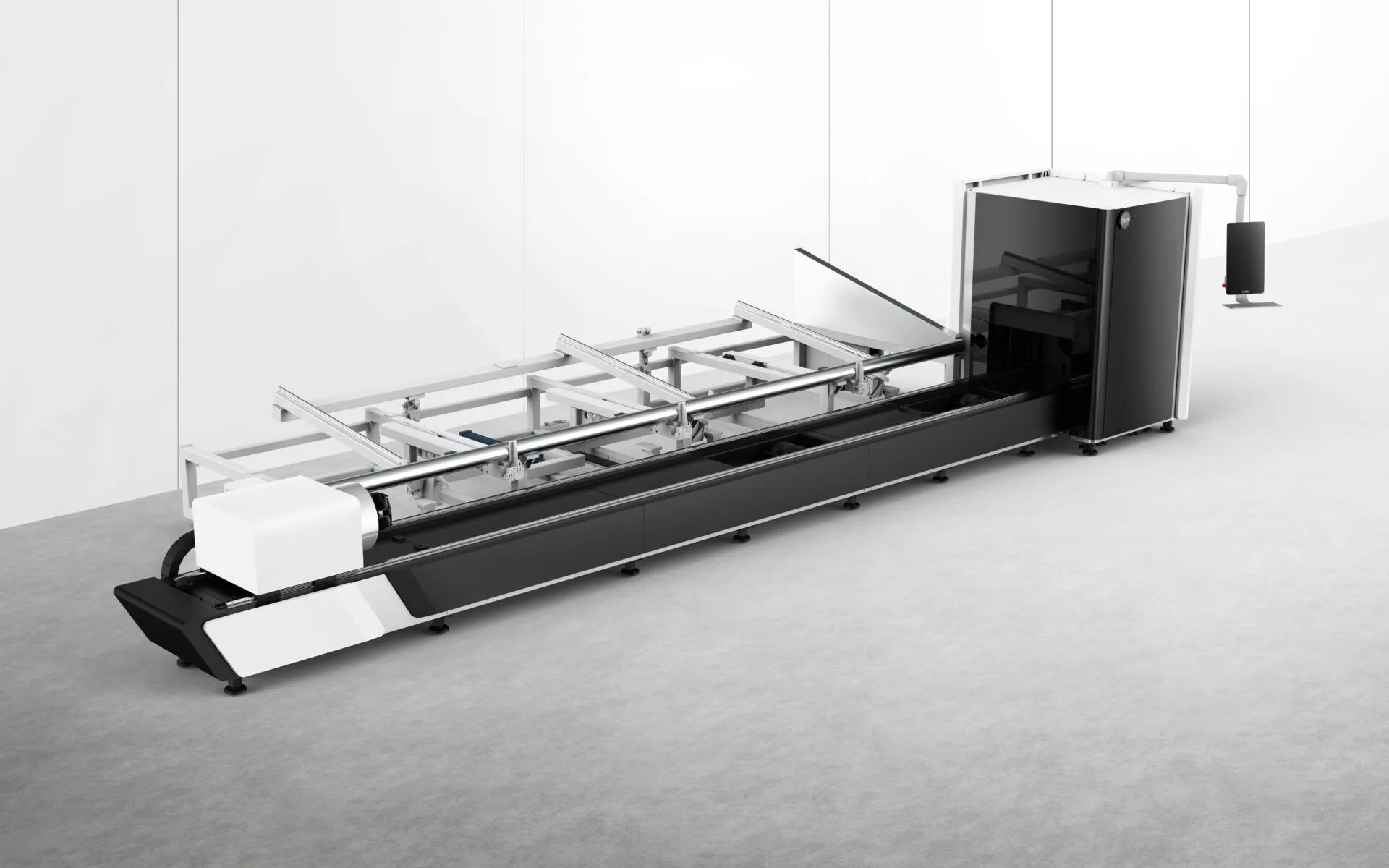

Bodor Laser has launched the K Series laser tube cutting machine to address the issue of high operational barriers in the market. This machine integrates features such as high-speed chucks, fast clamping response in 2S, ultra-short tail material, and a one-click start. It is designed to provide a simple, safe, and environmentally friendly tube cutting solution.
| Sheet-W | 0.4 m | 14.173" |
| Sheet-L | 6 m | 236.22" |
| Wattage | 1000 w | 1,000 W |
| IPM | 30 mpm | |
| X | 6 m | 236.22" |
| Y | 0.4 m | 14.173" |
| Z | 0.4 m | 13.78" |
| Control | CNC (BODOR THINK) | CNC (BODOR THINK) |
| Dimensions | 39 X 8' X 8' | 39 X 8' X 8' |
| Weight | 16000 | 16000 |
K3 Classic Model Bodor K
1/4" ~ 14" Round Tube Diameter
1/4"~ 14" Square Tube Side Length
30' Max. Raw Material Length
1110 LBS Max. Tube Weight
85r/min Max. Chuck Rotation Speed
1G Max. Acceleration
9545 mm * 2335 mm * 285 0mm WORKING MATERIAL LENGTH
41' X 6' X 7' Overall Dimensions
