| X Axis | 59.06" | 1,500.1 mm |
| Y Axis | 33.86" | 860.04 mm |
| Z Axis | 29.53" | 750.06 mm |
| Power | 25 kW | 33.5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 32 | 32 |
| Taper | 50 | 50 |
| Table-W | 33.86" | 860.04 mm |
| Table-L | 66.93" | 1,700 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 18i-M) | CNC (Fanuc 18i-M) |
| Dimensions | 174″ x 131″ x 121″ High Approx. | 174″ x 131″ x 121″ High Approx. |
| Weight | 39,683 lbs. Approx. | 39,683 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc 18i-M series CNC Control
Box Way construction
PCMCIA Card Slot
Rigid Tapping
Coolant System
Travels:
X-Axis: 59.06″
Y-Axis: 33.86″
Z-Axis: 29.53″
X, Y Axis Rapid Traverse rates: 591 IPM
Z Axis Rapid Traverse rates: 472 IPM
Cutting Feedrate: 197 IPM
Spindle Nose to Table (Min.- Max.): 5.91″ – 35.43″

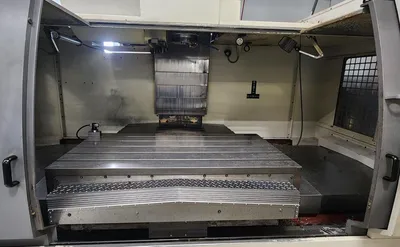

Table:
Length: 66.93″
Width: 33.86″
T-Slot x Size x Pitch: 5 x 0.87″ x 5.91″
Max Weight on Table: 4409 lbs
Spindle:
Taper Size: 50
Speed Range: 45 - 10,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Length: 13.78″
Max Tool Diameter : 4.33″ – 7.48″
General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 45 kva / 3-Phase
Overall Dimensions: 174″ x 131″ x 121″ High Approx.
Weight: 39,683 lbs. Approx.
32 Station Automatic Tool Changer
50 Taper Spindle
10,000 RPM Direct Drive Spindle

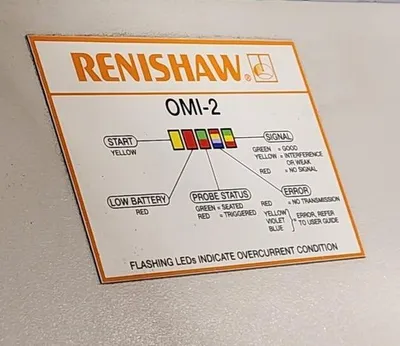

Renishaw Probing System (Probe Needed)
Tool Presetter

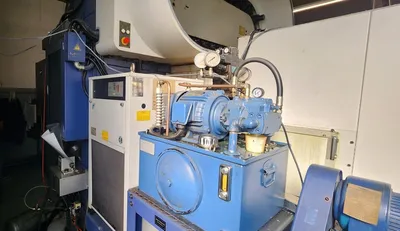

Spindle Chiller Unit
MPG Handwheel Control
Chip Conveyor
