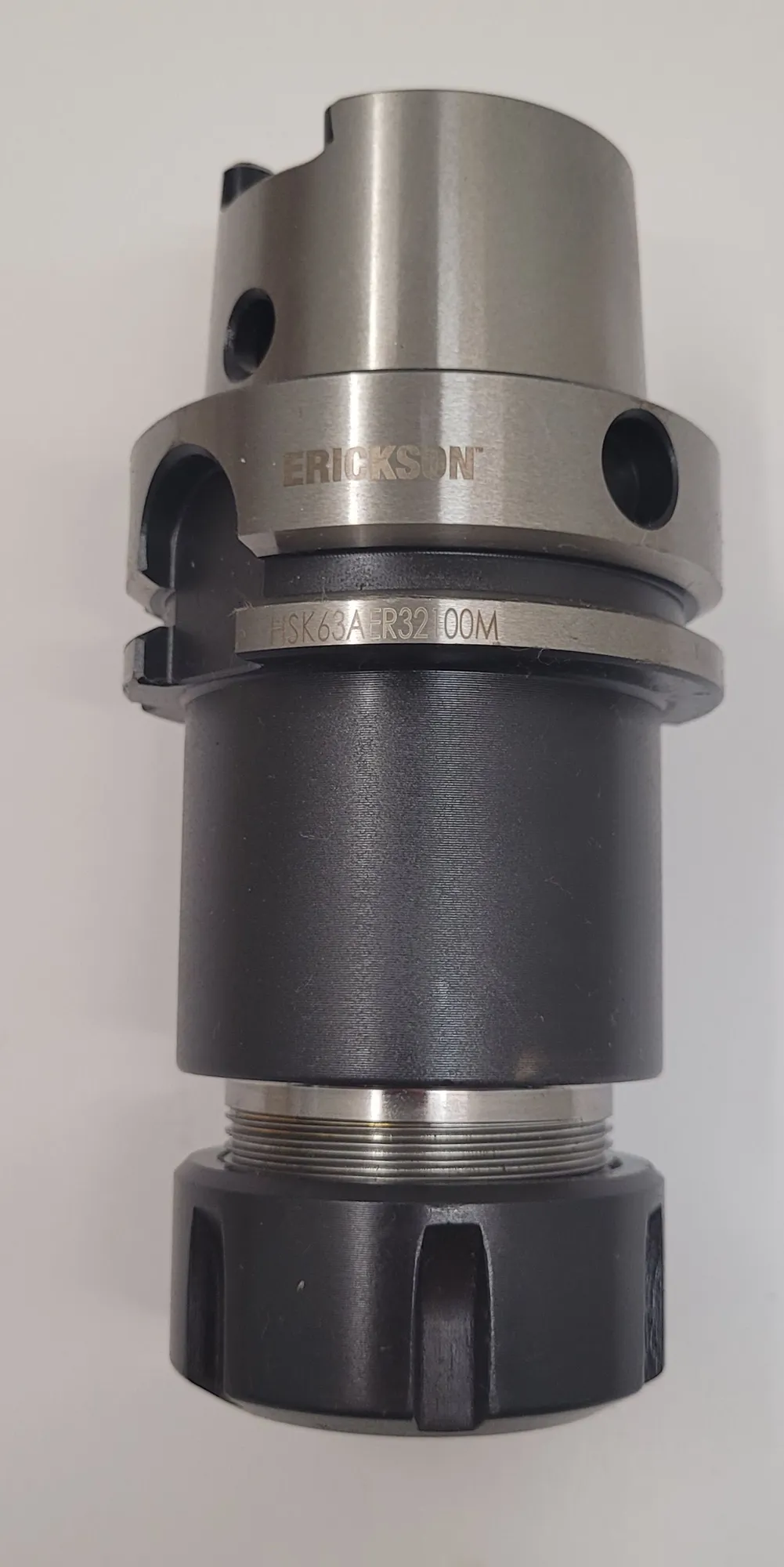

NEW ERICKSON HSK63AER32100M

New ERICKSON HSK63AER32100M Collet Chuck, 100mm Pro, still in box. Features 50mm lock nut diameter, 100mm gage length, and 45mm clamping length. Experience reliable performance with a 136 Nm torque capacity. Model: HSK63AER32100M. 1.38 kg weight.

Erickson HSK63AER32100M Collet Chuck 100mm Pro

Still in Box
Brand: Erickson
Part Number: HSK63AER32100M
ISO Catalog ID HSK63AER32100M
[CST] Catalog Collet Series ER32
[D11] Lock Nut Diameter 50 mm
[L1] Gage Length 100 mm
[L9] Clamping Length 45 mm
[V] Adjustment Range 13 mm
Weight Kilograms 1.38
Counter Bore Collet Torque Nm 136
Straight Collet Torque Nm 136
Stop Screw ID Drive Size 4 mm & 5/32
