| size | 492" X 120" | 492" X 120" |
| Sheet-W | 122" | 3,098.8 mm |
| Sheet-L | 161" | 4,089.4 mm |
| Wattage | 4000 w | 4,000 W |
| X | 161" | 4,089.4 mm |
| Y | 122" | 3,098.8 mm |
| Z | 11" | 279.4 mm |
| Control | CNC (GE FAnuc 160IL CNC Control) | CNC (GE FAnuc 160IL CNC Control) |
| Dimensions | 96' X 33' X 8' | 96' X 33' X 8' |
| Weight | 105000 | 105000 |

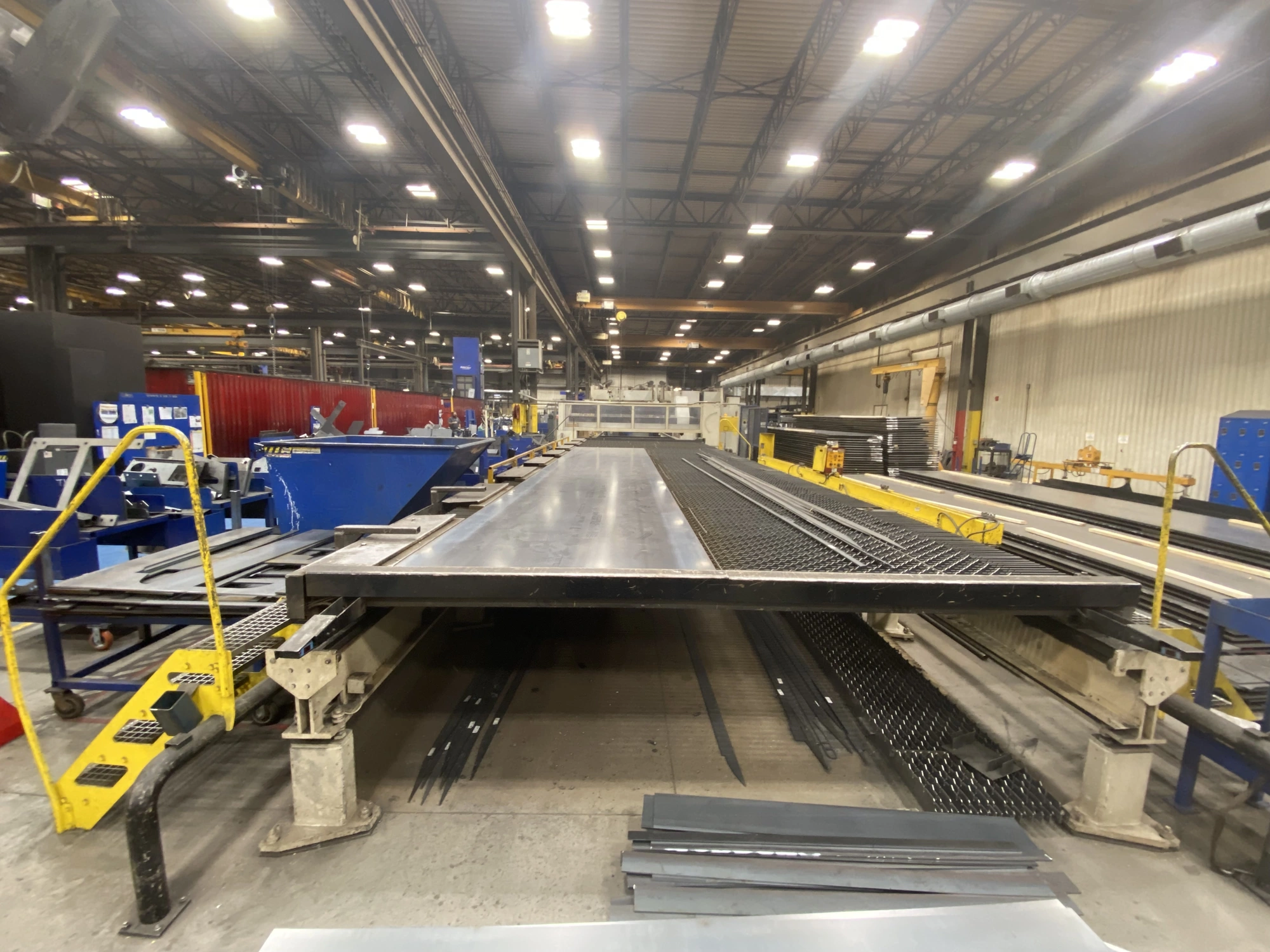

LVD Strippit Model Impulse 4000 Watt Laser Cutting System
Maximum Plate Size: 492" X 120"
X-Axis Travel: 122"
Y-Axis Travel: 161"
Z-Axis Travel: 11"
Maximum Positioning Speeds:
X-Axis: 2362 IPM
Y-Axis: 2362 IPM
Z-Axis: 944 IPM
Repetitive Accuracy: +/- 0.0008"
Positioning Accuracy: +/- 0.002"/40"
Voltage: 220/460v, 3PH +/= 10%
Compressed air (Dry Air Required) 90-100 PSI
Laser gases Nitrogen (N2)
Carbon Dioxide (CO2)
Cutting Gases:
02-300 PSI Maximum
N2-430 PSI Maximum
Minimum Delivery -300 PSI
Dimensions:
Machine with shuttle tables: 96' X 33' X 8' approximate
Weight: 105,800 pounds
Electricity at full load: 95KVA 4000W
130KVA 6000W
GE Fanuc 160IL CNC Control
