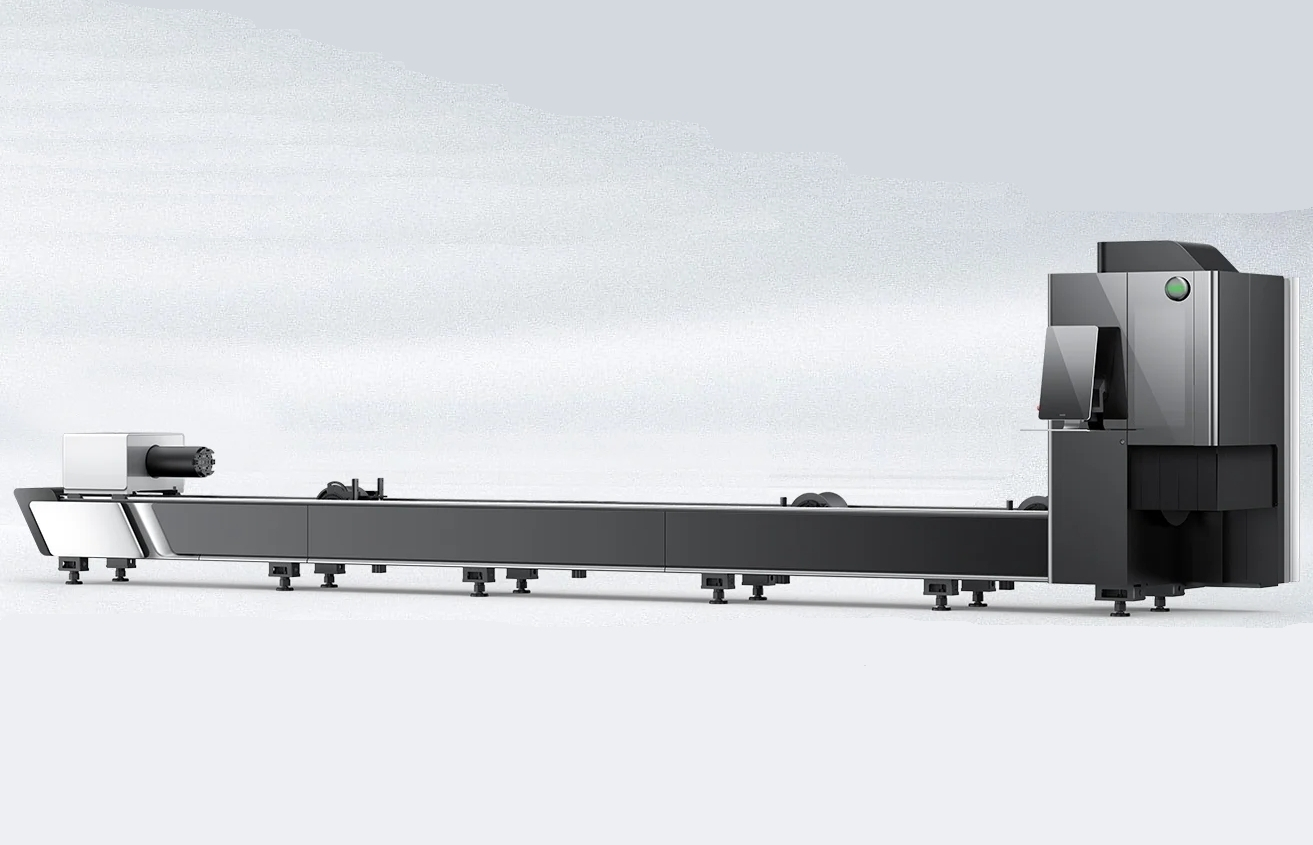

Bodor K2, 8-230mm dia., 6477 / 9195mm max tube length, laser output power 6000W / 3000W / 1500W, 5 Year Warranty
| Capacity 1st Dim | Round Tube Cutting Diameter: 8-230mm | Round Tube Cutting Diameter: 8-230mm |
| Capacity 2nd Dim | Maximum tube length: 6477mm/9195mm | Maximum tube length: 6477mm/9195mm |
Laser Output Power: 6000W / 3000W / 1500W
Effective Round Tube Cutting Diameter: φ8-φ230mm
Effective Square Tube Cutting Diameter: □8-□230mm
Rectangular tube Edge Length: 8-230mm
Maximum tube length: 6477mm/9195mm
Maximum tube weight: 300kg
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 90m/min
Y axis maximum speed: 60m/min
5 Year Warranty
Installation, Delivery, and Training Included with Price
Expert High Speed Cutting Database
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
