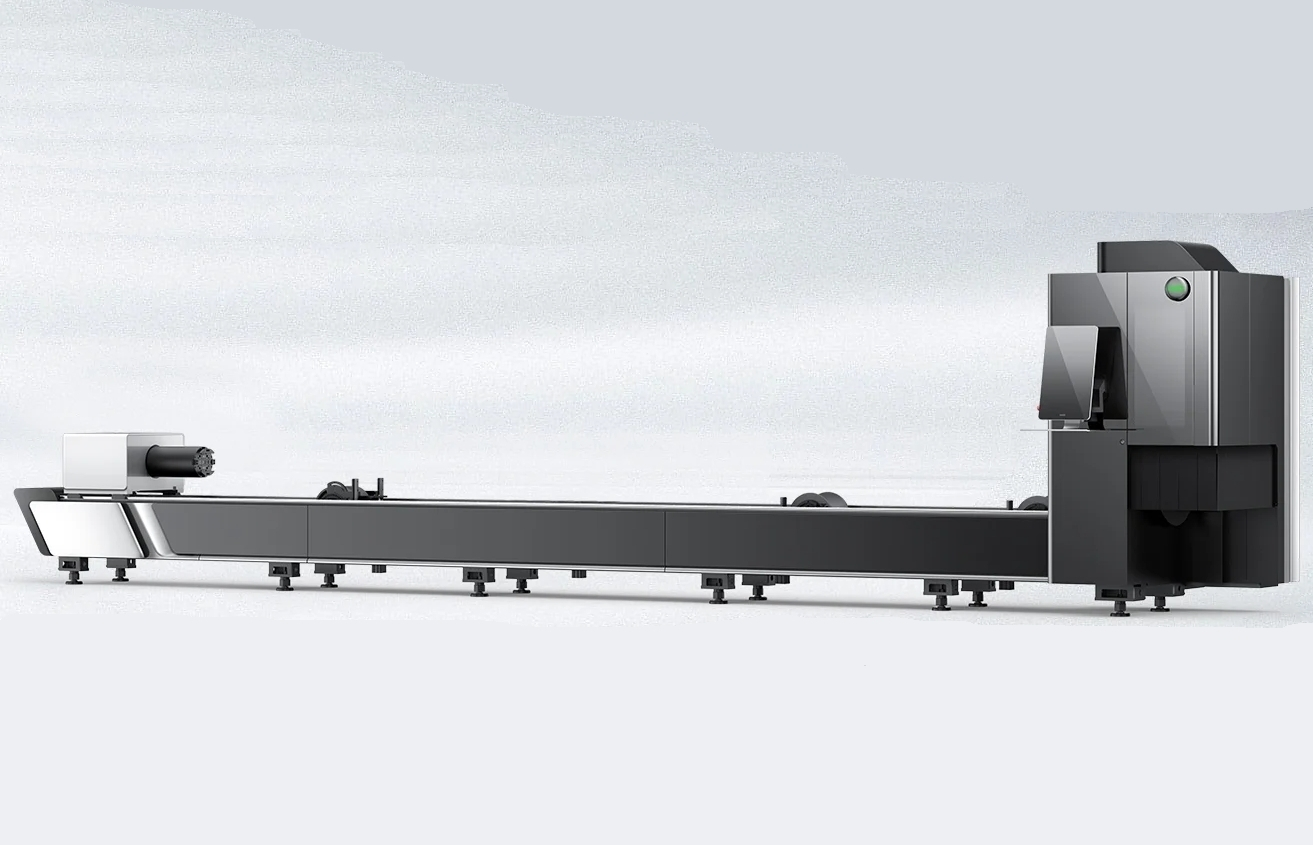

Bodor K1, 6-120mm dia., 6477mm max tube length, laser output power 6000W / 3000W / 1500W, 5 Year Warranty
| Capacity 1st Dim | Round Tube Cutting Diameter: 6 - 120mm | Round Tube Cutting Diameter: 6 - 120mm |
| Capacity 2nd Dim | Maximum tube length: 255" (6477mm) | Maximum tube length: 255" (6477mm) |
Laser Output Power: 6000W / 3000W / 1500W
Effective Round Tube Cutting Diameter: 6 - 120mm
Effective Square Tube Cutting Diameter: 6 - 110mm
Rectangular tube Edge Length: 6 - 110mm
Maximum tube length: 255" (6477mm)
Maximum tube weight: 80kg
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm ±0.03mm
X axis maximum speed: 100m/min
Y axis maximum speed: 60m/min
5 Year Warranty
Installation, Delivery, and Training Included with Price
Expert High Speed Cutting Database
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
