24 Position Side Mount Tool Changer, Programmable Coolant
| size | 40" x 20" x 25" | 40" x 20" x 25" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 25" | 635 mm |

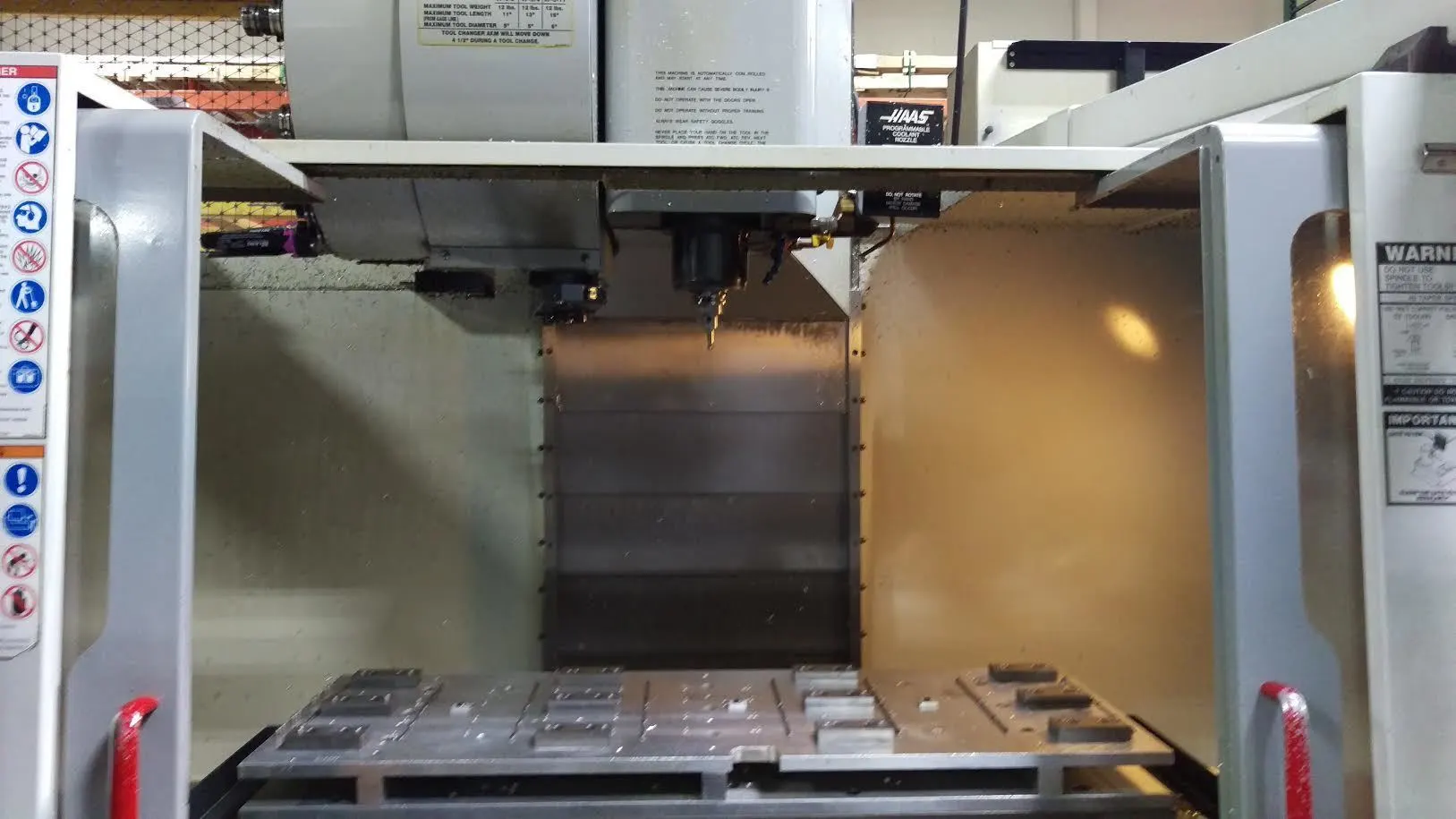

Haas Model VF-3 Vertical Machining Center
Table Size: 18" x 48"
Spindle Nose to Tabletop: 4" - 29"
Max Table Load: 3500 lbs
Taper: Cat 40 Taper
X-Cross/Long: 40"
Y-Saddle: 20"
Z-Spindle/Vert: 25"
Positions ATC: 24
Max RPM: 7500
Motor HP: 20 HP
Weight: 12,000 Lbs
Mach Dims: 118"L x 110"W x 120"H
Electrics: 208/230/3/60 40 AMPS
Equipped With:
HAAS CNC CONTROL
12" Color CRT
Remote coolant tank
Side Mount Tool Changer
Rigid Tapping
Auger attached
Programmable Coolant Nozzle
Hours
SERVO 4415, MOTION 17878, SPINDLE 18386
