USED 2005 MODERN CHALLENGER BCN

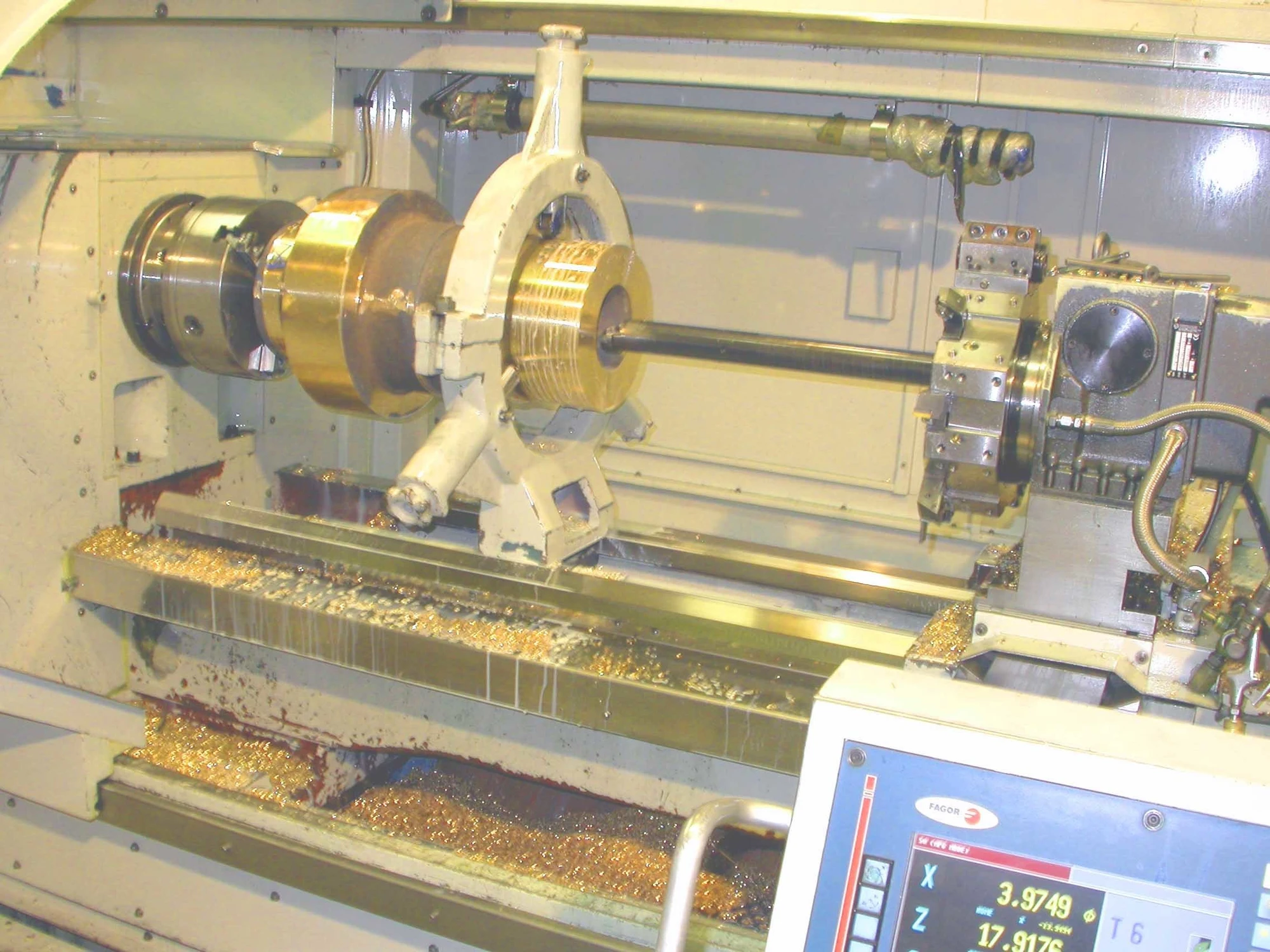

Modern Challenger Model BNC-28120XL 28" x 120" Flat Bed CNC Lathe
Swing over Bed: 28"
Swing over Gap: 35.5"
Swing over Cross Slide: 18.1"
Distance between Centers: 120"
Spindle Nose: D1-8 Camlock
Spindle Bore: 4 1/8"
3 Speed Headstock (hydraulic shift): 30-1800 RPM
Main Motor Drive: 20 HP
Turret Arrangement: 8 Position Turret
Complete With:
Fagor 8055TC CNC Control
12" 3 Jaw Chuck
20" 4 Jaw Chuck
40-280 mm Roller Steady
130-380 mm Roller Steady
5 MT Tailstock Taper
Portable MPG
Auto Lub
Chip Conveyor and Wash down
Additional Manual Quick Change Toolpost c/w 4 Holders
8-position turret
Spade drills
1-1/8" x 18" Gun Drill
6" 3-jaw Rotating Tailstock Chuck
8" 4-jaw Rotating Tailstock Chuck
Live Centers
208, 230 or 600V Primary Transformer - Choice Of Transformers
All Available Tooling
