DOALL C4100NC 16" x 16" Horizontal Band Saw
| size | 16" x 16" | 16" x 16" |
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 14" | 355.6 mm |
| Power | 10 hp | 7.5 kW |
| Blade Thickness | 1.5" | 38.1 mm |
| Blade Length | 186" | 4,724.4 mm |
| Weight | 6000 | 6000 |

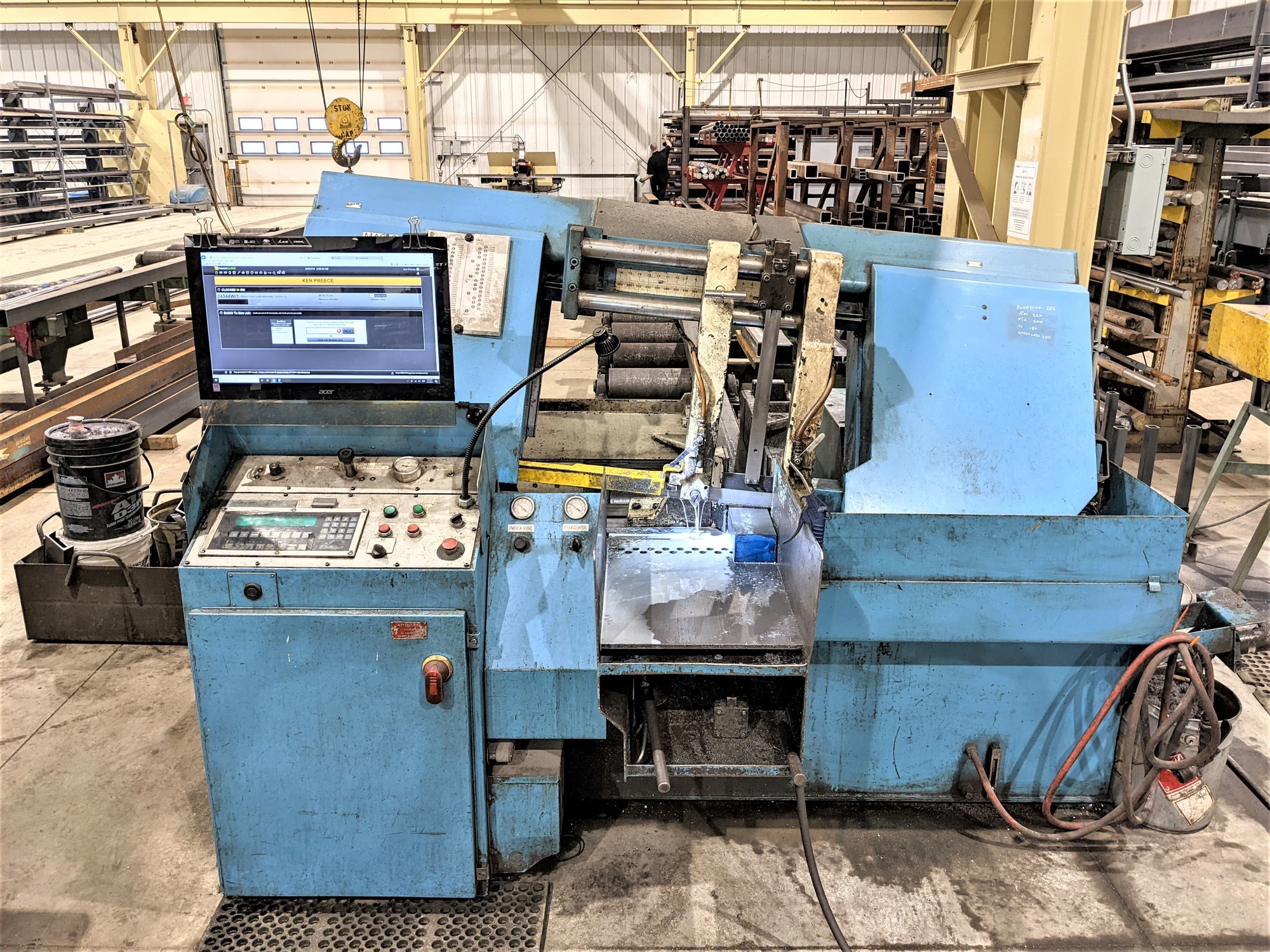

DOALL Model C-4100NC Production Type Horizontal Band Saw
Capacity ( Round ): 16"
Capacity ( Rectangular ): 16" X 16"
Blade Size: 186" X 1-1/2"
Blade Speed ( Variable ): 40 TO 360 FPM
Single Automatic Index Length: 24"
Main Drive Motor: 10 HP 230/460/3/60
IniOP NC Programmable Control
Capable of Programming up To 99 Job Selections
Exit Roll Conveyor
