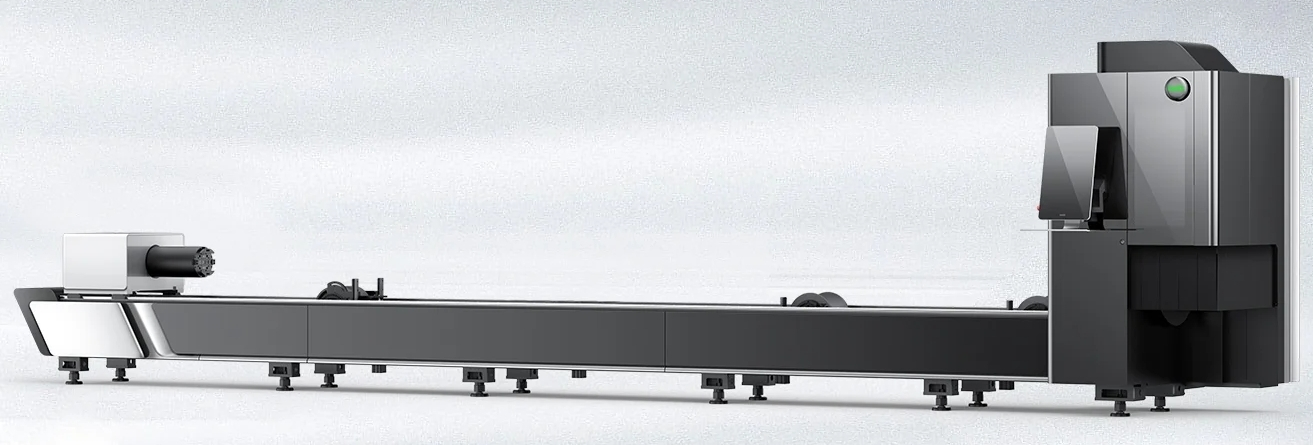

NEW BODOR K Series
Overview
Bodor K Series, Entry Level Tube Laser Cutting Machine, 5 Year Warranty, installation/training and delivery included in price, Laser Power Options from 1.5kW to 12 kW, Round Tube Diameters ranging from .23" up to 250", Square Tube Diameters ranging from .23" up to 350.23", Maximum Tube Lengths ranging from 255" up to 472"
Specs
Bodor K2 Laser:
Laser Output Power: 6000W / 3000W / 1500W
Effective Round Tube Cutting Diameter: φ8-φ230mm
Effective Square Tube Cutting Diameter: □8-□230mm
Rectangular tube Edge Length: 8-230mm
Maximum tube length: 6477mm/9195mm
Maximum tube weight: 300kg
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 90m/min
Y axis maximum speed: 60m/min
Bodor K3 Laser:
Laser Output Power: 6000W / 3000W
Effective Round Tube Cutting Diameter: φ25-φ356mm
Effective Square Tube Cutting Diameter: □25-□356mm
Rectangular tube Edge Length: 25-356mm
Maximum tube length: 6477mm/9195mm/11989mm
Maximum tube weight: 500kg
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 90m/min
Y axis maximum speed: 60m/min
Bodor K5 Laser:
Laser Output Power: 12000W / 6000W
Effective Round Tube Cutting Diameter: φ150-φ500mm
Effective Square Tube Cutting Diameter: □150-□500mm
Rectangular tube Edge Length: 150-500mm
Maximum tube length: 11989mm
Maximum tube weight: 12000kg
X/Y-axis positioning accuracy: ±0.05mm/m
X/Y-axis repositioning accuracy: ±0.03mm
X axis maximum speed: 35m/min
Y axis maximum speed: 30m/min
Equipped With
5 Year Warranty
Installation, Delivery, and Training Included with Price
Expert High Speed Cutting Database
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-side Edge Searching, Higher Precision
Pneumatic Chuck
BodorThinker Software
