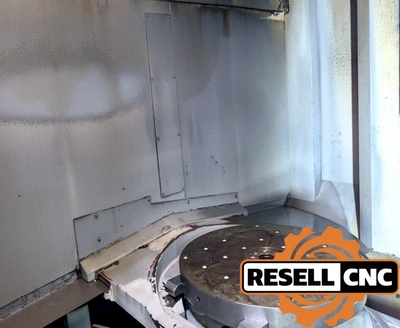

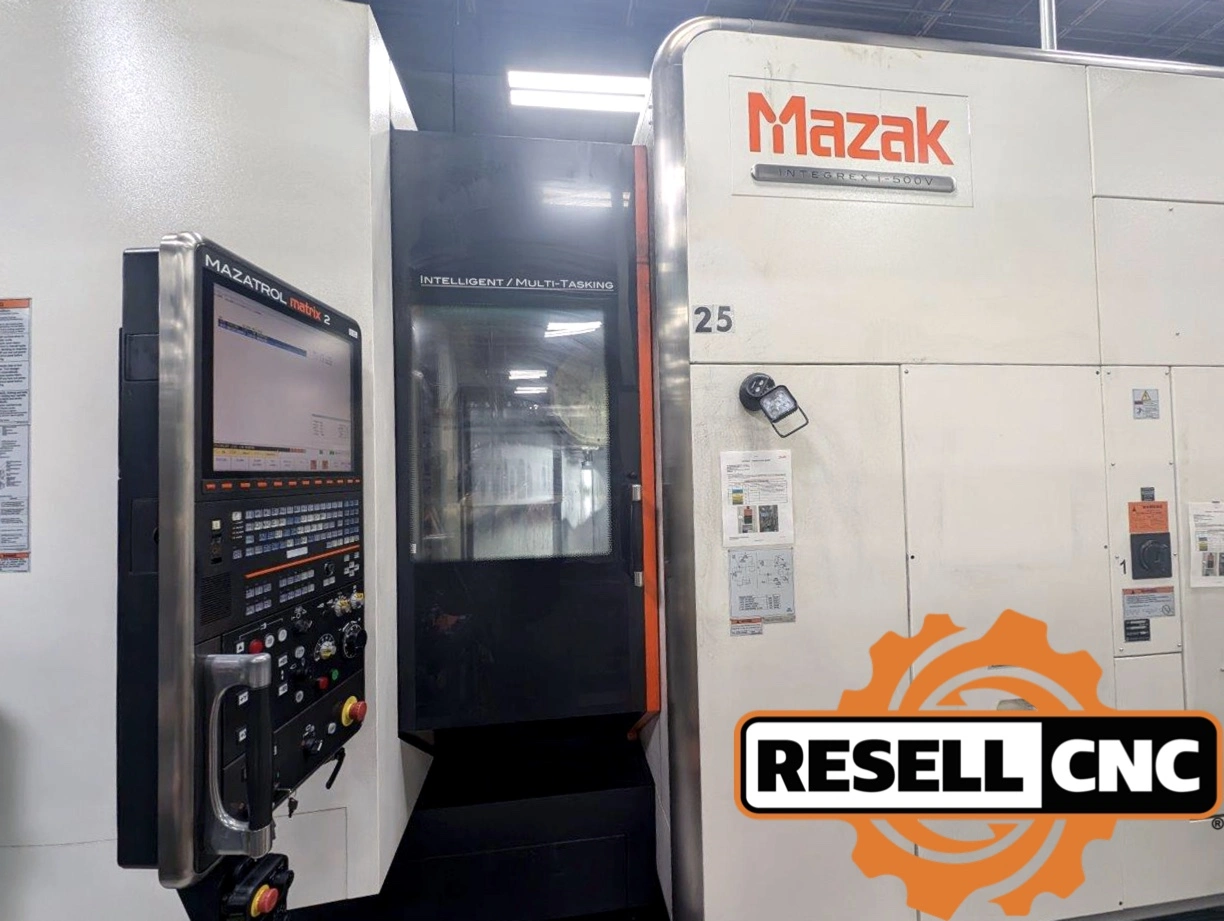

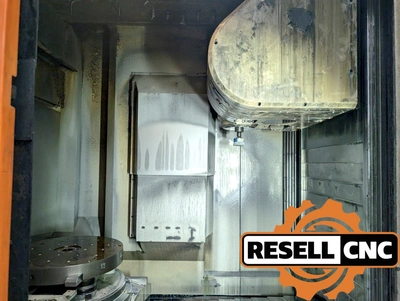

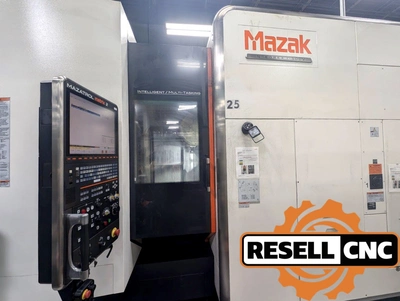

USED 2012 Mazak Integrex i-500V

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Overload Detection System

Additional Machine Specs: Travels:

- C-Axis: 360°

- B-Axis: 150°



Max. Cutting Diameter 28.74"

Milling Spindle:

- Speed: 12,000 RPM

- Motor: 30 HP



Mayfran Magsep Chip Conveyor

Manual Rotation of 2 Piece Loading Station

Mazak Super Flow T8 High Pressure Coolant System

Niagara Coolant

Spindle Chiller

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Mazatrol Matrix 2 CNC Control
Coolant Psi: 115.0
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
High Pressure Coolant Psi: 1000.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Pallet Changer, Tool Parts Probe, Automatic Tool Length Measurement System, Tool Eye
Max Tool Diameter: 3.74
Max Tool Diameter Adjacent: 5.91
Max Tool Length: 15.75
Max Tool Weight: 26.46
Number Of Pallets: 2.0
Probe Make Model: Renishaw RMP600
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Speed: 1000.0
Spindle Taper Other: Capto C6
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Chain
Tool Magazine Capacity: 40.0
Twin Turret: false
Vertical Table Pallet Size: 24.02" x 24.02
X Travel: 43.31
Y Axis: false
Y Travel: 31.5
Z Travel: 35.43
