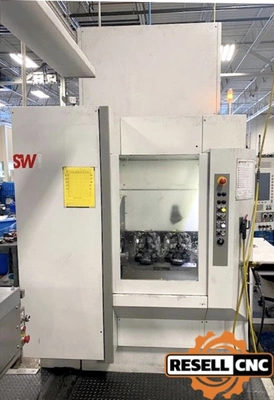

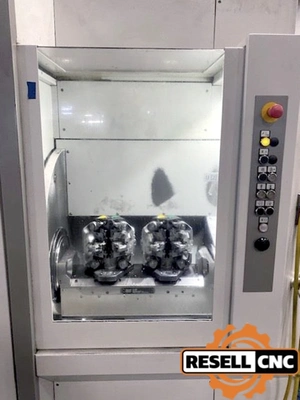

USED 2017 SW BA W02-22

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Max. A-Axis / B-Axis Prep for Mounting Fixture Plate: 16.73" x 24.8"

Workspace Per Spindle: 7.87" x 11.81" x 13.78"

Distance Between Spindles: 9.84"

Spindle Bearing: 1.97"



B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 1.75

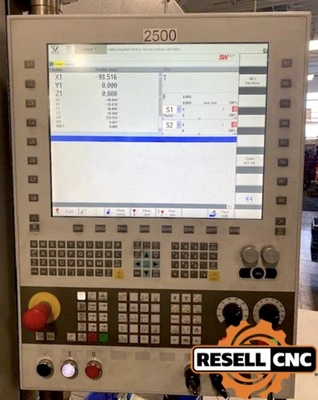

Control Make Model: Siemens Sinumerik 840D sl CNC Control
Horizontal Table Pallet Size In MM: 300.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 352.0
Max Tool Diameter: 1.77
Max Tool Diameter Adjacent: 4.33
Max Tool Length: 8.86
Max Tool Weight: 4.41
Number Of Pallets: 2.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 25
Spindle Speed: 25000.0
Spindle Taper Other: HSK-A40
Spindle Taper Type: Other
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: None
Tool Magazine Capacity: 20.0
Twin Turret: false
X Travel: 7.87
Y Axis: false
Y Travel: 13.78
Z Travel: 11.81
