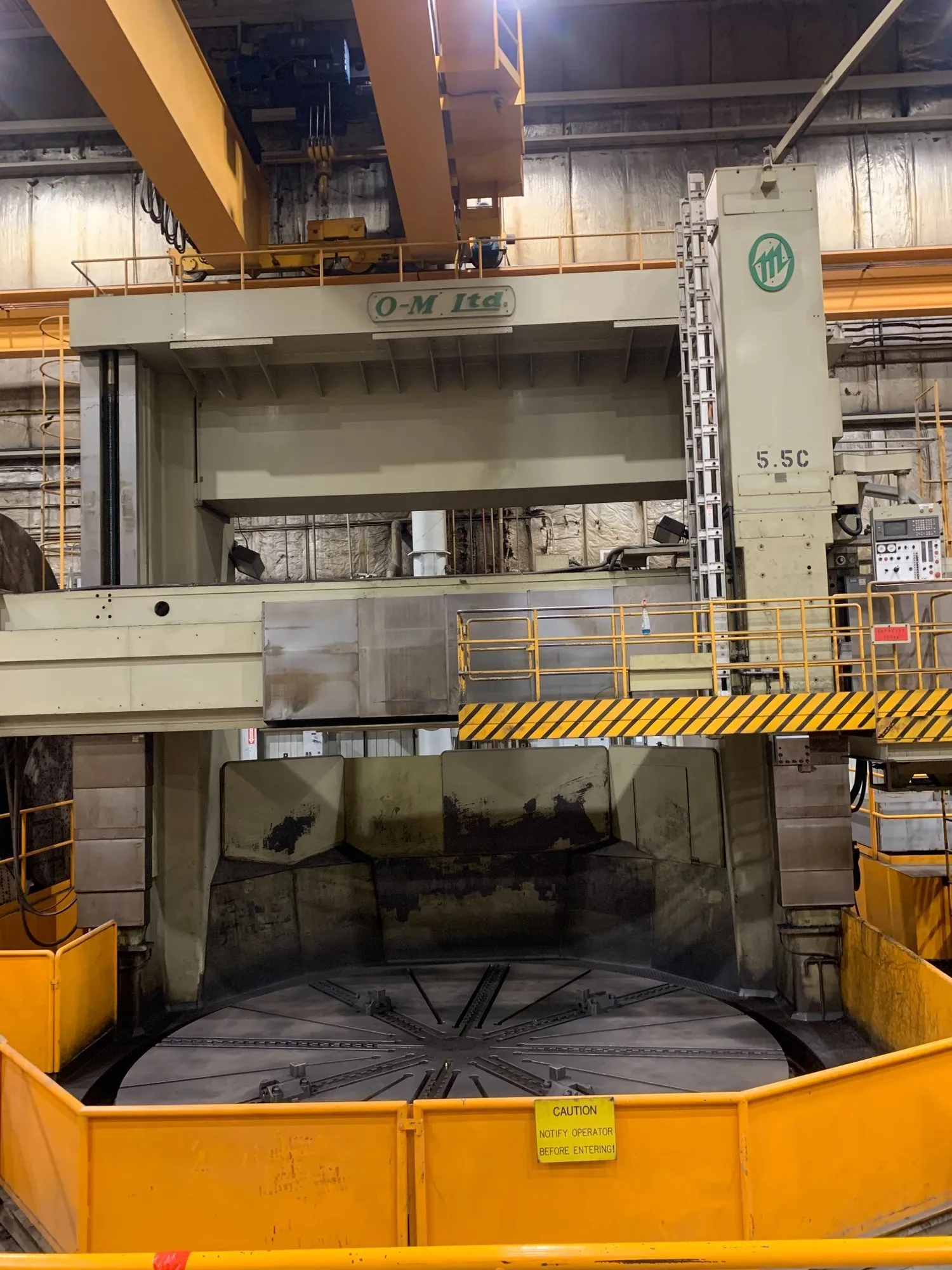

USED OM TMD-55/60N
Overview
Description
216" Table, 236" Swing, 145" Turning Height, Dual Fanuc 18-T CNC Controls
Specifications
| Chuck / Table Dia | 216" | 5,486.4 mm |
|---|---|---|
| Swing | 236" | 5,994.4 mm |
| Maximum Cutting Diameter | 236 in | |
| Work Ht-U/R | 145" | 3,683 mm |
| Vertical Travel X | 102 in | |
| Horizontal Travel Z | 79 in | |
| RPM | 45 RPM | 45 RPM |
| Power | 100 hp | 74.6 kW |
| Control | CNC (Fanuc 18tB) | CNC (Fanuc 18tB) |
216" O-M CNC Model TMD-55/60N Vertical Boring Mill (2000)
Table Diameter 216.53"
Maximum Turning Diameter 236.22"
Maximum Turning Height 145.66"
Horizontal Travel Of Rail Head 135.82"
Vertical Travel Of Cross Rail 102.36"
Ram Stroke 78.74"
Ram Cross Section 11.02"
Table Speed (3- Ranges) .3-45 Rpm
Table T-Slots (Nominal) 1.65"
Table Weight Capacity 132,277 Lbs
Table Motor 80 Hp / 100 Hp
Equipped With: Dual Fanuc 18tA / Fanuc 18tB CNC Controls
https://www.youtube.com/watch?v=zlKS7DrY2pE
Additional Video: https://youtu.be/g6rS1E86Qrs
Additional Video: https://youtu.be/Pq3yxDMAImA
Additional Video: https://youtu.be/IVDGV6st87k
Additional Video: https://youtu.be/cKLOqnRKW28
Additional Video: https://youtu.be/lHpsb%x8YKw
Additional Video: https://youtu.be/1KaurcUusJ4
Additional Video: https://youtu.be/-tUZhrCt%yg
Equipped With
Fanuc 18i-Tb CNC Control
Dual Operator Controls
T-Slotted Table With (4) Face Plate Type Jaws
Vertical Ram With Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation
Independent Operator Platform And Lift
Steel Sliding Way Covers
100 HP Table Drive
Manuals and documentation
