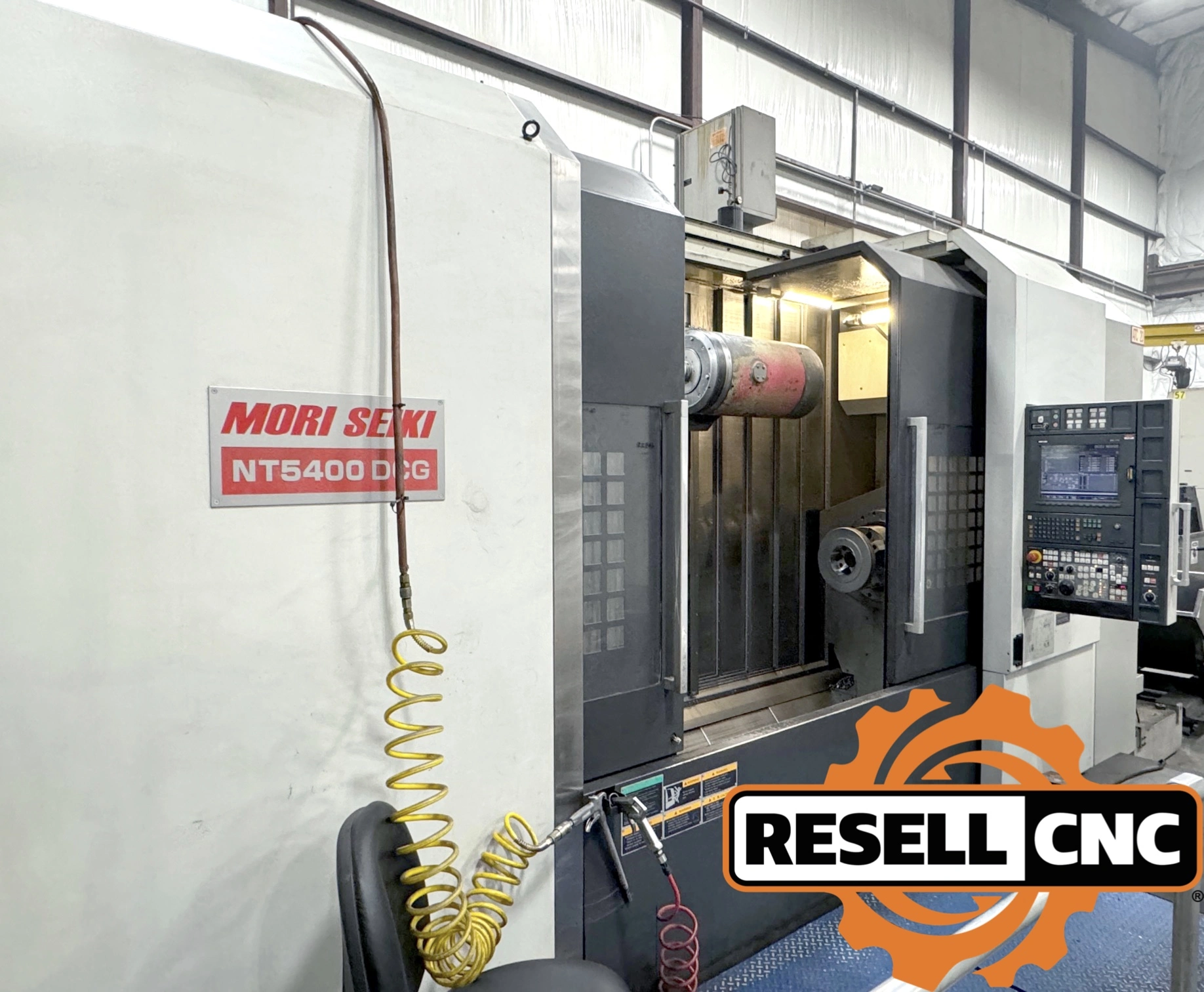

USED 2007 Mori Seiki NT5400/1800SZ

X2nd Chuck Description: 4-Jaw Chuck

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- Y-Axis: +/- 10"

- C-Axis: 0.001°



Probe Receiver

Bar Capacity: 4.0
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor

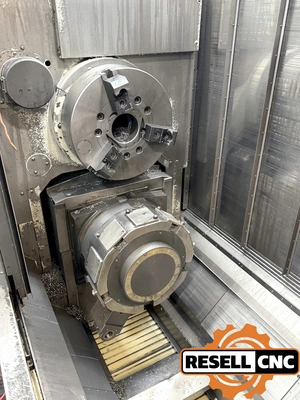

Chuck Description: 3-Jaw Chuck

Chuck Size: 18.0

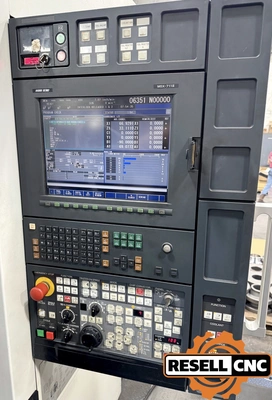

Control Make Model: Mori Seiki MSX-711III CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 70.86
Live Milling Hp: 40
Live Milling Max Rpm: 8,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Parts Probe
Max Cutting Turning Diameter: 36.2
Max Swing Over Bed: 36.2
Max Swing Over Cross Slide: 36.2
Max Turning Cutting Length: 75.6
Programmable Tailstock: false
Second Bar Capacity: 4.0
Second Chuck Size: 15.7
Second Spindle Bore: 4.7
Second Spindle Motor: 50
Second Spindle Speed: 2400
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 4.7
Spindle Motor: 50
Spindle Nose: A2-11
Spindle Speed: 2400.0
Sub Spindle: true
Tailstock: false
Tailstock Taper: C8
Tool Positions: 80.0
Total Spindles: 2
Turret Options: Spindle Taper: C8

Twin Turret: false
X Travel: 40.9
Y Axis: true
Z Travel: 76.4
