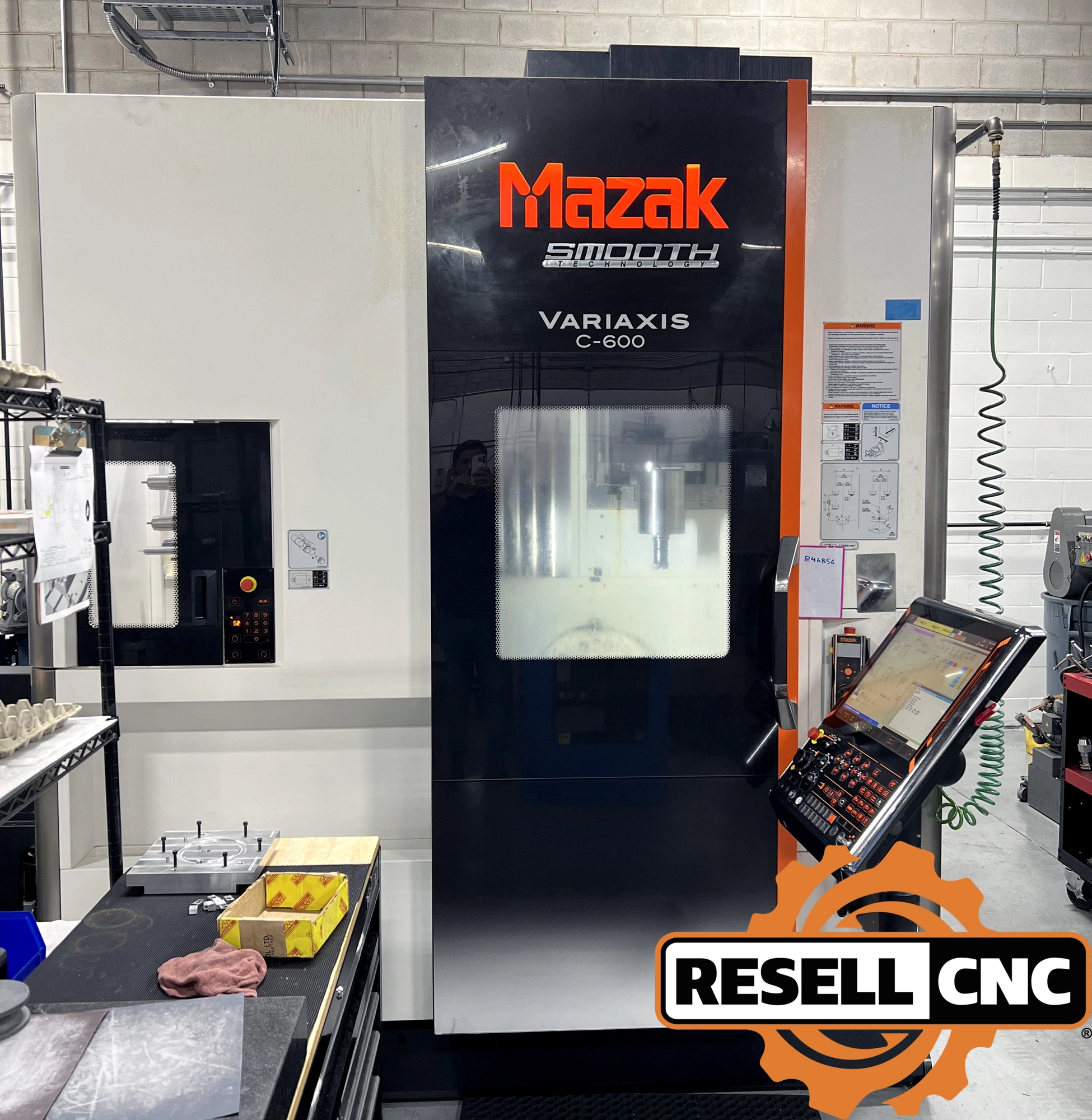

USED 2020 Mazak Variaxis C600

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Smooth Set and Inspect

Scale Feedback B and C Axis

Additional Machine Specs: Travels:

- B-Axis: -30° - +120°

- C-Axis: 360°



Laser Tool Measurement

Air Thru Spindle

LNS Turbo Micro Hinge 250 Chip Conveyor

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Mazak SmoothAi CNC Controller
Coolant Type S: High Pressure Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 1102.0
Max Tool Diameter: 3.15
Max Tool Diameter Adjacent: 5.12
Max Tool Length: 11.81
Max Tool Weight: 18.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Nose To Table Top: 1.97-22.83
Spindle Speed: 20000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 4.5
Tool Magazine Capacity: 60.0
Twin Turret: false
Vertical Table Pallet Size: 23.62" x 19.68
X Travel: 25.59
Y Axis: false
Y Travel: 21.65
Z Travel: 20.87
