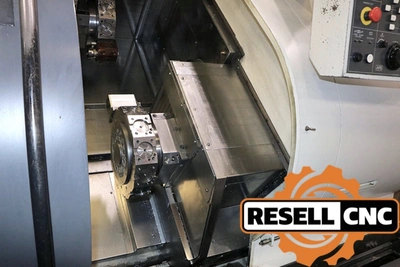

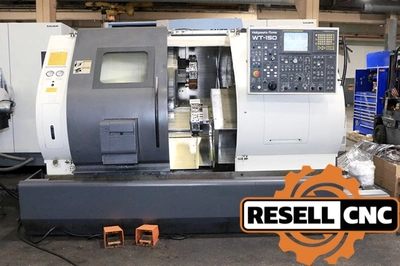

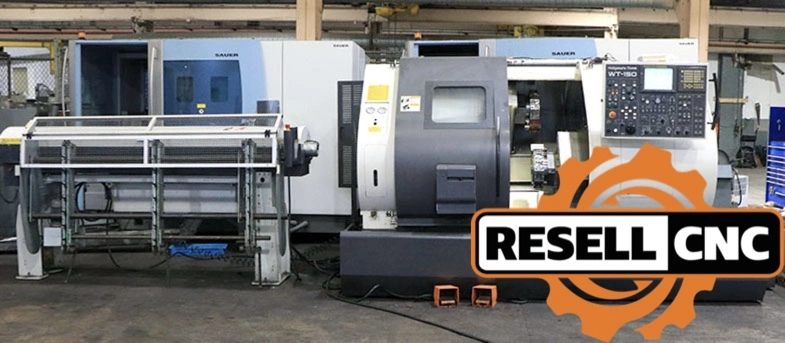

USED 2004 Nakamura-Tome WT-150

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- Y-Axis: 2.75"

- B-Axis: 21.65"

- C-Axis: 0.001°

- X2 Axis: 6.59"

- Z2 Axis: 18.31"



(8) Live Face Drill Holders

(8) Live Cross Drill Holders

All Available Static Tool Holders

Bar Capacity: 2.0

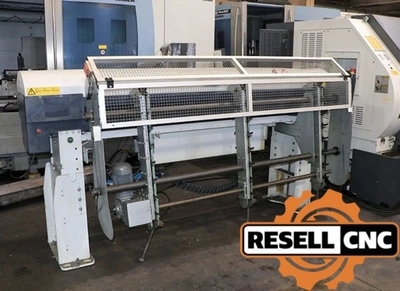

Barfeeder Make Model: LNS Quick Six
B Axis: true
B Axis Travel: 21.65"
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 6.0

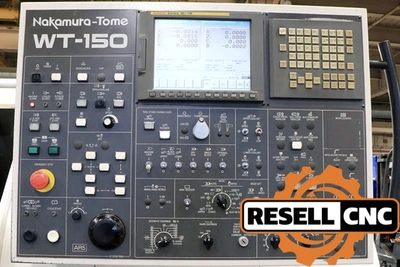

Control Make Model: Fanuc 18i-TB CNC Control
Distance Between Centers: 29.52
Live Milling Hp: 7.5
Live Milling Max Rpm: 3,600
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 7.48
Max Swing Over Bed: 7.48
Max Turning Cutting Length: 15.75
Programmable Tailstock: false
Second Spindle Motor: 15
Second Spindle Nose: A2-5
Second Spindle Speed: 5,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose: A2-5
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Change Time: 0.15
Tool Positions: 12.0

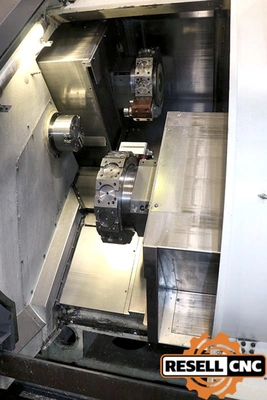

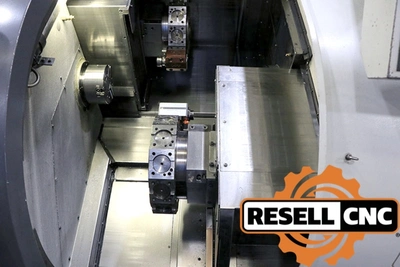

Twin Turret: true
X Travel: 6.2
Y Axis: true
Z Travel: 18.3
