X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Cylindrical Interpolation
Polar Coordinates Interpolation
Character Engraving System
Cs Contouring Control
Polygon Machining
Additional Machine Specs: Travels:
- Y-Axis: 3.94" (+2.36" / -1.57")
Coolant System
Misc. Live and Static Tooling
Assorted Spindle Liners
Bar Capacity: 2.52

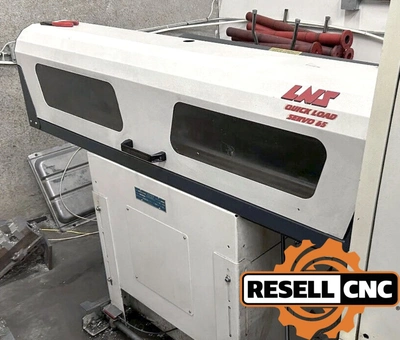

Barfeeder Make Model: LNS Quick Load Servo 65
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc 18i-T CNC Control
Coolant Psi: 100.0
Distance Between Centers: 41.26
Electrical: 240V / 3 Phase
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Barfeed Interface, Parts Catcher, Tool Presetter
Max Cutting Turning Diameter: 12.59
Max Swing Over Bed: 27.55
Max Turning Cutting Length: 23.62
Programmable Tailstock: false
Second Bar Capacity: 2.01
Second Spindle Bore: 2.87
Second Spindle Motor: 25
Second Spindle Nose: A2-6
Second Spindle Speed: 4,500
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 2.87
Spindle Motor: 25
Spindle Nose: A2-6
Spindle Speed: 4500.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Turret Options: Turret Type: Servo / Hydraulic Clamp
Twin Turret: false
X Travel: 8.66
Y Axis: true
Z Travel: 23.82
