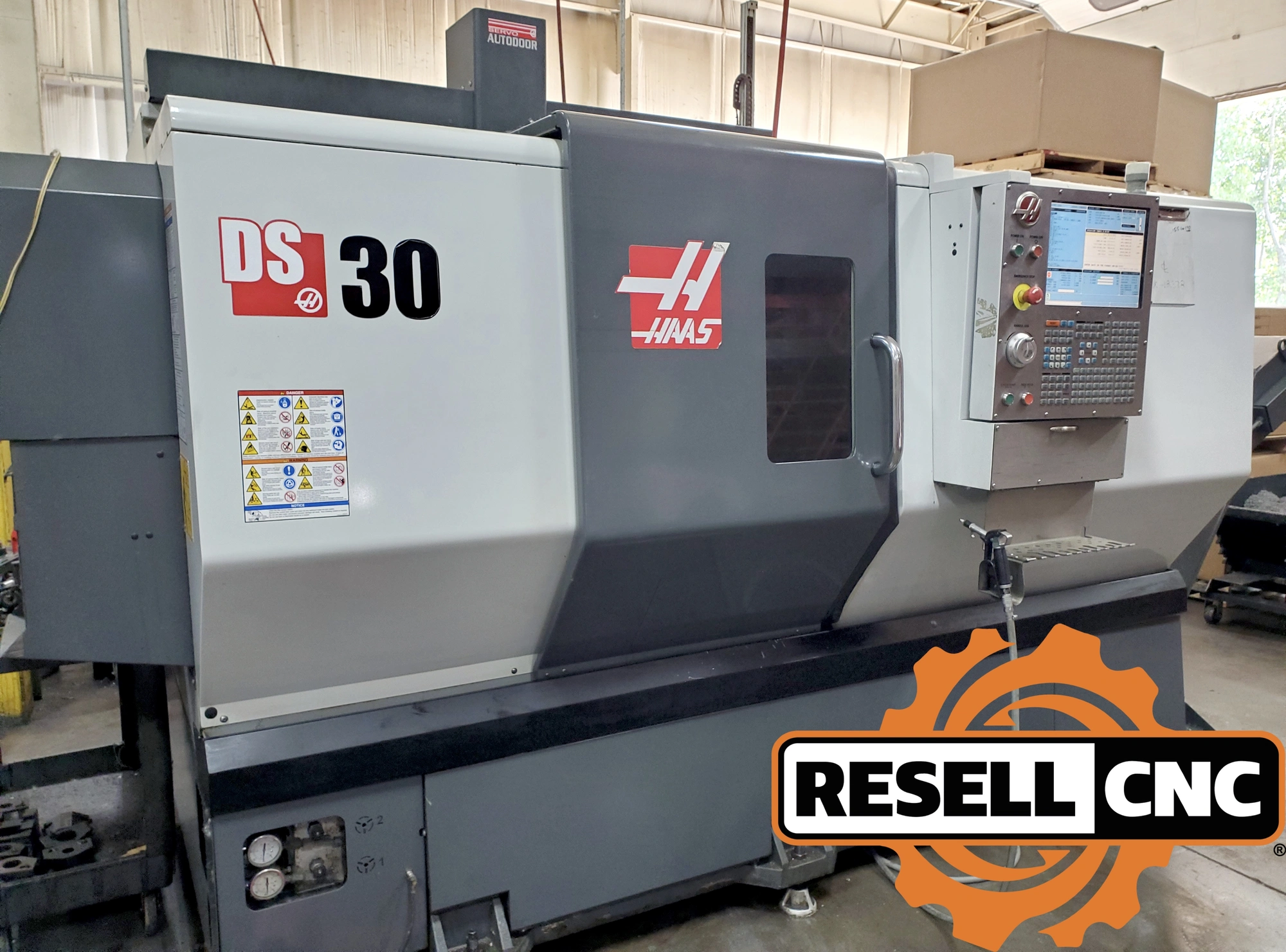

USED 2013 Haas DS-30

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Air Blast

Grease Lubrication System

Misc. Tooling

Approx Weight And Dims Of Accessories: The DS-30 conveyor measures: 24 x 62 x 160
The DS-30 external tank measures: 30 x 30 x 90
Bar Capacity: 3.0
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Size: 8.0

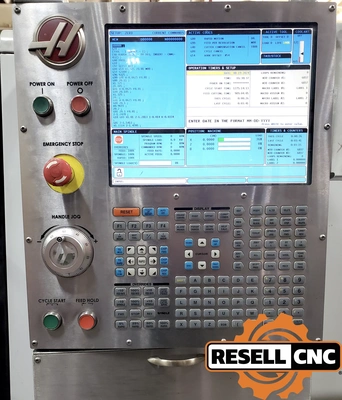

Control Make Model: Haas CNC Control
Control Options: Rigid Tapping, Spindle Orientation
Coolant Type S: Flood Coolant
Distance Between Centers: 25.98
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, VDI Turret
Max Cutting Turning Diameter: 17.99
Max Swing Over Bed: 31.75
Programmable Tailstock: false
Rapid Traverse: 472/945
Second Chuck Size: 8.3
Second Spindle Bore: 2.31
Second Spindle Motor: 25
Second Spindle Nose: A2-5
Second Spindle Speed: 4,000
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 3.5
Spindle Motor: 30
Spindle Nose: A2-6
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Options: VDI Hybrid Turret

Twin Turret: false
X Travel: 12.52
Y Axis: false
Z Travel: 25.98
