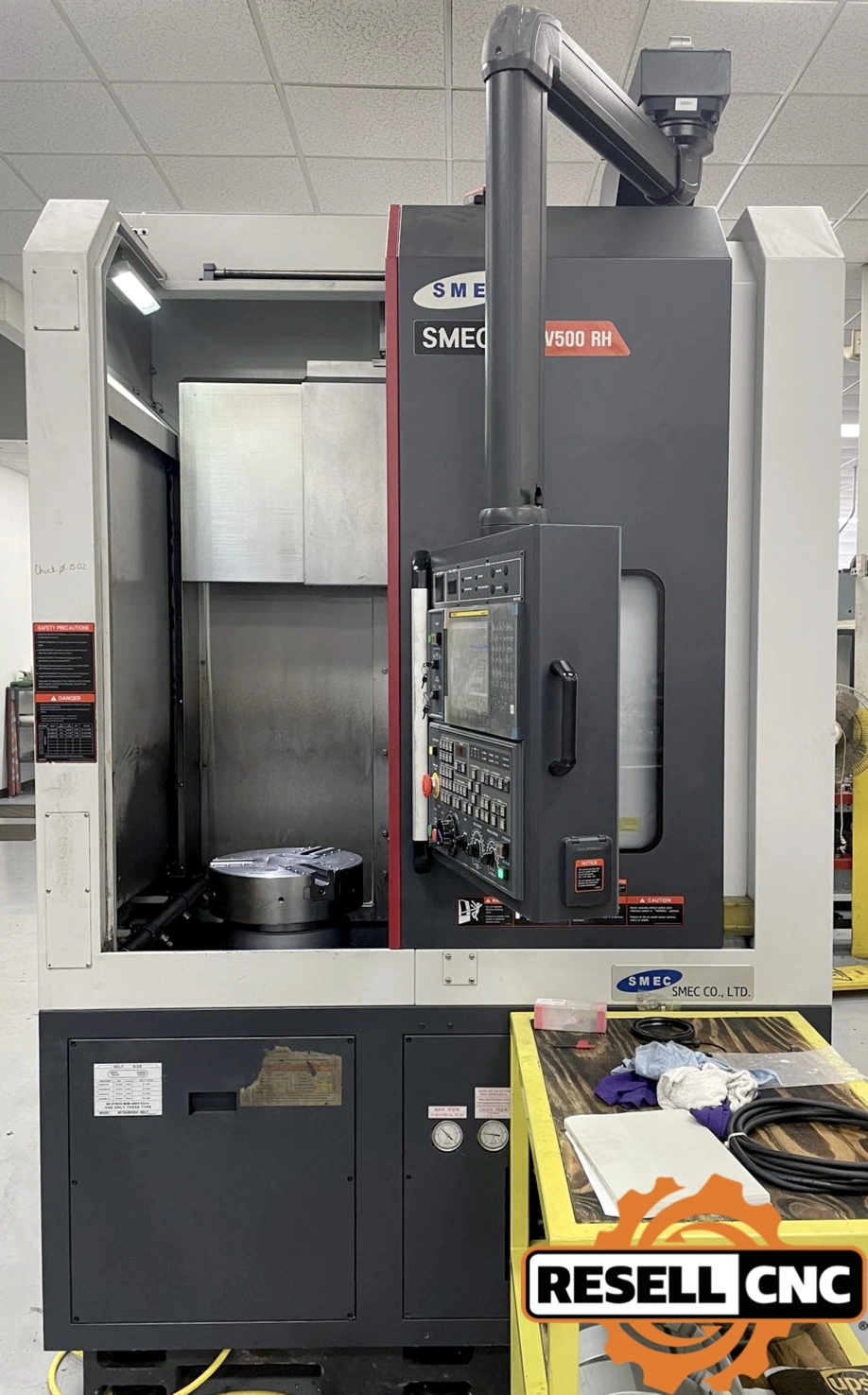

USED 2020 SMEC SLV500

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Shank Size:

- Square Tool: 1" x 1"

- Boring Bar: 2"



CR Machinery Chip Conveyor

Approx Weight And Dims Of Accessories: Machine Dims + Conveyor: 65.7" x 140" x 117.56"
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

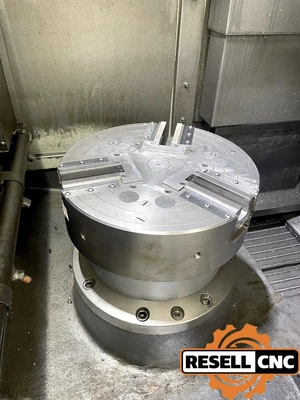

Chuck Description: 3-Jaw Chuck

Chuck Size: 15.0

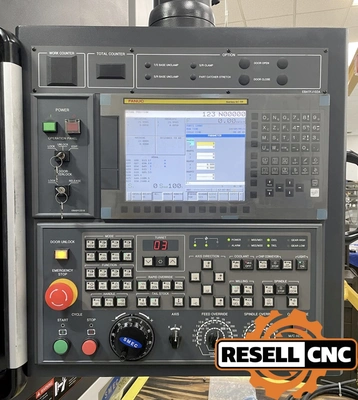

Control Make Model: Fanuc Oi-TF CNC Control
Coolant Type S: No Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Worklight
Max Cutting Turning Diameter: 19.69
Max Swing Over Bed: 27.56
Max Turning Cutting Length: 18.31
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.36
Spindle Motor: 30
Spindle Nose: A2-8
Spindle Speed: 3000.0
Sub Spindle: false
Tailstock: false

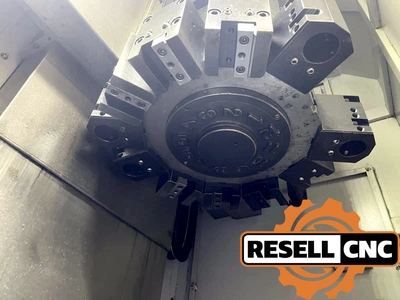

Tool Positions: 12.0

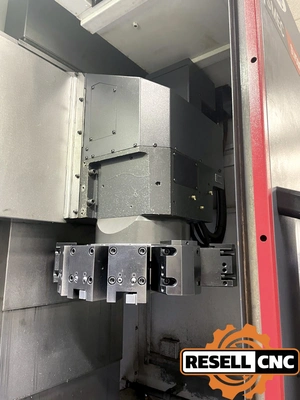

Turret Options: BMT65 Type

Twin Turret: false
X Travel: 12.48
Y Axis: false
Y Travel: 19.49
