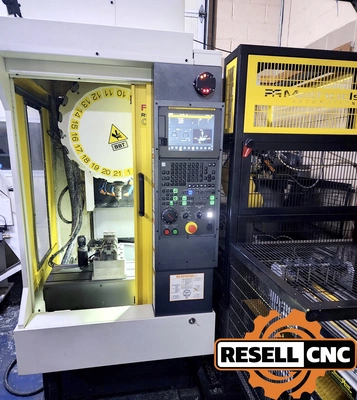

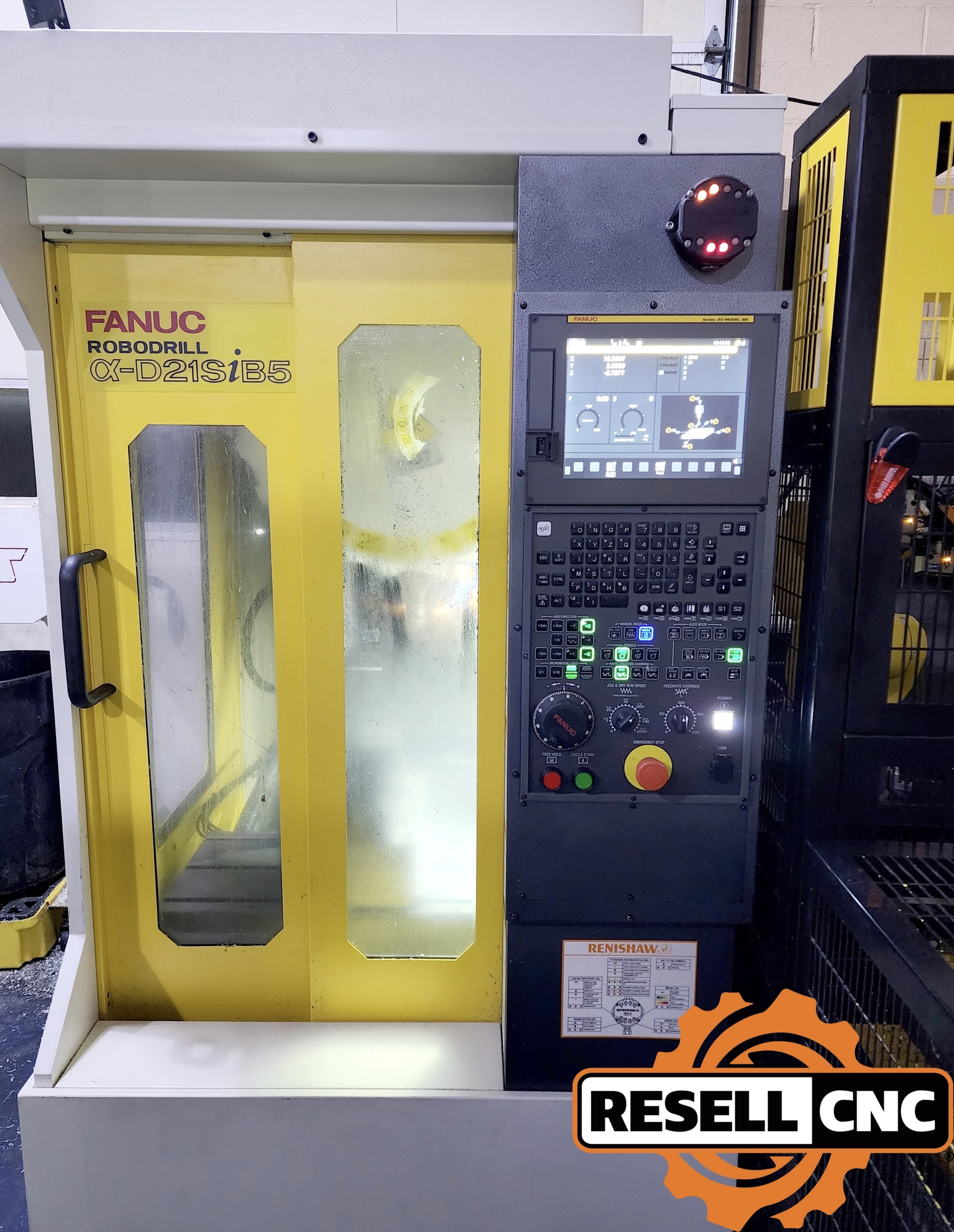

USED 2019 Fanuc Robodrill a-D21SiB5

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 2MB Standard Memory

4GB Fanuc Fast Data Server ATA Card (Flash Memory)

High Speed Processing

AICCII / 200 Block Look Ahead

1000 Block Look Ahead Expansion

Inverse Time Feed

Jerk Control

M-Code

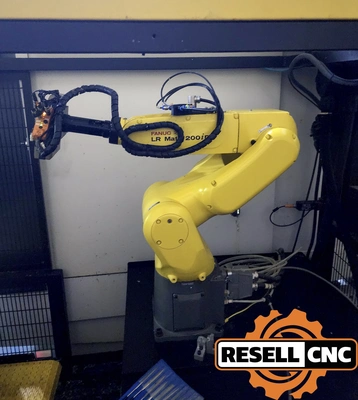

Additional Machine Specs: Fanuc LR Mate 200iD/7L Robot Arm

- Controlled Axis: 6

- Repeatability: ±0.0004"

- Reach: 35.87"

- Payload: 15.43 lbs

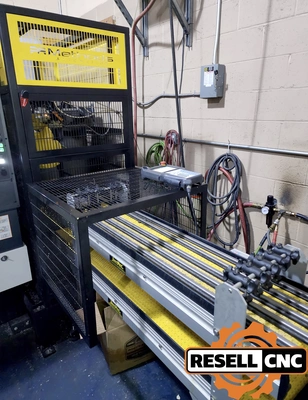

Methods JSC-Pro Infeed/Outfeed Conveyors:

- 60" x 12" Adjustable Speed Powered Top Infeed Conveyor
- 72" x 12" Adjustable Speed Powered Bottom Outfeed Conveyor


Automatic Right Side Door for Robot Integration

Renishaw RTS Tool Probe

Renishaw RMP400 Probe

LNS Turbo MH500 Chip Conveyor with Tank and Air Header

MistBuster 500 Complete Kit Short Bed

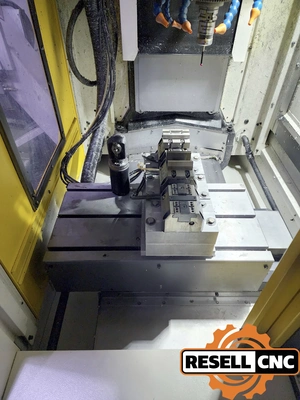

(4) Pneumatic Fixtures - Ported to Bulkhead, M-code Activated

(3) Schunk 100mm Pneumatic Vices

Spindle Air Blow

Table Air Blow

Bed Flush System

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 1.3
Control Make Model: Fanuc 31i-B5 CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, Tool Presetter, Tool Parts Probe, Mist Collector
Max Table Pallet Load: 440.0
Max Tool Diameter: 3.14
Max Tool Length: 7.4
Probe Make Model: Renishaw RMP400
Programmable Tailstock: false
Rapid Traverse: 2125
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 34.8
Spindle Nose To Table Top: 5.9-18.9
Spindle Speed: 24000.0
Spindle Taper Other: BBT-30 Big Plus
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false

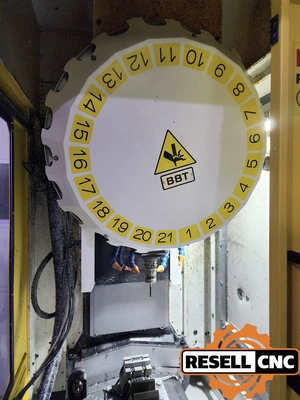

Tool Changer Type: Drum
Tool Change Time: 0.7
Tool Magazine Capacity: 21.0
Twin Turret: false
Vertical Table Pallet Size: 24.8" x 13
X Travel: 11.8
Y Axis: false
Y Travel: 11.8
Z Travel: 15.7
