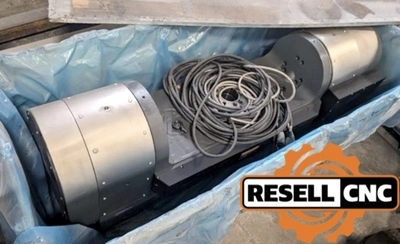

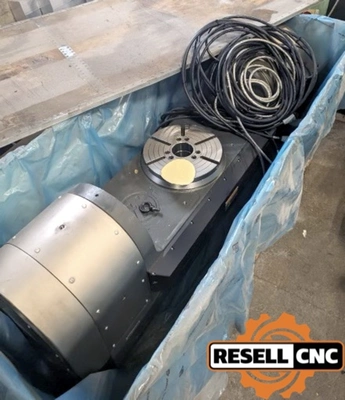

USED 2019 Haas TR-310

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Platter Diameter: 12.20”

Max. Weight on Platter: 500 lbs

Max. Part Swing: 31”

No. of Standard T-Slots: 6 @ 60°



Spindle - A (Tilt):

- Max. Speed: 50°/s

- Max. Torque: 300 ft-lbf

- Backlash: 30 arc-sec

- Gear Ratio: 72:1

- Timing: 3:1

- Brake Torque (@ 100 PSI / 6.9 bar): 1,000 ft-lbf



Indexing - A (Tilt):

- Max. Rotation/Step: ±120°

- Resolution: 0.001°

- Accuracy: ±15 arc-sec

- Repeatability: 10 arc-sec



Spindle - B (Rotary):

- Max. Speed: 50°/s

- Max. Torque: 300 ft-lbf

- Max. Runout: 0.0010"

- Backlash: 30 arc-sec

- Gear Ratio: 72:1

- Timing: 3:1

- Brake Torque (@ 100 PSI / 6.9 bar): 500 ft-lbf



Indexing - B (Rotary):

- Max. Rotation/Step (with Rotary Control): 999.999°

- Resolution: 0.001°

- Repeatability: 10 arc-sec



Equipped With:
- Sigma 5 Servomotor Drive

- 10" Top Reversible 3-Jaw Chuck

- Rotary Brake Booster

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis Trunnion
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
