X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:
- Y-Axis: 18.11"
- X2 Axis: 18.89"
- Y2 Axis: 18.11"
- Z2 Axis: 10.63"
MistBuster 850 Oil Filtration System
Spindle Chiller
Cutting Oil Chiller
Bar Capacity: 2.0
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor

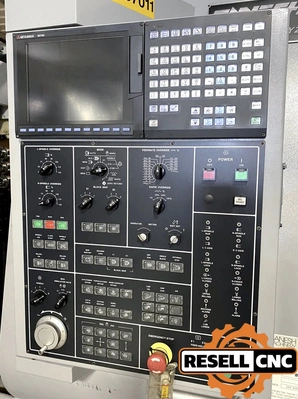

Control Make Model: Mitsubishi M700 CNC Control
Distance Between Centers: 9.84
Live Milling Hp: 5
Live Milling Max Rpm: 2,500
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Oil Filtration System, Parts Catcher, Oil Chiller
Max Cutting Turning Diameter: 2.008
Max Swing Over Bed: 2.01
Max Turning Cutting Length: 9.84
Programmable Tailstock: false
Second Bar Capacity: 2.08
Second Spindle Motor: 15
Second Spindle Speed: 6,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 36.0
Total Spindles: 2
Turret Options: B-Axis Live Tools:
- (6) Axial
- (6) Radial
Twin Turret: false
X Travel: 10.63
Y Axis: true
Z Travel: 9.84
