USED 2018 Keyence XM-T1200

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Measuring Range: 23.62" x 11.81" x 7.87"

Min. Display Unit Distance: 1µm

Min. Display Unit Angle: 0.0001°

Measurement Accuracy - Repeatability:

- Stage Locked: ±3µm

- Stage Unlocked: ±4µm

Measurement Accuracy - Indication Error:

- Stage Locked: ±8µm

- Stage Unlocked: ±(10 + L/100)µm

Stage Movable Range (X-Axis): ±3.94"

Stage Rotation Range: ±60°

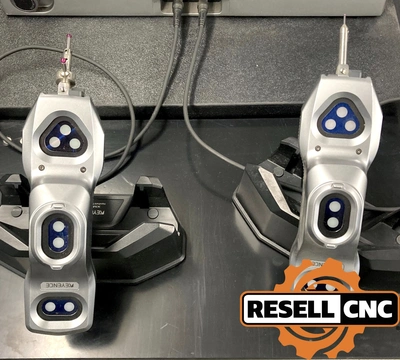

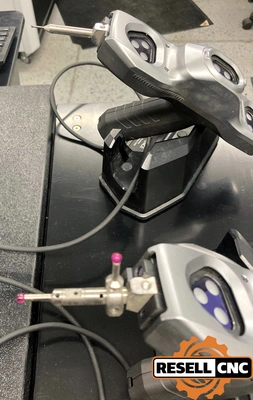

No. of Probes: 2

Probe Connection Port: 2 Inputs

No. of Stage Markers: 6

Marker Light Source: Near-Infrared LED (870 nm)



Console Input: Dedicated Console

External Remote - Non-Voltage Inputs: 2 (with + without Tangent Point)

Interface: 3 Ports - USB 2.0 Series A

Display: 15" LCD Monitor

Ambient Temperature: +10 to +35°C / 50 to 95°F

Relative Humidity: 20 to 80% RH (No Condensation)

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Workpiece Weight: 55.1
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 3.94
Y Axis: false
