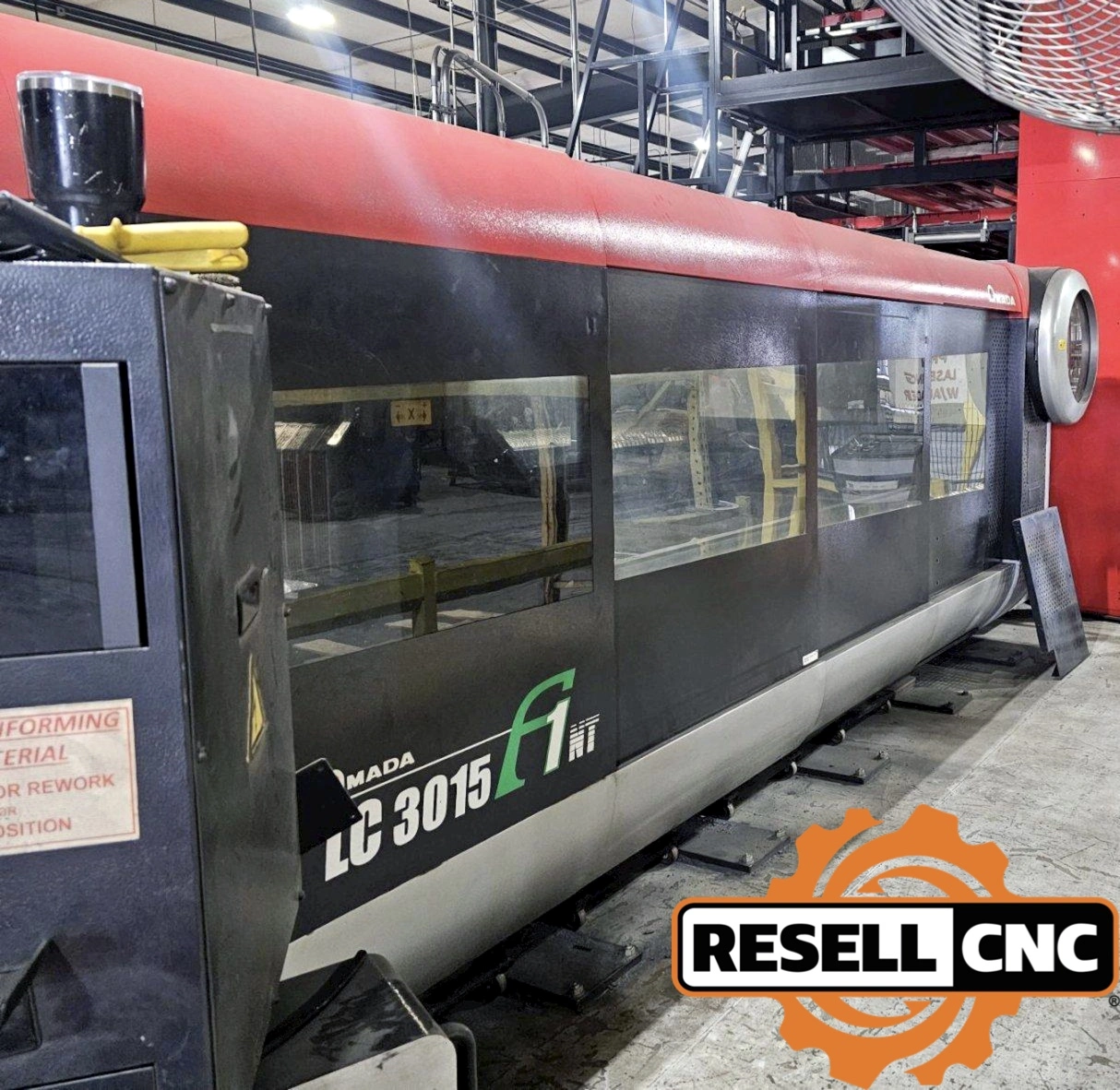

USED 2012 Amada LC3015F1 NT

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Max. Sheet Size: 120" x 60"

Max. Positioning Speed: 4,725 IPM

Max. Cutting Speed: 2,362 IPM

Repeatability: +/- 0.0002"



Max. Material Thickness:

- Mild Steel: 1.25"

- Stainless Steel: 0.75"

- Aluminum: 0.5"

Max. Working Material Weight: 2,028 Lbs



Equipped With:

Amada Tower FMS System

4000 Watt CO2 Fanuc Resonator

Dust Collector

Chiller

B Axis: false
C Axis: false

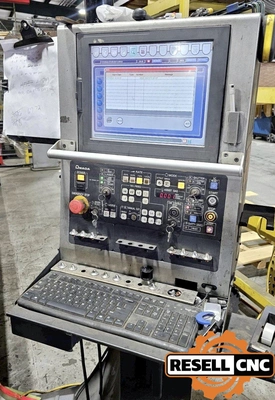

Control Make Model: Fanuc AMNC-F NT CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Number Of Pallets: 2.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 60" x 120
Watts: 4000.0
X Travel: 120.9
Y Axis: false
Y Travel: 61.0
Z Travel: 3.9
