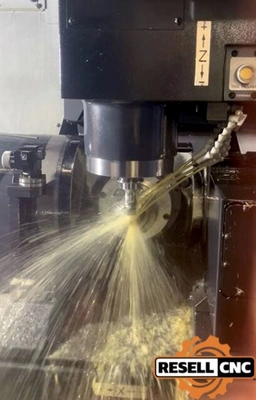

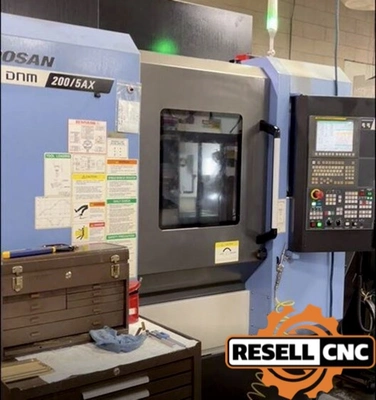

USED 2015 Doosan DNM200/5AX

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Bell Shaped Accel / Decel Before Look Ahead Interpolation

1024 Block Look Ahead Speed

3-Dimensional Tool Radius

AICC-II

Portable Hand Held MPG

Tool Life Management

Tool Load Monitoring

USB / Memory Card Slot

I/C Memory Card Interface

Additional Machine Specs: Travels:

- C-Axis: 360°

- A-Axis: +30° ~ -120°



LNS Chip Conveyor

(1) 10.57.85.00 Cutoff Tool Holder

Raptor Workholding Vises

Spindle Chiller Unit

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

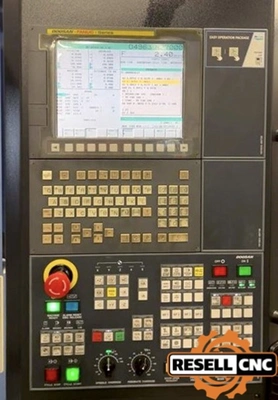

Control Make Model: Fanuc i Series CNC Control
Control Options: Color Monitor, Rigid Tapping, USB, Ethernet / LAN, Manual Pulse Generator / Pendant
Coolant Psi: 230.0
Coolant Type S: High Pressure Thru-Spindle Coolant
Cutting Feed Rate: 590.6
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe
Max Table Pallet Load: 132.0
Max Tool Diameter: 2.9
Max Tool Diameter Adjacent: 4.9
Max Tool Length: 11.8
Max Tool Weight: 17.6
Number Of Pallets: 1.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rapid Traverse: 1417
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 25
Spindle Nose To Table Top: 1.181-20.866
Spindle Speed: 12000.0
Spindle Taper Type: 40 Taper
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 40.0
Twin Turret: false
Vertical Table Pallet Size: 7.874
X Travel: 15.75
Y Axis: false
Y Travel: 17.13
Z Travel: 19.69
