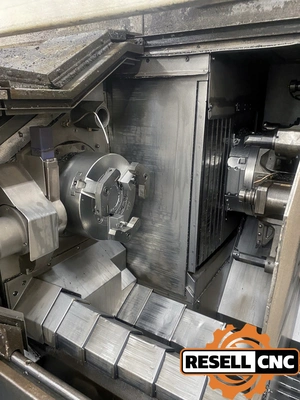

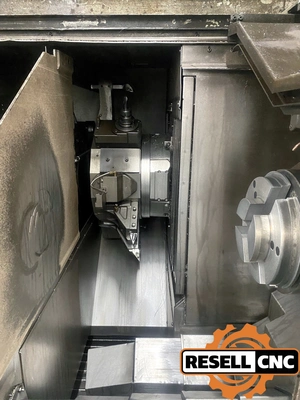

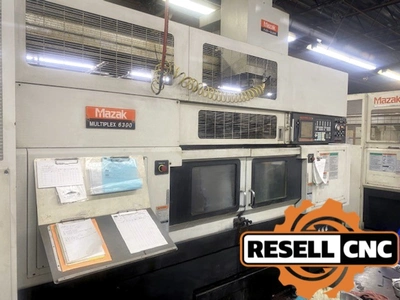

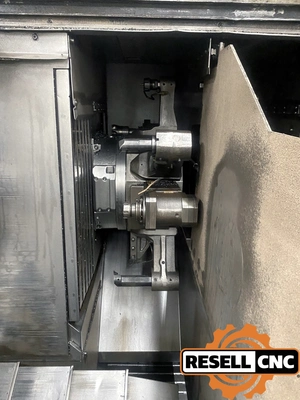

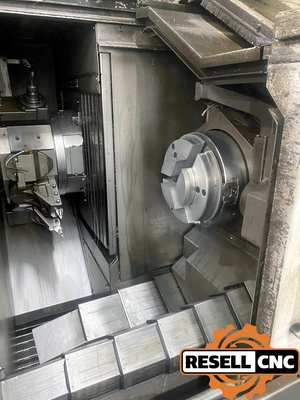

USED 2010 Mazak Multiplex 6300

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Control Options: Milling Spindle Synchronous Tapping

Additional Machine Specs: Travels:

- Y-Axis: +/-3"

- C-Axis: 0.001°



Automatic Tool Eye

Chuck Air Blast

Turret Air Blast

Air Blow for Work Transfer

Auto Pecking Cycle with Load Detection

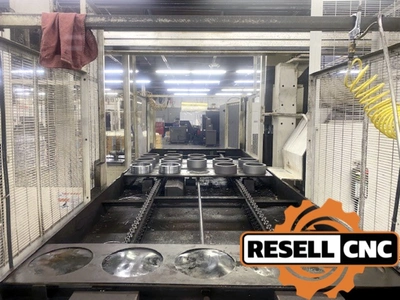

GL-200F Gantry Robot:

Pitch-Feed Type 3 / D2-Hand

Workpiece Type: Round Chuck Work

Gripping: 3-Jaw Centripetal

Max. Workpiece Dims.: 11.81" Dia. x 5.91" Length; 44 Lbs. x 2

Bar Capacity: 3.0
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 12.0

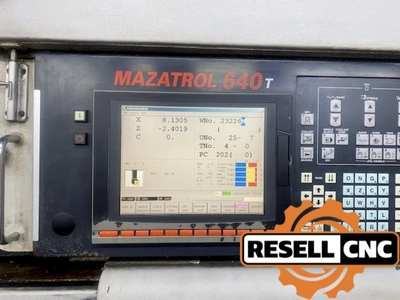

Control Make Model: Mazatrol PC Fusion 640T CNC Control
Control Options: Ethernet / LAN, Synchronized Tapping, EIA/ISO Code Input Function
Distance Between Centers: 57.09
Live Milling Hp: 10
Live Milling Max Rpm: 4,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Eye
Max Cutting Turning Diameter: 16.93
Max Swing Over Bed: 16.93
Max Turning Cutting Length: 25.59
Programmable Tailstock: false
Second Bar Capacity: 3.0
Second Chuck Size: 12.0
Second Spindle Bore: 3.46
Second Spindle Motor: 30
Second Spindle Nose: A2-8
Second Spindle Speed: 4,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.46
Spindle Motor: 30
Spindle Nose: A2-8
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Options: Turret Type: Dodecagonal/Drum Non-Lift

Tool Holder Shanks: Modified VDI

Turret Index Time (1 Step): 0.3 Sec.

Turning / Facing Tool Size: 1" x 1"

Max. Boring Bar Diameter: 2"

Twin Turret: true
X Travel: 12.2
Y Axis: true
Z Travel: 23.82
