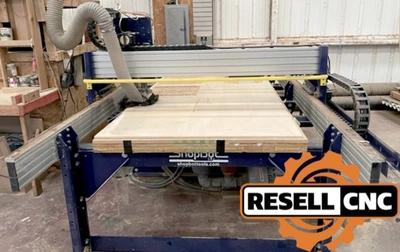

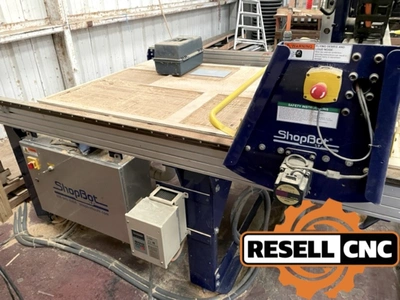

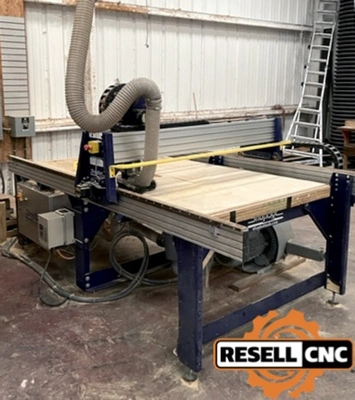

USED 2014 ShopBot PRSalpha 96-48

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Cut / Movement Area: 105" x 49" x 8"

Move Speed (with Full Cutting Force):

- X/Y: 720 IPM

- Z: 360 IPM

Positioning Speed:

- X/Y: 1800 IPM

- Z-Axis: 900 IPM

Step Resolution: 0.0004"

Linear Cutting Force: ~150 lbs @ 60 IPM

Drive System: Rack and Pinion



Equipped With:

HSD 4HP High Frequency Spindle

16.9HP Regen Blower

Router Bit Starter Kit

Dust Skirt

B Axis: false
C Axis: false
Electrical: 220V / 3-Phase
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Software: VCarve Pro ShopBot Edition

Spindle Motor: 5
Spindle Speed: 15000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 9.0
Twin Turret: false
Vertical Table Pallet Size: 96" x 48
X Travel: 96.0
Y Axis: false
Y Travel: 48.0
Z Travel: 5.0
