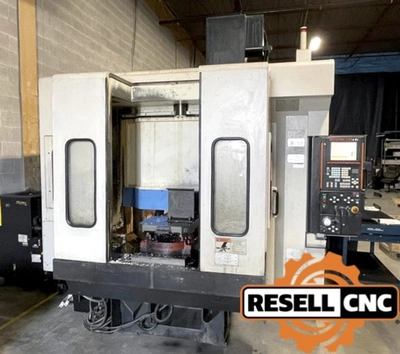

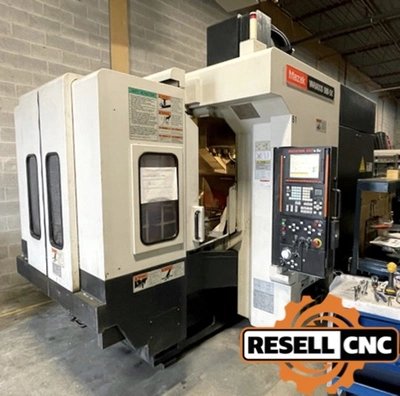

USED 2004 Mazak Variaxis 500-5X

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Spiral

EIA 3D Compensation

Geometric

Shape Compensation

Thread

Inverse Time

Dynamic Compensation

Comparison Stop

G00 Slope Constant

Variable 600 Sets

Navigation

EIA Herical Tap Cycle

Additional Machine Specs: Travels:

- A-Axis: -110° ~ +30°

- C-Axis: 360,000°

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 4.5

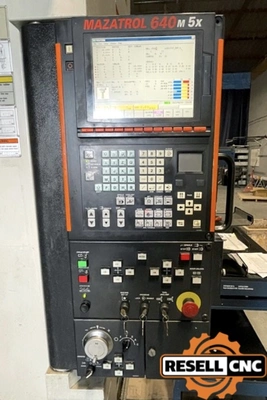

Control Make Model: Mazatrol 640M 5X CNC Control
Control Options: Helical Interpolation, High Speed Machining, Synchronized Tapping, Inch/Metric Conversion, Rotation and Scaling, EIA/ISO Code Input Function, Expanded Memory
Coolant Type S: Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe, Automatic Tool Length Measurement System
Max Table Pallet Load: 661.0
Max Tool Diameter: 3.5
Max Tool Diameter Adjacent: 4.92
Max Tool Length: 11.81
Max Tool Weight: 17.6
Number Of Pallets: 2.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false

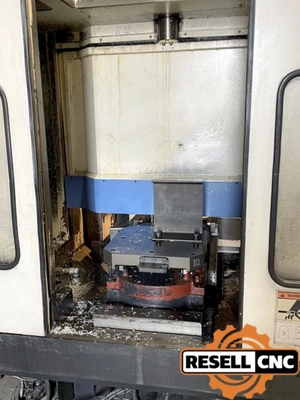

Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Spindle Nose To Table Top: 7.48-25.59
Spindle Speed: 12000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false

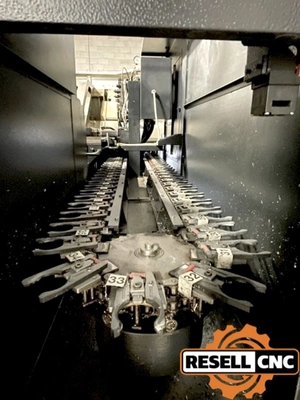

Tool Changer Type: Chain
Tool Magazine Capacity: 60.0
Twin Turret: false
Vertical Table Pallet Size: 19.69" x 15.75
X Travel: 20.08
Y Axis: false
Y Travel: 20.08
Z Travel: 18.11
