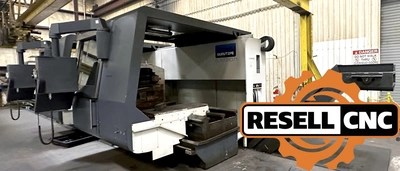

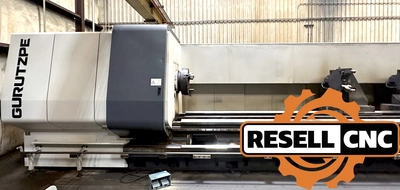

USED 2015 Gurutzpe GLX13.10.11

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 11" LCD Color Screen

Portable Manual Handwheel

Graphic Simulation

Drilling and Tapping Cycles

Profile Editor

Additional Machine Specs: Machine Specs:

- C-Axis Positioning: ±0.01°

- Bed Width: 42.32"

- Bed Height: 32.5"

- Center Height: 26"

- Swing Over Carriage: 41.33"

- Max. Workpiece Weight: 20,000 Lbs

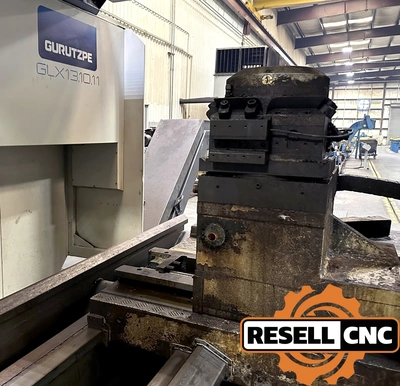

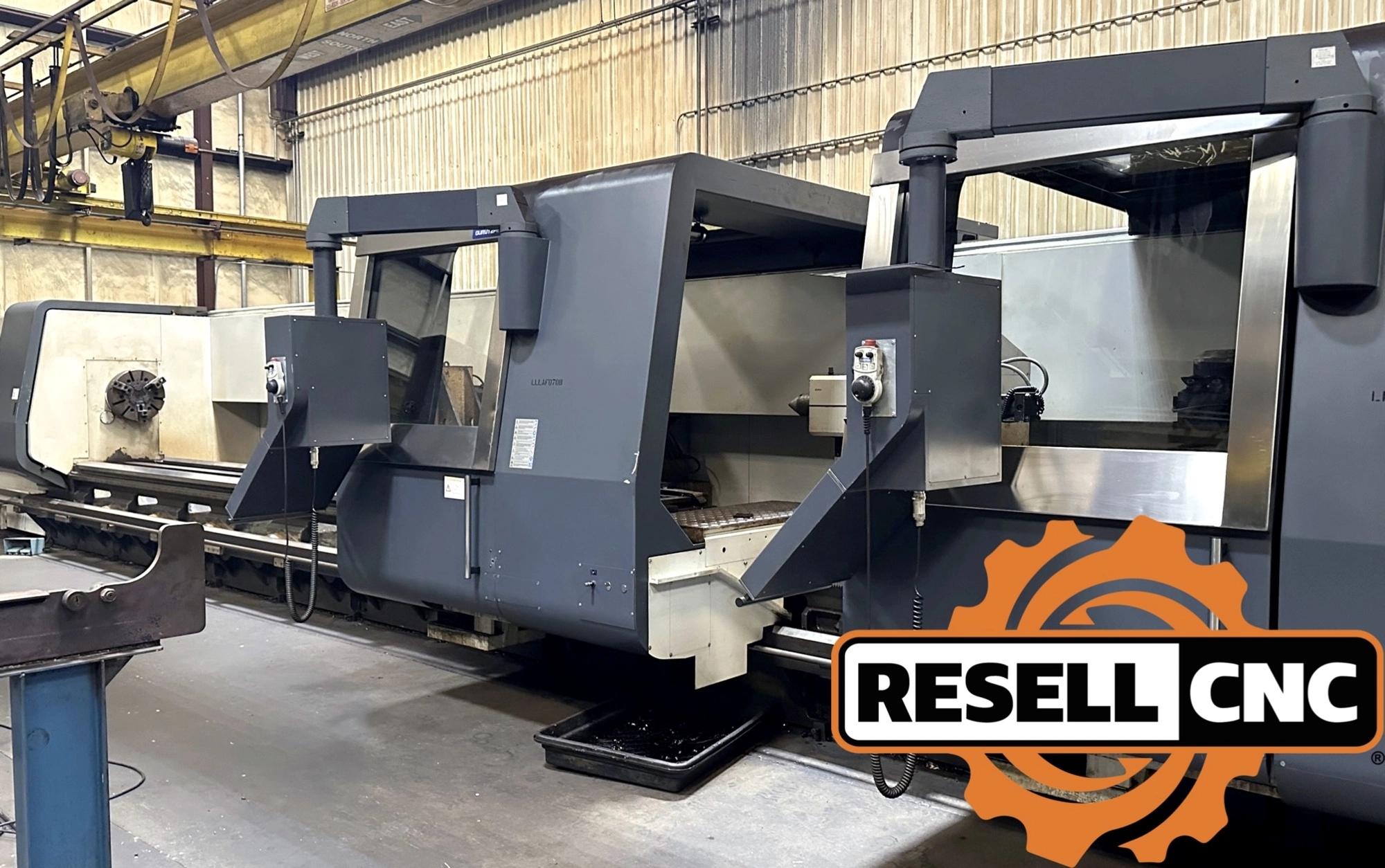

(2) Independant Carriages Move on Z-Axis - Equipped With:

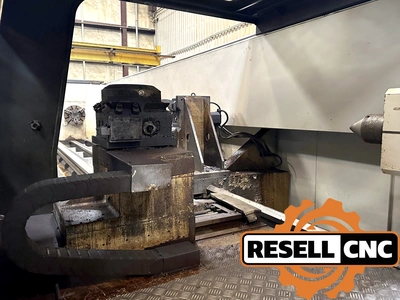

- Auto Square Turret with 4 Positions

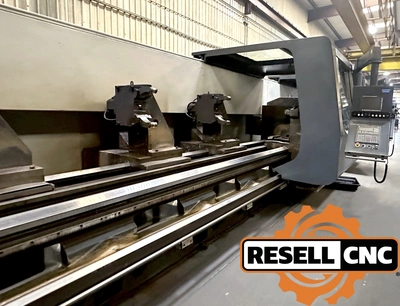

- SMW SLU-5 Hydraulic Steady Rest



Automatic Central Lubrication System for Spindle and Sideway

Automatic Clamping / Unclamping

Anchoring and Leveling Tools

6-Bar Piece Cooling System

CE Guard and Protections

(3) Total Steady Rests

Electrical Cabinet

Air Conditioning

Bar Capacity: 4.3
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

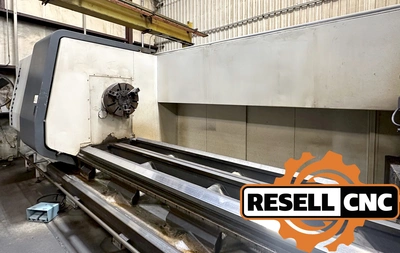

Chuck Description: SMW IN-D 500 3-Jaw

Chuck Size: 19.6
Chuck Type: Hydraulic

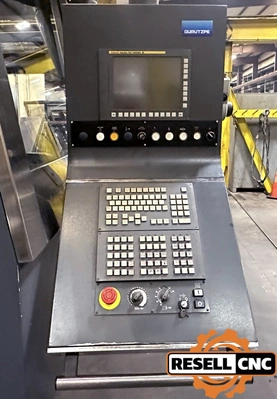

Control Make Model: Fanuc 31i-B CNC Control
Control Options: Color Monitor
Distance Between Centers: 590.0
Electrical: 440V/3ph/60Hz
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: All Available Manuals
Max Swing Over Bed: 53.14
Max Swing Over Saddle: 39.73
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.3
Spindle Motor: 102
Spindle Nose: A15
Spindle Speed: 800.0
Steadyrest Capacity: 12.2
Steadyrest Type: Hydraulic
Sub Spindle: false

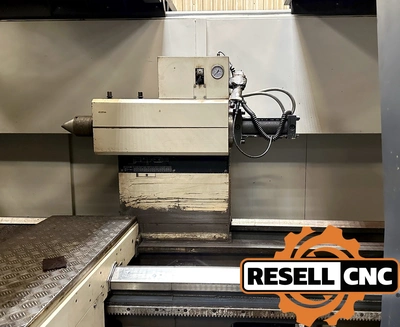

Tailstock: true
Tailstock Quill Diameter: 8.66
Tailstock Taper: 12
Tool Positions: 12.0
Total Spindles: 1
Twin Turret: true
X Travel: 22.8
Y Axis: false
