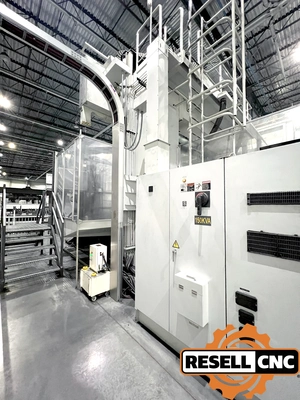

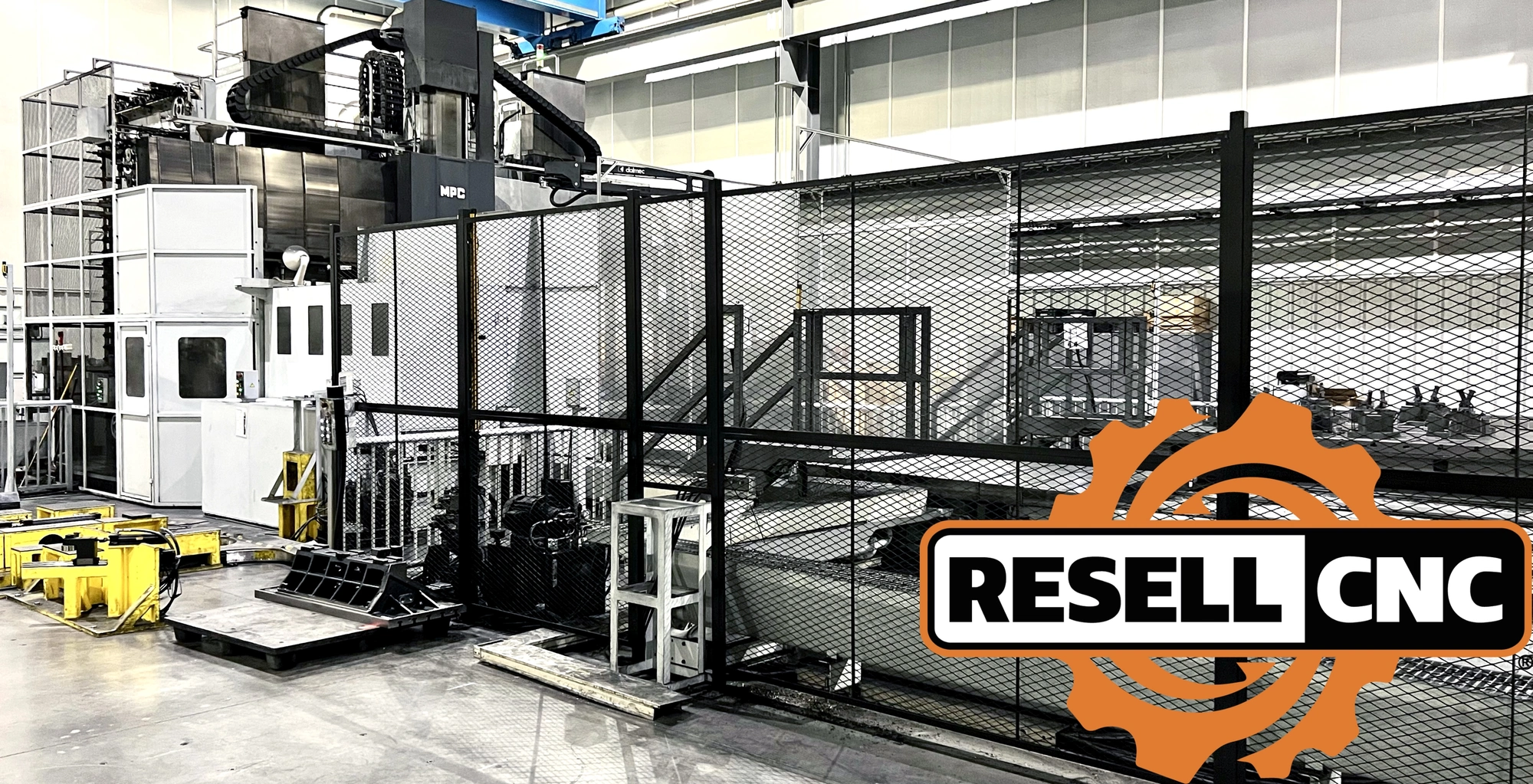

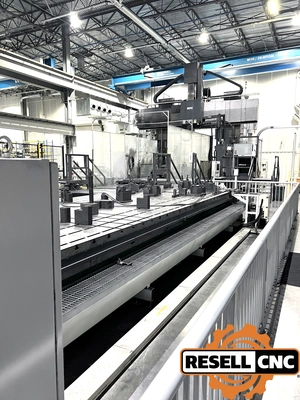

USED 2012 Toshiba MPC-3180B

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Vertical Movement of Crossrail (W-Axis): 63"

Max. Distance Between Columns: 122.0"

Right Angle Indexing Head: 72 Pos/5°

RAM Size: 14.9" x 14.9"

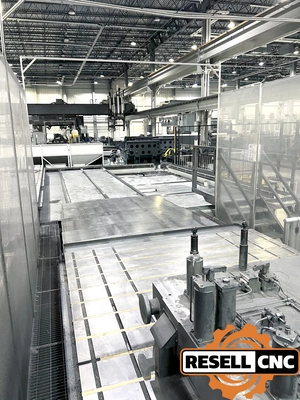

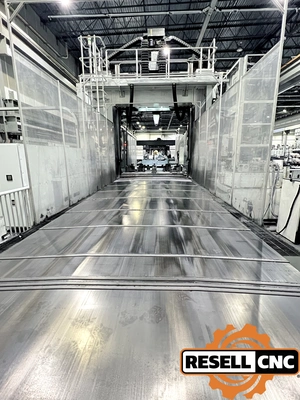

Dual Pallet Changer: (2) 315" x 106" Tables

Automatic Attachment Index (AAI)

4-Position Indexing by Every 90° 5-Face Cutter Head or Other Attachments

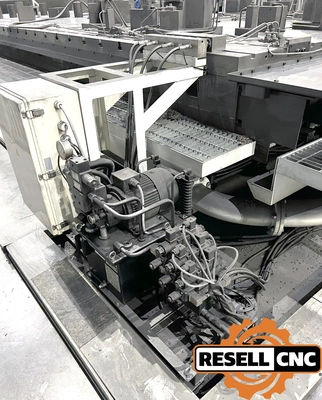

Hydraulic Crossrail Servo Balancing System

Hydraulic Ram Balancing Mechanism

Oil Mist Lubrication for Gears and Bearings

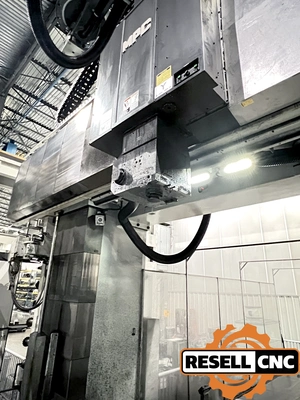

Spindle Ram Type

(2) Spindle Speed Ranges

Auto Tool Loader Device for Vertical or Horizontal Spindle

(3) Head Attachments:

- Snout 190 Head

- Small Angle Head

- 5 Face Cutter Head



Machine Height: 289"

Floor Space: 390" x 1,146"

B Axis: false
C Axis: false

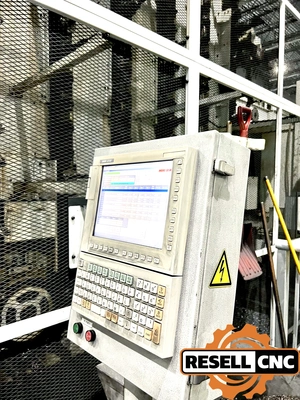

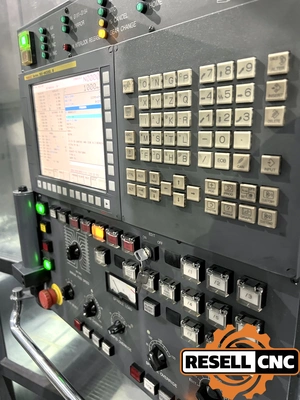

Control Make Model: Fanuc 30i-Model B CNC Control
Cutting Feed Rate: 2366.22
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 44092.0
Max Tool Diameter: 11.4
Max Tool Diameter Adjacent: 5.9
Max Tool Length: 23.6
Max Tool Weight: 66.0
Number Of Pallets: 2.0
Programmable Tailstock: false
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Nose To Table Top: 96.1
Spindle Speed: 3000.0
Spindle Taper Other: MAS BT50
Spindle Taper Type: BT50
Sub Spindle: false
Tailstock: false

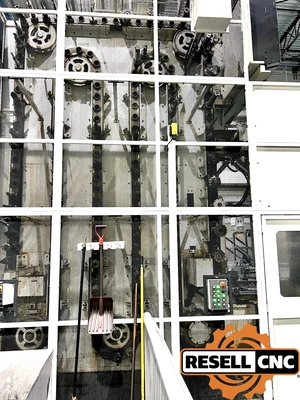

Tool Changer Type: Chain
Tool Magazine Capacity: 180.0
Twin Turret: false
Vertical Table Pallet Size: 315" x 106
X Travel: 354.33
Y Axis: false
Y Travel: 153.54
Z Travel: 35.43
